Axis Communications | 0437-001
Axis Q1602 indoor IP surveillance camera with Lightfinder technology, SD card slot, H.264, PoE and two-way audio
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
This product is discontinued, an alternative model is the Axis Q1615 Mk III
Overview of Axis Q1602 (0437-001)
The Axis Q1602 is an indoor network camera designed to provide security footage in extremely low-light environments. Axis’ unique Lightfinder technology increases light sensitivity in near-dark conditions, making it a perfect choice for premises which need to be monitored around the clock. When combined with infrared illumination, the camera can operate in total darkness, ensuring no event is missed regardless of light levels.
Integrated video analytics, including motion detection and audio detection, allow the camera to intelligently trigger events, while the Axis Camera Application Platform allows installers to add additional functionality such as video analytics to the camera on a per-camera basis. Remote back focus provides a means to adjust the lens focus remotely, helping to save time on installation.
The camera makes use of H.264 compression technology in order to reduce bandwidth strain, while an SD card slot provides an additional storage solution, allowing footage to be stored locally. The Q1602 can also be powered using Power over Ethernet, providing power and network connectivity using only one cable, helping to save on costs.
Please note: This camera does not come with a power supply. Please select one from the options above if required.
The Axis Q1602 is compatible with Axis’s free Camera Companion software, allowing viewing, playback and recording of HDTV-quality video onto SD cards, helping to save on storage devices such as DVRs. View live video feeds of up to 16 cameras on your mobile phone using downloadable apps for iPhone, iPad and Android devices.
Key features & benefits of Axis Q1602 (0437-001)
- Lightfinder technology makes the camera extremely sensitive in low-light conditions
- Day/night functionality using an infrared-cut filter allows for 24 hour monitoring
- Axis Camera Application Platform allows users to add camera functions on a per-camera basis
- On-board SD/SDHC card slot provides an alternative recording option, lowering bandwidth usage and system costs
- Automatic back-focus lets installers adjust the camera view from a remote location
- Two-way audio support allows communication between control rooms and cameras
Typical applications of Axis Q1602 (0437-001)
The Axis Q1602 can be used in a variety of indoor environments that need round-the-clock surveillance, including warehouses and storage rooms, school and university buildings, railway and bus stations, corporate offices and factory floors.
Accessories for Axis Q1602 (0437-001)
Included:
- Connector kit
- Installation guide
- CD with user manual
- Recording software
- Installation and management tools
- Windows decoder 1-user license
Back To Top
Key technical features for Axis Q1602 (0437-001)
Camera | |
| Environment: | indoor |
| Type: | fixed, box-type |
| Sensor: | 1/3” progressive scan CMOS sensor |
| Lens: | 2.8-8mm varifocal lens with 100 to 34° horizontal angle of view (F1.2) |
| Audio: | two-way with built-in microphone (AAC LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz) |
| Power: | Power over Ethernet (PoE) IEEE 802.3af Class 3 |
| Processor/memory: | ARTPEC-4, 256MB RAM, 128MB Flash |
Video | |
| Resolution: | 768x576 to 160x90 pixels |
| Compression: | H.264 and Motion JPEG |
| Frame rate: | 30 fps in all resolutions and compression formats |
| Day/night: | Automatically removable infrared-cut filter |
| Minimum illumination: | colour: 0.05 lux; B/W 0.008 lux (F1.2) |
| Video overlay: | text and image |
| Imaging: | shutter time – 1/59000 s to 2 s; settings - compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behaviour in low light, wide dynamic range - dynamic contrast |
Viewing, detection & recording | |
| Privacy masking: | yes |
| Alarm detection: | built-in motion detection, anti-tampering, audio detection, external input. Optional video analytics available through Axis Camera Application Platform |
| Intelligent video: | video motion detection, active tampering alarm, audio detection, support for Axis Camera Application Platform enabling installation of additional applications |
| External alarm inputs and outputs: | 1 input, 1 output |
| Alarm notifications: | file upload via FTP, HTTP and e-mail; notification by e-mail, HTTP and TCP; external output activation; video and audio recording to edge storage; pre- and post-alarm video buffering |
| Recording triggers: | manual; automatic – motion, anti-tampering, audio, external output activation |
| On-camera recording: | SD/SDHC memory card slot (card not included) |
Connections | |
| Power: | Power over Ethernet IEEE 802.3af |
| Network: | RJ-45 10BASE-T/100BASE-TX PoE |
| Alarm I/O: | connector block for 2 inputs and 2 output |
| Audio: | 3.5mm mic/line in, 3.5mm line out |
Other | |
| Dimensions: | 151 mm x 78 mm x 46 mm |
| Weight: | 0.6 kg |
| Colour: | black/grey |
| Warranty: | three years manufacturer's warranty |

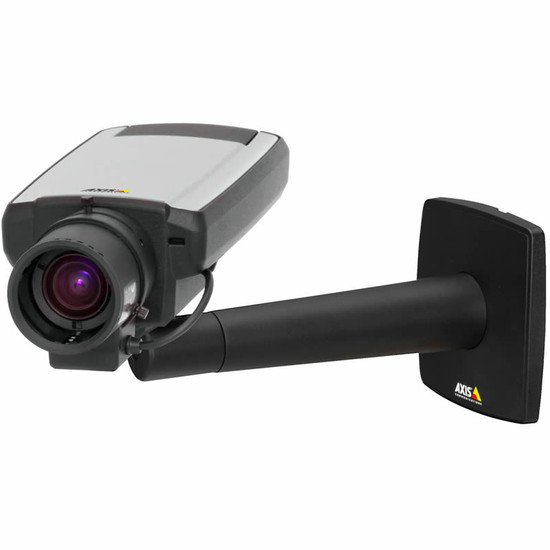

| Mounting methods: | wall, ceiling or desk using the included stand |
| Operating temperatures: | 0°C to 50°C |
| Power consumption: | max. 6.8W, PoE IEEE 802.3af Class 3 |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2C/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log |
| ONVIF compliant: | yes |
