| 0417-002

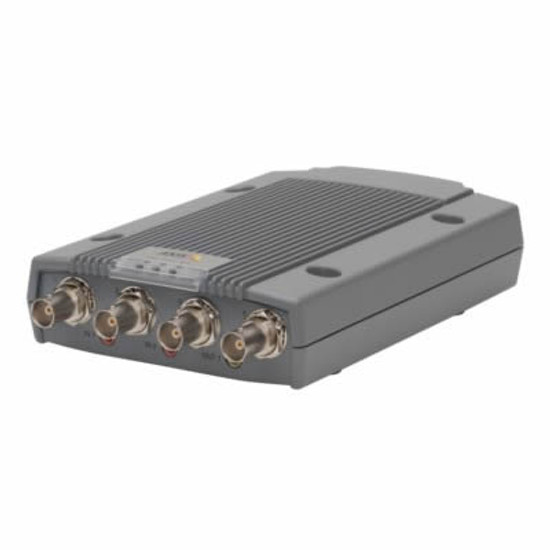

Axis P7214 network video encoder with 2-way audio, edge recording, H.264, tamper detection and PoE - 4 port

This product is discontinued. An alternative model is Axis P7304
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alternatives please see Network Video Encoders And Decoders

Overview of the Axis P7214 (0417-002)

The Axis P7214 network video encoder converts video from analogue security cameras for use on IP video networks, ideal for locations where significant investment has already been made into analogue CCTV. Up to four cameras can be encoded by the unit at full D1 resolution at 30fps. H.264 video compression is also available, reducing the bandwidth requirements to prevent video from impacting on the data network.

Recordings can be made directly on the device using a MicroSDHC memory card, lowering video bandwidth on the network and reducing system costs as no other recording devices are required. Tampering detection also ensures that downtime due to malicious attacks is kept to a minimum by alerting users if the camera is moved, spray painted or defocused.

Users can listen to events from the site as well as sending voice back using the unit's 2-way audio system, providing a means of interactive communication or a way to warn off intruders. Support is also available for PTZ cameras using the RS485/422 interface, allowing camera to be controlled from remote locations. Additionally, Power over Ethernet allows the unit to be powered through the Ethernet cable, making it quick and easy to install.

The Axis P7214 encoder is also compatible with Axis' free Companion software and allows you to view, record and export HDTV-quality footage to SD cards to help save on storage. Mobile phone viewing apps are available for iPhone, iPad and Android devices, allowing you to take your surveillance on the move.

Key features & benefits of the Axis P7214 (0417-002)

  • Convert analogue security equipment for use on IP networks, protecting previous investment
  • Encode up to 4 video feeds at the same time
  • Edge recording to MicroSDHC card lowers network traffic by storing video footage onto the device itself
  • Tamper detection software alerts users to downtime caused by spray-painting, defocusing or view-movement
  • H.264 compression maximizes hard drive capacity by compressing video by up to 80%
  • 2-way audio allows for interactive communication between viewers and the camera location
  • Pan-tilt-zoom cameras are supported, allowing camera views to be moved remotely
  • Power over Ethernet support reduces installation times as only a single cable needs to be run for both power and data

Typical applications of the Axis P7214 (0417-002)

The Axis P7214 is ideal for a variety of scenarios where analogue security equipment needs to be updated to use the benefits of IP in locations such as service stations, shops, schools, historic buildings, offices and workshops.

Accessories for the Axis P7214 (0417-002)


  • Power supply
  • Mounting and connector kits
  • Installation guide
  • CD with installation and management tools, software and user manual
  • Windows decoder user licenses
Back To Top

Key technical features for the Axis P7214 (0417-002)

Environment: indoors
Type: network video encoder
Input ports: 4
PTZ: support for control of a single pan-tilt-zoom camera using the RS485 and RS422 interface
Audio: 2-way, full duplex audio support (2x input, 1x output)
Power: 8-20V DC or IEEE802.3af Power over Ethernet (class 3)
Processor/memory: ARTPEC-4, 512 MB RAM, 128 MB Flash
Resolution: single: 176x120 to 720x576 pixels. Quad view: 176x120 to 1536x1152 pixels
Compression: support for MJPEG and H.264
Frame-rate: single: up to 25fps. Quad: up to 15fps
Video overlay: text message, clock and images
Imaging: aspect ratio correction, mirroring of images, enhanced de-interlace filter, video termination, anti-aliasing and temporal noise filtering
Viewing, detection & recording
Privacy masking: yes
Simultaneous users: 20
Alarm detection: motion detection, tampering detection, audio detection, external inputs and video loss
Intelligent video: intelligent tampering detection
External alarm inputs and outputs:4 configurable inputs/outputs
Alarm notifications: notification and upload via FTP, HTTP and email, external output activation, video and audio recording to edge storage, PTZ preset movement and audio clip playback
On-device recording: MicroSDHC memory card recording
Recording software included: Axis Camera Station One single-channel recording software
Compatible recording platforms (not included)
Software: Axis Camera Station, Milestone XProtect
Power: pin terminals for 8-20V DC
Network: 10/100Mbps RJ-45 Ethernet connection with IEEE 802.3af Power over Ethernet
Analogue inputs: 4x analogue composite video BNC inputs
Alarm I/O: terminal pins for 4x configurable input/output ports. RS485/422 terminal block for PTZ control
Audio: 2x 3.5mm audio input jacks, 1x 3.5mm audio output jack
Storage: MicroSDHC memory card slot
Dimensions: 37mm x 109mm x 172mm
Weight: 570g
Colour: grey
Warranty: 3 year manufacturer's warranty
Mounting methods: desk- or wall-mount
Operating temperatures:0~50°C (32~122°F)
Power consumption: 8W max
Dynamic DNS: yes, using Axiscam dynamic DNS service
Protocols supported: IPv4/v6, HTTP, HTTPS, IEEE 802.1X, QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
QoS: yes
Security: password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication and user access logging
ONVIF compliant: yes
