This product is now discontinued, it has been replaced by the Axis P3827-PVE

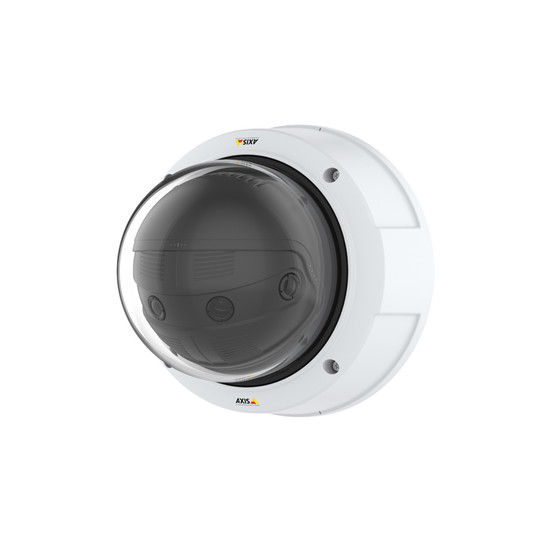

Overview of the Axis P3807-PVE
This high-performance Axis network camera comprises four sensor modules that together, deliver a seamless 180° panoramic overview in 8 megapixel resolution at full frame rate - 24 hours a day. Housed in a vandal-resistant and IP67-rated casing, the unit also features Axis' Zipstream technology, edge recording and simplified installation via Power-over-Ethernet (PoE).
Offering a 180° horizontal and 90° vertical field of view, the camera's four sensors can also be manually tilted up to 55° to achieve the desired viewing direction. For a complete 360° overview, users can mount two Axis P3807-PVE network cameras back-to-back using the Axis T94V01C Dual Camera Mount - ideal for monitoring crowded areas such as amusement parks.
Forensic WDR is supported, enabling details in high-contrast scenes to be viewed clearly. By ensuring details in both bright and dark areas are not lost, objects and individuals can be more easily identified. The unit also can deliver full-colour viewing in ambient light extremes, using Axis' Lightfinder technology.
A range of configurable video motion detection and tampering alarms are supported to help provide reliable and accurate security monitoring. These alarms can be set to trigger recording to the onboard MicroSD card (not included) and also inform users of potential incidents in real time via email notification.
Axis' Zipstream technology recognises when there is no movement in the scene and lowers image quality, resulting in an overall reduction in bandwidth and storage requirements. Additionally, PoE support simplifies the installation process by delivering both power and network connectivity over a single cable.
Please note: there is no power supply included with this unit. It is power over ethernet capable.
Key features & benefits
- Multisensor IP camera features four lens modules to provide a seamless 180° overview
- Delivers 8 megapixel resolution at up to 30 frames per second, providing high-quality IP CCTV footage
- Sensors can be manually tilted up to 55° to achieve the desired viewing direction
- True day/night functionality with integrated IR-cut filter provides round-the-clock surveillance
- Robust, IK10 and IP67-rated housing makes the camera suitable for use in exposed outdoor areas
- Forensic WDR enables details in high-contrast scenes to be viewed clearly
- Improved performance in low light conditions with Axis Lightfinder technology
- Enhanced security monitoring with a range of configurable video motion detection and tampering alarms
- A single IP address and only one network cable is required - offering a cost-effective alternative to the deployment of multiple IP cameras
- Axis' Zipstream technology lowers bandwidth and storage - whilst maintaining resolution and frame rate
- H.264 and MJPEG compression standards provide flexibility depending on requirements
- Local storage to MicroSD card (not included) provides a backup solution if the network fails
- Included mounting bracket to make installation quick and easy
- Support for PoE supplies power and network connectivity over a single cable
Compatible recording platforms
Typical applications
The Axis P3807-PVE multi-sensor network camera offers seamless 180° overviews in 8 megapixel resolution - making it an ideal choice for the observation of large areas such as museums, outdoor shopping centres and train station terminals.
Accessories
Included:
- Installation guide
- Windows decoder 1-user license
- Resistorx L-key
- Weathershield
- Mounting bracket
- Cable gasket
- Axis U-shape conduit adapter 30mm
Optional:
- PoE midspan
- MicroSD card
Mounting options
- Wall mounting - accessories included
- Ceiling mounting - accessories included
- Pole mounting - Axis T91B47
Key technical features of the Axis P3807-PVE
Camera |
|
| Environment: | outdoor (IP67, NEMA 4X-rated, IK10-rated) |
| Type: | fixed |
| Sensor: | 4 x 1/2.9" progressive scan RGB CMOS |
| Lens: | fixed 3.2 mm, F2.0 horizontal field of view: 180°, vertical field of view: 90°, M12 mount |
| Memory: | 1024 MB RAM, 512 MB Flash |
| Power: | Power-over-Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, Typical 7 W, max 12.9 W |
| Audio: | not given |
Video |
|
| Resolution: | 43200 x 1920 to 480 x 2700 |
| Compression: | H.264 (MPEG-4 Part 10/AVC) Baseline, main and high profiles Motion JPEG |
| Frame-rate: | 8.3 MP (client dewarp): up to 25/30 fps, 7.5 MP (dewarped): up to 15 fps |
| Bandwidth control: | 2 individually configurable streams in H.264 and Motion JPEG, Axis Zipstream technology in H.264, controllable frame rate and bandwidth VBR/MBR H.264 |
| Video overlay: | text and image |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: | colour: 0.17 lux, B/W: 0.05 lux |
| Imaging: | saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, compression, dynamic text and image overlay, exposure control, noise reduction, fine tuning of behaviour at low light |
Viewing, detection & recording |
|
| Privacy masking: | yes |
| Number of users: | not given |
| Alarm detection: | AXIS Video Motion Detection, active tampering alarm, support for AXIS Camera Application Platform enabling installation of third-party applications, Axis Perimeter Defender, Axis Motion Guard, Axis Fence Guard, Axis Loitering Guard |
| Alarm action: | day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap, file upload: FTP, SFTP, HTTP, HTTPS network share, email, notification: email, HTTP, HTTPS, TCP |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | support for microSD/microSDHC/microSDXC card |
| Direct-to-NAS storage: | yes |
| Recording software included: | not given |
Connections |
|
| Network: | RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
Other |
|
| Dimensions: | without weathershield: 166 mm (H) x 198 mm (W), with weathershield: 166 mm (H) x 206 mm (W) |
| Weight: | 2.0 kg |
| Warranty: | 5 years |
| Mounting methods: | mounting bracket included |
| Operating temperatures: | –30°C to 50°C |
| Power consumption: | max. 12.9W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralised certificate management |
| ONVIF compliant: | yes, Profile S and Profile G |
