Axis Communications | 01811-001

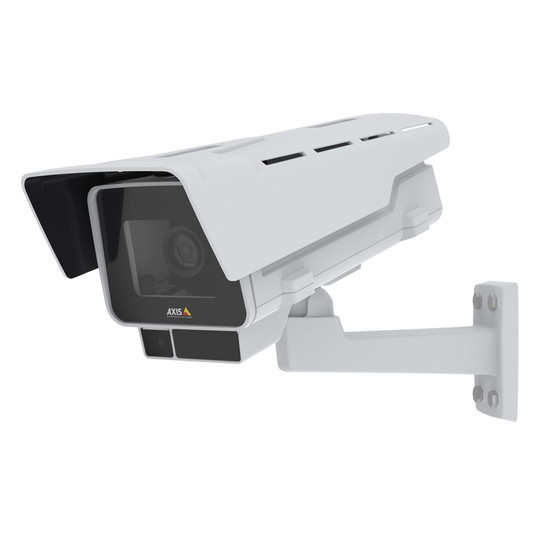

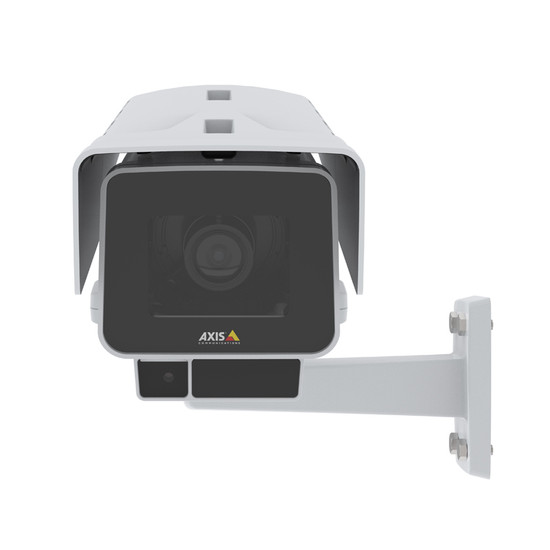

Axis P1378-LE outdoor 4K IP camera with i-CS mount lens, up to 50m OptimisedIR, Lightfinder, Forensic WDR and PoE
This product is discontinued. The replacement model is
Axis P1388-LE.
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
With up to 50m OptimisedIR illumination and 4K UHD resolution, this outdoor-ready fixed bullet provides a reliable round-the-clock monitoring solution for exposed outdoor areas. It features an i-CS lens and Axis imaging technologies.
- 4K Ultra HD resolution
- Varifocal lens: 115°-45° viewing angle
- OptimisedIR: up to 50m range of reach
- EIS offsets the effects of camera movement
- Lightfinder & Forensic WDR improve imaging
- Axis 5-year warranty
This model is now discontinued, it is replaced by the Axis P1388-LE outdoor varifocal box IR camera
Overview of the Axis P1378-LE
This outdoor-ready IP camera is part of the Axis P13 series and delivers 4k resolution at full frame rate, as well as offering support for both CS and intelligent CS-mount lenses (i-CS). Its IK10-rated housing, combined with support for true day/night recording and integrated infrared (IR) illumination, provides a durable round-the-clock monitoring solution for exposed outdoor areas. In addition, using a range of Axis’ advanced imaging technologies, this unit can capture clear video footage even in challenging light conditions.
This innovative CS-mount IP camera is supplied with a varifocal, intelligent CS-mount (i-CS) lens which provides wide horizontal viewing angles and allows optimum scene coverage to be set during installation. The i-CS mount lens also helps to simply set up by directly exchanging information with the camera such as zoom position, focus and iris opening -thanks to an open protocol. It also features several integrated motors that enable remote control of lens settings - making fine-tuning during installation a simple task.
Integrated IR LEDs extend the camera’s night vision range up to 50m, whilst Axis' OptimisedIR technology ensures an evenly illuminated image by automatically adapting the angle of illumination to the zoom level set. Forensic WDR ensures the capture of details in high-contrast scenes and Axis’ Lightfinder technology provides full colour viewing in ambient light extremes. Additionally, if the camera is subject to vibrations, Axis' Electronic Image Stabilisation (EIS) technology ensures video is smooth and steady despite camera movement.
Configurable video motion detection alarms can be set to send alerts of activity to the user via email notification; and when used in conjunction with Axis Guard Suite analytics, these alerts can prompt certain tasks such as digitally moving to a pre-set location within the field of view. Users can also take advantage of the ability to listen to activity happening close to the camera when a microphone (not included) is connected through the integrated I/O ports.
With support for Power-over-Ethernet (PoE), the camera is supplied with both power and network connectivity via a single cable – simplifying installation. Axis’ Zipstream technology helps to lower bandwidth and storage levels by an average of up to 50%. It optimises the video stream in real-time, allowing important details to be retained while unnecessary data is removed. Additionally, this model includes a range of handy features to assist in the prevention of unauthorised access. Signed firmware and secure boot also help to ensure the integrity and authenticity of the camera's firmware.
Please note: there is no power supply included with this unit. It is power over ethernet capable.
Key features & benefits
- Delivers 4K resolution video at full frame rate, providing detail-packed IP CCTV footage
- True day/night functionality with integrated IR-cut filter provides round-the-clock CCTV surveillance
- Innovative mechanical platform with built-in camera rails offers the flexibility to fit larger zoom lenses
- IP67-rated, vandal-resistant housing allows the unit to be safely deployed in exposed outdoor areas
- Intelligent CS-mount varifocal lens allows optimum scene coverage to be set during installation
- Varifocal lens (3.9mm - 10mm) offers horizontal viewing angles from 45° to 115°
- Pre-loaded with a range of advanced security functionalities to help increase the cyber defence
- Up to 8 sections of the original image can be cropped and viewed simultaneously using multi-view streaming
- Forensic WDR enables details in scenes with both bright and dark areas to be viewed clearly
- Improved performance in low light conditions with Axis Lightfinder technology
- EIS technology offsets the effect of camera movement by ensuring video is clear and not blurred
- Narrow scenes are monitored effectively using Axis Corridor Format that vertically orientates the video stream
- Alarm signalling is enhanced when external alarm sources are connected via I/O ports
- Configurable video motion detection alarms notify users of activity and enhance security monitoring
- Shock Detection functionality alerts operators to potential vandalism attempts
- Axis' Zipstream technology lowers bandwidth by analysing and optimising the video stream in real-time
- Edge recording to SD card (not included) provides a data backup in the event of network failure
- Support for PoE reduces cabling by delivering both power and network connectivity via a single cable
Typical applications
The Axis P1378-LE IP camera with i-CS mount lens delivers reliable, 24-hour monitoring of exposed outdoor locations in 4K resolution. Offering enhanced security features, typical applications include airports, transit terminals and university grounds.
Accessories
Included:
- Installation guide
- Windows decoder 1-user license
- Wall mount bracket
- Sunshield
- Connector kit IK10 tool
- Resistorx L-key TR20
- Torx T20 screwdriver
- Torx T30 screw bit
- Axis P13 Weathershield Kit A
- Pre-mounted Axis Fixed box IR illuminator Kit A
Optional:
- MicroSD card
- PoE midspan
Mounting options
-
- Wall mounting - accessories included
- Pole mounting - Axis T91B47
- Parapet mounting - Axis T99A12
Back To Top
Key technical features of the P1378-LE
Camera |
|
| Environment: | outdoor |
| Sensor: | 1/2” progressive scan RGB CMOS |
| Lens: | IR corrected, CS-mount lens, P-Iris, varifocal 3.9–10 mm, F1.5, horizontal field of view: 115° - ;45°, vertical field of view: 61° - ;25 |
| Memory: | 2 GB RAM, 512 MB Flash |
| Power: | 12–28 V DC, max 19.9W, typical 11.1W Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 2 Class 4, max 20.7W, typical 11.7W, with disabled IR: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 12.95W, typical 6.7W Power redundancy |
| Audio: | two-way, full duplex |
Video |
|
| Resolution: | 3840x2160 (4K) to 160x90 |
| Compression: | H.264 (MPEG-4 Part 10/AVC) Baseline, main and high profiles H.265 (MPEG-H Part 2/HEVC), motion JPEG Controllable frame rate and bandwidth |
| Frame-rate: | 25/30 fps (50/60 Hz) in all resolutions |
| Bandwidth control: | multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
| Video overlay: | text and image |
| Day/night: | automatically removed infrared cut-filter, OptimisedIR with power-efficient, long-life 8750 nm IR LEDs range 50m or more, depending on scene |
| Minimum illumination: | 4K 25/30 fps with Forensic WDR and Lightfinder: colour: 0.15 lux, at 50 IRE F1.5, B/W: 0.03 lux, at 50 IRE F1.5 |
| Imaging: | saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including corridor format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilisation, barrel distortion correction, scene profiles: forensic, vivid, traffic overview |
Viewing, detection & recording |
|
| Privacy masking: | yes |
| Number of users: | not given |
| Alarm detection: | analytics, shock detection, open casing, edge storage events, supervised external input, audio level, time scheduled |
| Alarm action: | file upload: FTP, SFTP, HTTP, HTTPS, network share and email, notification: email, HTTP, HTTPS and TCP, external output activation, video recording to edge storage, play audio clip pre- and post-alarm video buffering PTZ preset, guard tour, overlay text Day/Night switching, Status LED activation, send SNMP trap |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | support for microSD/microSDHC/microSDXC card, support for SD card encryption |
| Direct-to-NAS storage: | yes |
| Recording software included: | Axis Camera Station, Axis Companion |
Connections |
|
| Network: | RJ45 10BASE-T/100BASE-TX/1000BASE-T |
| Power: | 12–28 V DC, max 19.9W, typical 11.1W Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 2 Class 4, max 20.7W, typical 11.7W, with disabled IR: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 12.95W, typical 6.7W Power redundancy |
| Connectors: | I/O: 6-pin 2.5 mm terminal block, for 2 supervised alarm inputs and 2 outputs RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block DC input, terminal block 3.5 mm mic/line in, 3.5 mm line out i-CS connector (compatible with P-Iris and DC-iris) |
| Video: | not given |
Other |
|
| Dimensions: | 404 x 159 x 168 mm |
| Weight: | 2.4kg |
| Warranty: | 5 years |
| Mounting methods: | wall mount (included) |
| Operating temperatures: | -40 °C to 60 °C |
| Power consumption: | max. 11.7W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| QoS: | yes |
| Security: | password protection, address filtering, HTTPSa encryption, IEEE 802.1X (EAP-TLS) a network access control, digest authentication, user access log, centralised certificate management, brute force delay protection, signed firmware, secure boot |
| ONVIF compliant: | yes |
