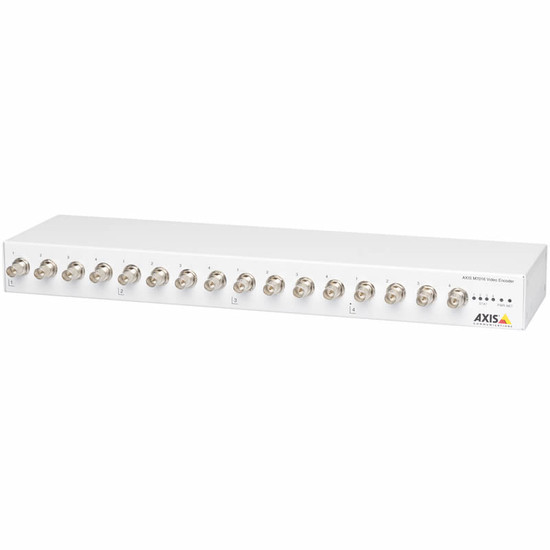

Axis M7016 video encoder with 16 channels, H.264 and Motion JPEG streams, edge storage and high resolution quad-view
This product is discontinued. An alternative model is
Axis M7116.
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
- High-resolution quad-view
- Support for up to 4 MicroSD cards
- Rack-mountable 16-channel encoder
This product is discontinued, an alternative model is the Axis M7116
Overview of the Axis M7016 0541-003
The Axis M7016 video encoder provides cost-effective and simple migration from analogue CCTV into an IP-based video system without needing to upgrade your existing cameras. This video encoder has support for 16 channels, enabling up to 16 analogue cameras to be migrated, ideal for small to medium sized CCTV systems. The M7016 encoder can deliver a H.264 and Motion JPEG stream simultaneously at 30 frames per second in resolutions up to D1, providing smooth video data.
PTZ control is supported by the M7016 so any pan-tilt-zoom feature on analogue cameras can be used. The Axis M7016 offers intelligent video capabilities such as active tampering alarm and video motion detection. 4 built-in SD card slots provide edge storage space, acting as a data backup in case of network failure when data cannot be transferred to a centralised device. H.264 compression reduces bandwidth and storage demands whilst maintaining high image quality.
The M7016 can either be used as a standalone unit or can be mounted in a 19 rack and comes with a power supply.
Key features & benefits
- 16 channel support makes this encoder ideal for small to medium size installations
- PTZ support for analog cameras
- Simultaneous H.264 and Motion JPEG streams per channel at full frame rate
- 4 memory card slots
- Can be used as a standalone unit or can be rack mounted in a 19" rack
- Single Ethernet port serves all 16 channels
- Video motion detection and active tampering alarm
- Comes with power supply
Compatible recording platforms
- Axis Camera Station
- Milestone XProtect
- Axis Companion application (free)
Typical applications
The Axis M7016 video encoder is suitable for small to medium sized analogue CCTV systems that are being migrated to IP-based video.
Accessories
Included:
- Power supply
- Mounting and connector kits (incl. 2 mount brackets and 4 rubber feet)
- Installation guide
- Installation and management software CD
- Windows decoder user licenses
Optional:
- MicroSD storage (please select from the accessories tab if required)
- Axis T8310 video surveillance control board
Key technical features for 0541-003 Axis M7016 video encoder
Unit | |
| Environment | indoor, 0°C ~ + 50°C (32°F ~ 122°F) |
| Power: | Axis PS-P power supply 12 V DC, 17 W |
| Memory: | 4x 512 MB RAM, 4x 128 MB Flash |
Video | |
| Resolution: | 176x120 to 720x576, 176x120 to 1536x1152 for quad view |
| PTZ: | wide range of analog PTZ cameras supported (drivers available for download at www.axis.com), support for one PTZ driver in each group of 4 channels, 100 presets/camera, guard tour, PTZ control queue, supports Windows compatible joysticks |
| Compression: | H.264 (MPEG-4 Part 10/AVC) baseline and main profile, Motion JPEG |
| Image settings: | compression, color, brightness, contrast, aspect ratio correction, mirroring of images, text and image overlay, privacy mask, enhanced deinterlace filter, video termination, anti-aliasing, temporal noise filtering, rotation: 90°, 180°, 270° |
| Frame-rate: | H.264: 30/25 (NTSC/PAL) fps, 15 fps in quad view in full resolution, Motion JPEG: 30/25 (NTSC/PAL) fps, 15 fps in quad view in full resolution |
Viewing, detection & recording | |
| Video streaming: | one individually configured H.264 and one Motion JPEG stream per channel at full frame rate, more streams if identical or limited in frame rate/resolution, controllable frame rate and bandwidth, VBR/CBR H.264 |
| Simultaneous users: | not given |
| Alarm trigger: | video motion detection, active tampering alarm, video loss |
| Alarm actions: | file upload: FTP, HTTP, network share and email, notification: email, HTTP and TCP, video recording to edge storage, pre- and post-alarm video buffering, PTZ preset |
| Card recording: | 4 x microSD/microSDHC/microSDXC slots supporting memory cards up to 64 GB (cards not included), support for recording to network share (network-attached storage or file server) |
| Bandwidth control: | controllable frame rate and bandwidth, VBR/CBR H.264 |
Connections | |
| Power: | Axis PS-P power supply 12 V DC, 17 W |
| Network: | 1 x 1000 Base TX Ethernet on RJ45 |

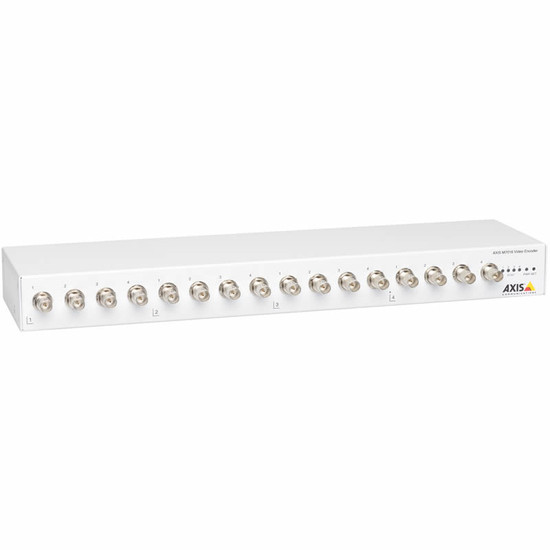

| Video: | 16 x analog composite video inputs (BNC) |

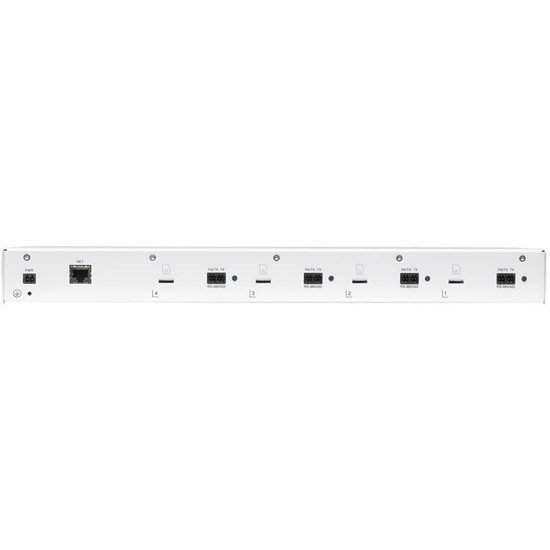

| Other: | 4 x terminal blocks for RS422/RS485 serial communication (full duplex), 1 x DC input terminal block |
Other | |
| Dimensions: | L482mm x W114mm x D44mm |
| Weight: | 1.85kg (net) |
| Casing: | metal casing |
| Warranty: | 5 years |
| Operating temperatures: | 0°C ~ + 50°C (32°F ~ 122°F), operating humidity 20% ~ 80% (non-condensing) |
| Power consumption: | 17W |
| Protocols supported: | IPv4/v6, HTTP, HTTPSa, IEEE 802.1Xa, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Security: | password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log |
| Software: | open API for software integration, including VAPIX«; specifications at www.axis.com, Axis Video Hosting System (AVHS) with one-click camera connection |
| ONVIF compliant: | yes, profile S |
| Mounting: | standalone, rackmount or wallmount |
