Axis M7014 Surveillance Kit - Axis M7014 video encoder and Axis Camera Station software with a 4-channel license
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
This product is now discontinued, an alternative is the Axis M7104
Overview of the Axis M7014 Surveillance Kit

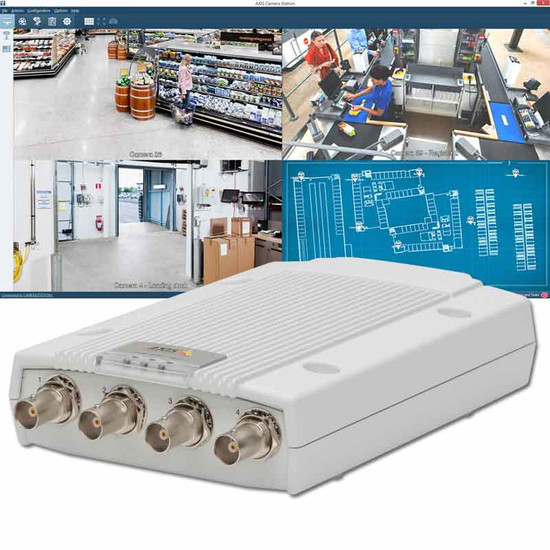

The Axis M7014 Surveillance Kit comprises one Axis M7014 video encoder and Axis Camera Station software with a 4-channel license.
The compact M7014 video encoder integrates up to 4 analogue cameras with IP networks and also has edge recording and Power over Ethernet (PoE) for quick installation. The intelligent tampering detection system alerts users if camera equipment is moved.
Axis Camera Station recording software enables viewing and recording of Axis IP cameras, either locally on the network or remotely across the internet. The software provides easy search facility and synchronised camera playback.
Using Axis Companion video management software with the Axis M7014 video encoder enables viewing, recording and playback of analogue CCTV cameras and recording to SD card. Mobile viewing support also provides handy remote access via iPad, iPhone and Android devices.
Key features & benefits
- Cost-effective and easy-to-use integration solution for CCTV systems to IP networks
- Edge recording minimises network traffic and lowers systems costs
- PoE enables fast and low-cost installation
- Axis Camera Station software enables access to cameras from anywhere
Typical Applications
The Axis M7014 Surveillance Kit is ideal for integrating up to 4 analogue cameras to an IP network. Typical examples could include doctors surgeries, small retail stores, offices and nurseries.
Included items
- Axis M7014 video encoder
- Axis Camera Station 4-base license
Key technical features for the Axis M7014
Camera | |
| Environment: | indoors |
| Type: | network video encoder |
| Input ports: | 4 |
| PTZ: | support for control of analogue pan-tilt-zoom cameras using the RS485 and RS422 interface |
Video | |
| Resolution: | single: 176x120 to 720x576. Quad view: 176x120 to 1536x1152 |
| Compression: | MJPEG and H.264 |
| Frame-rate: | up to 15fps in all resolutions and compression formats |
| Video overlay: | text message, clock and images |
| Imaging: | aspect ratio correction, anti-aliasing and temporal noise filtering |
Viewing, detection & recording | |
| Privacy masking: | yes |
| Simultaneous users: | 20 |
| Alarm detection: | motion detection, tampering alarm and video loss |
| Alarm notifications: | FTP, HTTP and email notification, PTZ preset and storage to MicroSDHC card |
| On-camera recording: | MicroSDHC card slot (card not included) |
| Recording software included: | Axis Camera Station One single-channel recording software |
Compatible recording platforms (not included) | |
| Software: | Axis Camera Station, Milestone XProtect |
Connections | |
| Power: | 2-pin connector for 8-20V DC |
| Network: | 10/100Mbps RJ-45 Ethernet connection with IEEE802.3af Power over Ethernet |
| Analogue inputs: | 4x 4 BNC inputs for analogue composite video feeds |
| Alarm I/O: | 2-pin RS-485/422 connection |
| Memory card: | MicroSDHC |
Other | |
| Dimensions: | 37mm x 109mm x 172mm |
| Weight: | 570g |
| Colour: | off-white |
| Warranty: | 3 years |
| Operating temperatures: | 0 ~ 50°C (32 ~ 122°F) |
| Power consumption: | 7W max |
| Dynamic DNS: | yes, using Axiscam.net dynamic DNS service |
| Protocols supported: | IPv4/v6, HTTP, HTTPS, IEEE 802.1X QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| QoS: | yes |
| Security: | Support for SSL encryption and IP address filtering. Multi-level password control |
| ONVIF compliant: | yes |
