Axis Communications | 0868-001
Axis M3105-LVE outdoor mini-dome with HD 1080p resolution, 15m IR, WDR - Forensic Capture & Zipstream
This product is discontinued. The replacement model is
Axis M3115-LVE.
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
This mini-dome IP camera by Axis is housed in an IK08-rated casing and features up to 15m of IR night-vision - making it suitable for use in exposed outdoor locations where reliable 24-hour monitoring is a necessity.
- Axis Forensic WDR improves image capture
- 3-axis mount for easy manual adjustment
- Up to 15m IR illumination
- Fixed lens: 115° viewing angle
- HD 1080p resolution
This product is now discontinued, for an alternative please see the Axis M3115-LVE

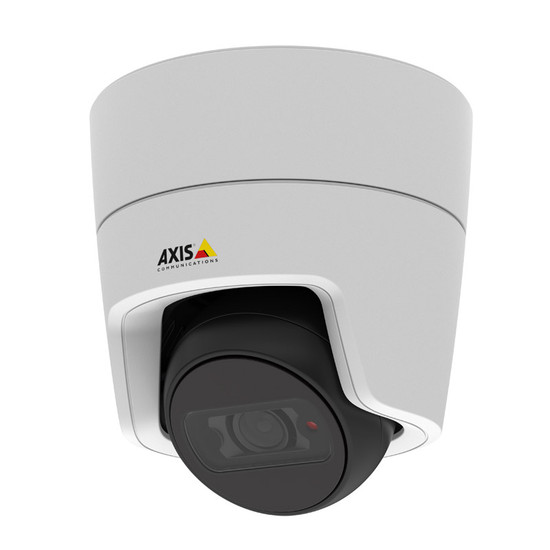

Overview of the Axis M3105-LVE
This Axis mini-dome is capable of delivering HD 1080p resolution images round the clock; with true day/night recording enhanced by integrated infrared (IR) illumination.
It features a flat-faced design that suppresses reflections and is housed in a vandal-resistant and adjustable outdoor-ready casing for flexible mounting in external locations. Additional features include Axis Zipstream technology, integrated MicroSD card storage and Power-over-Ethernet (PoE).
The built-in IR LED provides up to 15m of infrared illumination and the unit’s flat-faced design has been created by Axis to suppress light reflections – helping to maximise image clarity in low light. For improved imaging in a variety of lighting environments, wide dynamic range (WDR) – Forensic Capture lowers noise levels and increases the image signal to ensure all details are visible in both dark and bright areas. In addition, Axis Corridor Format allows viewing in narrow scenes to be optimised by rotating the sensor 90° - preventing the recording of redundant areas.
The free Axis Companion application can be easily installed and offers a simple video management solution for up to 16 cameras. Available as a PC client or mobile application for iOS and android devices, this handy software offers remote access to live views as well as playback of recordings.
Camera-based video motion detection and tampering alarms can be configured to inform users of activity via a choice of notifications including email. Motion detection alarms can also be set to trigger MicroSD card recording when using the Axis Companion mobile app.
Support for PoE helps to simplify installation and the unit’s handy 3-axis mount enables easy lens adjustment to achieve an optimum field of view during set up. Axis’ Zipstream technology is also supported and lowers bandwidth and storage requirements by an average of up to 50%, ensuring that important details in the image are retained in the video stream, while unnecessary data can be removed.
Please note: this camera does not come with a power supply. It is PoE-capable.
Key features & benefits
- Capable of delivering up to HD 1080p resolution at 25 fps, providing high quality CCTV footage
- True day/night functionality with integrated IR-cut filter provides round-the-clock surveillance
- Outdoor-ready housing is IK08-rated to provide protection in exposed areas
- Power efficient, built-in infrared LED provides up to 15m of night-vision
- Innovative flat-faced design reduces light reflections to improve images captured in low light
- WDR - Forensic Capture technology improves image quality in scenes with high contrast lighting
- Axis Corridor Format vertically orientates the video stream – allowing the field of view to be optimised for use in narrow scenes
- Free video management for up to 16 cameras using the Axis Companion application
- Configurable, camera-based video motion detection and tampering alarms help to enhance security monitoring
- Local recording to MicroSD card (not included) enables the unit to be used as a standalone system
- PoE supplies power and network connection over one cable for quick and cost-effective deployment
- 3-axis mount enables easy manual adjustment of the lens for quick set up
- Axis’ Zipstream technology optimises the video stream in real-time, lowering bandwidth and storage levels by up to 50%
Compatible recording platforms
- Axis Camera Station
- Milestone XProtect
- Axis Companion application (free)
- Morphean Cloud CCTV
Typical applications
The Axis M3105-LVE is a feature packed mini-dome offering HD 1080p resolution and improved imaging in low light. It’s an ideal solution for users requiring 24-hour CCTV surveillance in locations such as industrial units, goods delivery areas and car parks.
Accessories
Included:
- Installation Guide
- Windows decoder 1-user license
- Torx L-key
Optional:
- PoE midspan
- MicroSD card
Key technical features of the Axis M3105-LVE
Camera |
|
| Environment: | outdoor (IP66 and IK08 rated) |
| Type: | fixed mini dome |
| Sensor: | 1/2.8” progressive scan RGB CMOS |
| Lens: | M12 mount, fixed iris, fixed focus, 2.8 mm, F2.0, horizontal field of view: 115° |
| Audio: | not given |
| Power: | Power-over-Ethernet IEEE 802.3af/802.3at Type 1 Class 2, typical: 4.2 W, max: 6.2 W |
| Memory: | 512 MB RAM, 256 MB Flash |
Video |
|
| Resolution: | (1920 x 1080) to (176 x 120) |
| Compression: | H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG |
| Frame-rate: | 25 fps |
| Bandwidth control: | multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, Axis' Zipstream technology in H.264, VBR/MBR H.264 |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: | colour: 0.2 lux, b/w: 0.04 lux, 0 lux with IR illumination on, IR illumination: 15m |
| Digital zoom/PTZ | yes |
| Video overlay: | text and image |
| Imaging: | compression, colour, brightness, sharpness, contrast, white balance, exposure control, backlight compensation, wide dynamic range - Forensic Capture, rotation: 0°, 90°, 180°, 270°, mirroring of images, including Corridor Format |
Viewing, detection & recording |
|
| Privacy masking: | yes |
| Number of users: | not given |
| External alarm inputs and outputs | not given |
| Alarm detection: | AXIS Video Motion Detection 3, Active tampering alarm, support for AXIS Camera Application Platform enabling installation of AXIS Cross Line Detection and third-party applications |
| Alarm action: | notification: email, HTTP, HTTPS and TCP and SNMP trap, video recording to edge storage, send video clip, overlay text |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included), support for recording to dedicated network-attached storage (NAS) |
| Recording software supported: | Axis Companion Software, Axis Camera Station |
Connections |
|
| Power: | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2 |
| Network: | RJ45 10BASE-T/100BASE-TX PoE, max. 6.2W |
| Alarm I/O | not given |
Other |
|
| Dimensions: | Ø101mm x 94mm |
| Weight: | 0.38kg |
| Casing: | colour: white, IP66, NEMA 250 Type 4X and IK08-rated, ASA polymer casing |
| Warranty: | 3 year |
| Mounting methods: | ceiling, wall |
| Operating temperatures: | -30°C to 50°C |
| Power consumption: | max. 6.2W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log |
| ONVIF compliant: | yes, profile S |
