Axis Communications | 0805-003

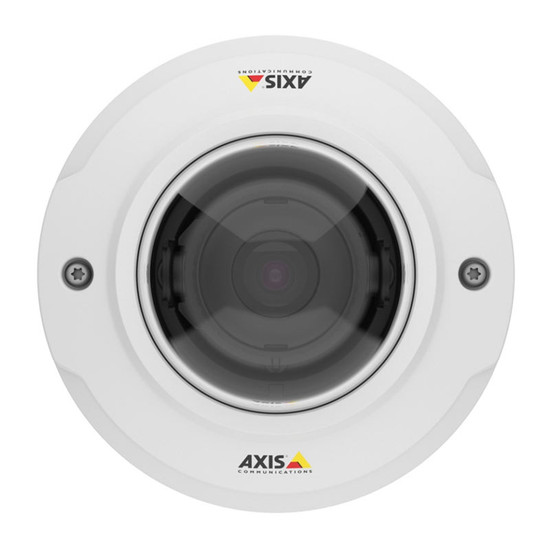

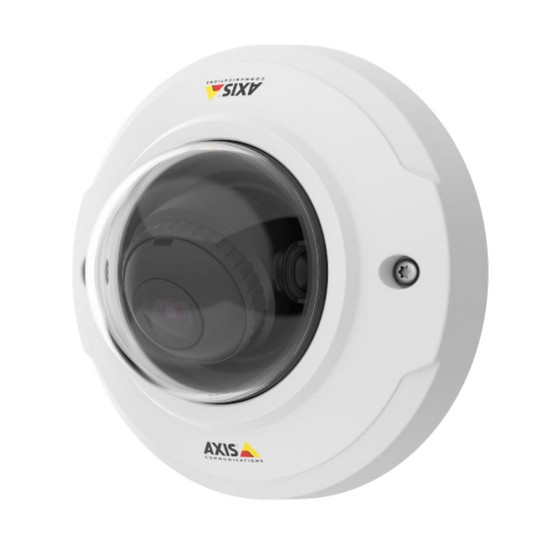

Axis M3045-WV indoor wireless vandal-resistant mini-dome with HD 1080p resolution, HDMI output, Zipstream and edge storage
This product is discontinued. An alternative model is
Axis M3085-V.
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Ideal for monitoring indoor areas where space for mounting is limited, this compact unit provides reliable monitoring - 24 hours a day. It can be easily connected to the network over wireless LAN or Ethernet.
- HDMI output included
- Improved imaging with WDR technology
- Simple network connection via wireless LAN
- Fixed lens: 106° viewing angle
- HD 1080p resolution
This product is discontinued, an alternative model is the Axis M3085-V
Overview of the Axis M3045-WV
Part of the best selling M30 series, this wireless mini-dome delivers smooth HD 1080p resolution at up to 25 frames per second (fps). Its compact form factor makes it ideal for unobtrusively monitoring indoor areas and is easily connected to the network over wireless LAN or Ethernet. Additional features include an HDMI output for live streaming to an HD monitor, Axis Zipstream technology and on-board MicroSD card storage.
Its wireless network interface supports a/b/g/n standards and delivers high performance, wide-range transmission. A popular choice for small business applications, this model offers flexible deployment options and also allows the camera’s location to be easily changed if required.
Wide dynamic range (WDR) technology renders details evenly in strongly backlit scenes to ensure objects and people can be identified clearly. Using Axis Corridor Format, users can vertically orientate the video stream to help maximise area coverage and reduce bandwidth when monitoring narrow scenes. In addition, digital pan/tilt/zoom controls allow areas of the original image to be examined in greater detail. These regions, in combination with the camera’s multi-streaming feature, allow specific areas to be cropped and streamed separately for live viewing or recording.
The camera’s ultra compact, palm-sized housing is IK08 rated – making it ideal for non-invasive installation in areas that are prone to tampering. It’s also factory-focused for simple set up and features a handy 3-axis mount design which allows the user to easily set the desired view.
Axis' Zipstream technology is included to help lower bandwidth and storage requirements. This advanced technology analyses and optimises the video stream in real time, recording interesting detail in high quality, whilst filtering other areas out to reduce bandwidth and storage use.
Users can install the Axis Companion application to provide a simple video management solution for up to 16 camera channels. This free software offers remote access to live views as well as playback of recordings and is available as a PC client or mobile application.
The camera offers a variety of configurable video motion detection and tampering alarms to help alert users of activity via a choice of notification methods including email. Motion detection alarms can also trigger recording when using the Axis Companion mobile app.
Key features & benefits
- Delivers full HD 1080p resolution at 25 frames per second for high quality surveillance
- Simple network connection over wireless LAN or Ethernet via the integrated RJ45 connector
- Wide Dynamic Range technology improves image quality in complex lighting conditions
- Axis Corridor Format vertically orientates the video stream – allowing the field of view to be optimised for monitoring narrow areas
- HDMI output supports the connection of an HD monitor for live footage display
- Vandal-resistant, compact housing offers an unobtrusive monitoring solution for indoor areas prone to tampering
- Factory focused lens and 3-axis mount design helps simplify installation
- Axis Zipstream technology lowers bandwidth and storage by retaining important image details and removing unnecessary data
- Simple video management for up to 16 cameras using the free Axis Companion application
- Video motion detection and tampering alarms can be configured for reliable CCTV monitoring
- Local storage to MicroSD card (not included) provides a handy standalone solution
Compatible recording platforms
- Axis Camera Station
- Milestone XProtect
- Axis Companion application (free)
Typical applications
The Axis M3045-WV wireless mini-dome is suitable for the high quality surveillance of indoor areas that can be subject to tampering attempts. This compact unit is a suitable choice for schools, waiting areas and independent retail stores.
Accessories
Included:
- Power supply
- Installation Guide
- Windows decoder 1-user license
- Torx L-key
Optional (select from accessories tab):
- MicroSD card
Key technical features of the Axis M3045-WV
Camera | |
| Environment: | indoor (IK08 rated) |
| Type: | fixed mini dome |
| Sensor: | 1/3” progressive scan RGB CMOS |
| Lens: | M12 mount, fixed iris, fixed focus, 2.8 mm, F2.0, horizontal field of view: 106° |
| Wireless: | internal antenna, IEEE 802.11 a/b/g/n, 2.4 and 5 GHz |
| Audio: | not given |
| Power: | 4.8 – 5.2 V DC, typical 2.7 W, max. 3.1 W |
| Memory: | 512 MB RAM, 256 MB Flash |
Video |
|
| Resolution: | (1920 x 1080) to (320 x 240) |
| Compression: | H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG |
| Frame-rate: | 25 fps |
| Bandwidth control: | multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, Axis' Zipstream technology in H.264, VBR/MBR H.264 |
| Day/night: | not given |
| Minimum illumination: | 0.25 lux at 50 IRE F2.0 |
| Digital zoom/PTZ | yes |
| Video overlay: | text and image |
| Imaging: | compression, colour, brightness, sharpness, contrast, white balance, exposure control, backlight compensation, wide dynamic range, rotation: 0°, 90°, 180°, 270°, mirroring of images, including Corridor Format |
| HDMI output: | HMDI 1080p @ 25 fps, HDMI 1080i @ 50 fps, HDMI 720p @ 50 fps, HDMI 720p @ 25 fps |
| Multi-view streaming: | up to 2 individually cropped out view areas in full frame rate |
Viewing, detection & recording |
|
| Privacy masking: | yes |
| Number of users: | not given |
| External alarm inputs and outputs | not given |
| Alarm detection: | AXIS Video Motion Detection 3, Active tampering alarm, support for AXIS Camera Application Platform enabling installation of AXIS Cross Line Detection and third-party applications |
| Alarm action: | file upload: FTP, SFTP, HTTP, HTTPS network share and email, notification: email, HTTP, HTTPS and TCP and SNMP trap, video recording to edge storage, send video clip, overlay text |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included), support for recording to dedicated network-attached storage (NAS) |
| Recording software supported: | Axis Companion Software, Axis Camera Station |
Connections |
|
| Power: | micro USB for DC power |
| Network: | RJ45 10BASE-T/100BASE-TX |
| Other: | HDMI type D |
Other |
|
| Dimensions: | Ø101mm x 56mm |
| Weight: | 0.17kg |
| Casing: | colour: white, encapsulated electronics, IP42 water- and dust-resistant, IK08 impact-resistant, polycarbonate/ABS casing |
| Warranty: | 5 year |
| Mounting methods: | ceiling, wall |
| Operating temperatures: | -0°C to 45°C |
| Power consumption: | max. 3.1W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI 1.4b |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log |
| ONVIF compliant: | yes, profile S |
