This fixed IP camera is suited to general indoor applications requiring high-definition, 24-hour monitoring. It includes a varifocal lens which allows the optimum viewing angle to be set at installation, and includes a built-in microphone.
This product is discontinued, an alternative model is the Axis M1135 Mk II
The Axis M1135 is a low-cost premium high definition IP camera with the latest H.265 video compression enabling video streaming with reduced bandwidth and low-cost storage. Other features include forensic WDR (wide dynamic range) and Lightfinder to deliver clear true colour images in challenging lighting conditions.
Feature rich, the M1135 delivers high performance at an affordable price, suitable for interior environments with a 90° horizontal field of view, capable of capturing a single room in a single wide-angle image. The lens offers a variable focal length so zoom can be adjusted at point of installation providing flexibility in achieving the required view.
Complete with a DC-iris lens the M1135 will automatically set the iris depending on how much light is entering the lens and adjust the exposure accordingly. Combined with Axis’ Forensic WDR (wide dynamic range), which compensates a scene with a strong backlight and equalises the exposure, the camera will provide a high quality, sharp and usable image in demanding lighting conditions. The camera also has an IR-cut filter allowing the images at night to be illuminated when paired with a separate IR light source.
A full HDTV 1080p resolution provides sharp images at up to 30 frames-per-second. With H.265 video compression the Axis M1135 also streams video using less bandwidth which also reduces storage requirements allowing for lower-cost options on your recording platform. Support for older formats, H.264 and MJPEG are also included for legacy uses.
The Axis M1135 includes on-board analytics out-of-the-box including Axis Video Motion Detection and active anti-tamper alarming. These analytic functions can be further added to with the installation of Axis or third-party packages using Axis’ Axis Camera Application Platform (ACAP). Further analytical packages could include Axis Guard Suite, Virtual Tripwire, Loitering Alarms, Licence Plate Recognition or many other applications to suit your needs.
Recording with the M1135 could not be simpler with a built-in MicroSD card slow. Local SD card edge-recording can be achieved with no need to a separate central recording solution. Storage to network-attached drives (NAS) is also supported as are a wide range of VMS platforms including Axis Camera Station and Milestone XProtect.
Please note: this camera does not come with a power supply, please select a midspan from the accessories tab if required.
The Axis M1135 network camera is ideal for general indoor applications that require high definition images. Typical installations would include schools/education, retail stores, hotels, banks, offices and leisure centres etc.
Included:
Optional:
Camera | |
| Environment: | indoor |
| Type: | fixed |
| Sensor: | progressive scan RGB CMOS 1/3" |
| Lens: | varifocal, IR corrected, CS-mount, megapixel resolution, DC-iris, 3-10.5 mm, 90~33° horizontal view, 49~19° view vertical |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Class 2, max. 6.49 W, typical 4.1 W |
| Memory: | 512 MB RAM, 512 MB Flash |
Video | |
| Resolution: | 1920x1080 to 160x90 |
| Compression: | H.265 Baseline, Main and High profiles (MPEG-4 Part 10/AVC), H.264 baseline, main and high profile (MPEG-4 Part 10/AVC), Motion JPEG |
| Frame-rate: | up to 25/30 fps in all resolutions |
| Bandwidth control: | multiple, individually configurable streams in H.265, H.264 and Motion JPEG, controllable frame rate and bandwidth VBR/CBR/MBR H.265, H.264. Axis Zipstream technology in H.265 and H.264 |
| Day/night: | yes, automatically removeable infrared cut-filter |
| Minimum illumination: | colour: 0.15 lux F1.4, B/W: 0.03 lux F1.4 |
| Video overlay: | text and image |
| Imaging: | WDR-Forensic Capture: up to 120 dB depending on scene, manual shutter time, compression, colour, brightness, sharpness, contrast, white balance, exposure control (including automatic gain control), exposure zones, fine tuning of behavioUr at low light, rotation: 0°, 90°, 180°, 270° including Corridor Format, aspect ratio correction, mirroring of images |
Viewing, detection & recording | |
| Privacy masking: | yes |
| Alarm detection: | video motion detection, Active tampering alarm, support for AXIS Camera Application Platform (ACAP) enabling installation of AXIS and third-party applications, see www.axis.com/acap |
| Alarm action: | File upload via FTP, HTTP HTTPS, SFTP, network share and email. Notification via email, HTTP, HTTPS, TCP Video recording to edge storage, pre- and post-alarm video buffering, PTZ preset, guard tour, send video clip, send SNMP trap, day/night vision mode, WDR mode, status LED indicator, output port |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | Support for microSD/microSDHC/microSDXC card and encryption (card not included). Recording to network-attached storage (NAS) |
| Recording software supported: | Axis Camera Station, Axis Companion software, Milestone XProtect |
Connections | |
| Power: | 8-28 V DC or Power over Ethernet (PoE) IEEE 802.3af/802.3at Class 2 |
| Network: | RJ45 10BASE-T/100BASE-TX PoE |
| Other: | Terminal block for one input and one output (12 V DC output, max. load 25 mA) DC input, terminal block |
Other | |
| Dimensions: | 46 x 70 x 148 mm |
| Weight: | bare bone: 165 g, with optics: 205 g |
| Warranty: | 5 years |

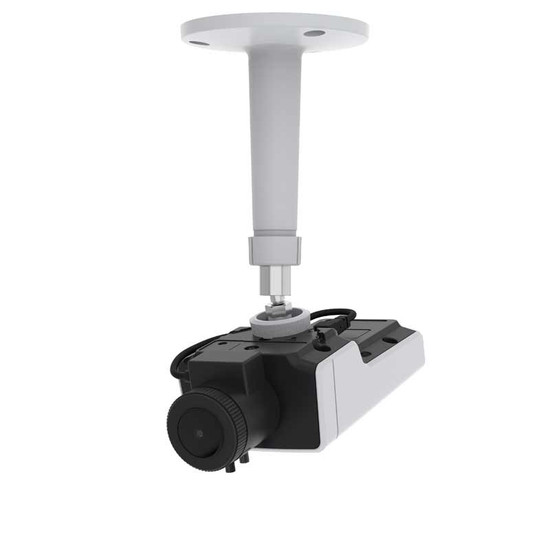

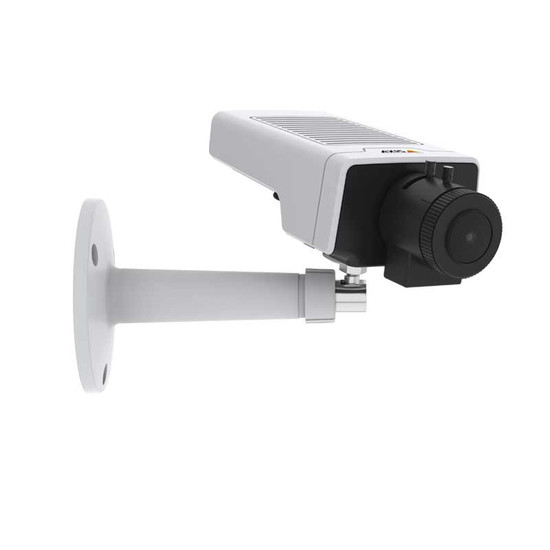

| Mounting methods: | stand (included), wall, ceiling |
| Operating temperatures: | -20 °C to 50 °C |
| Power consumption: | max. 6.49 W, typical 3.8 W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP,RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPS encryption, IEEE 802.1X (EAP-TLS), network access control, digest authentication, user access log, brute force delay protection, signed firmware, secure boot |
| ONVIF compliant: | yes, profile G/S/T |
Axis Communications | 02483-001
