This fixed Axis IP camera is ideal for general indoor applications that require high-quality 24-hour monitoring. Advanced imaging technologies are included and the unit also supports ACAP for high-performance 3rd party analytics apps.
This product is discontinued, an alternative model is the Axis M1135 Mk II

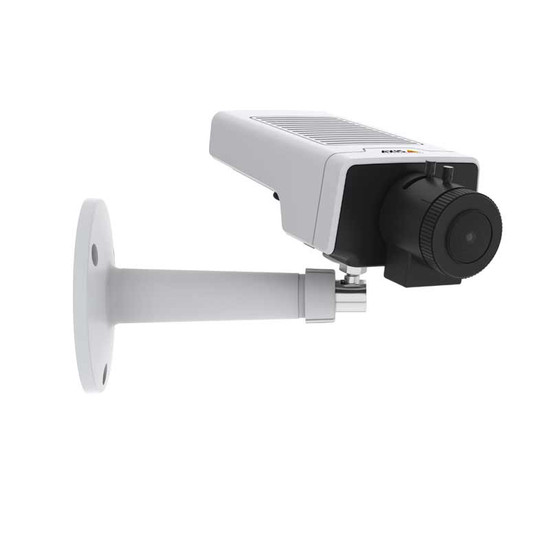

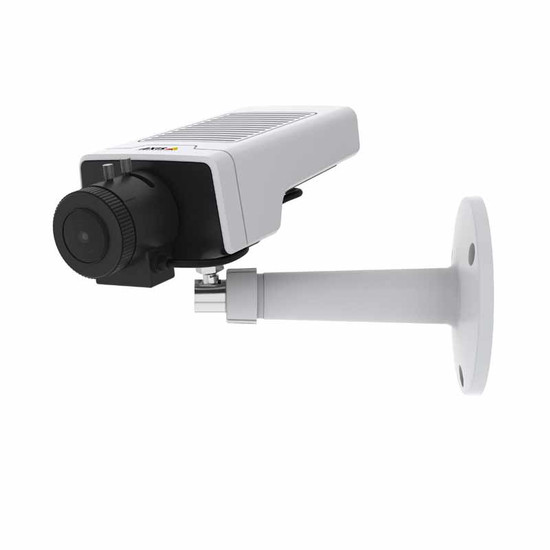

The Axis M1134 is a premium HD720p network camera with H.265 video compression for low bandwidth streaming and reduced storage requirement. Other features include Forensic WDR (Wide Dynamic Range) and Axis Lightfinder for true colour images and high quality exposure in demanding lighting conditions.
Both affordable and fully featured, the Axis M1134 delivers high performance at a low cost, ideal for general indoor scenarios and with a wide 90° horizontal field of view, is capable of capturing a single room in one shot. With the included varifocal lens, the M1134 offers additional flexibility allowing the image to be zoomed in or out at point of installation to achieve the desired view.
For challenging light conditions, the lens is equipped with a DC-iris, which opens/closes automatically letting in more/less light as the environment demands. Combined with Axis’ Forensic WDR, which is a powerful feature which will compensate for strong backlight conditions, the M1134 will expose both very dark and very light areas equally. When coupled with an infrared light source, the camera’s day/night capabilities can also provide useful images in dark rooms, ideal for night surveillance.
Images from the camera are captured at a crisp HD 720P resolution at up to 30 frames-per-second and with support for the new H.265 video compression format, the Axis M1134 can stream live images using less bandwidth than other leading compression formats as well as saving space on your storage devices when recording, lowering storage costs. Support for legacy compression formats, H.264 and MJPEG, are also included for integration flexibility.
Intelligent features include on-board analytics such as Axis Video Motion Detection which can be set up to notify operators when movement is detected and an active anti-tamper alarm which can be set to detect when the camera view is altered by movement or if it is obscured. The Axis M1134 also supports Axis Camera Application Platform (ACAP) enabling installation of powerful analytic applications from Axis or third-party developers such as virtual tripwire, loitering alarm or other intrusion detection applications.
With edge recording you can record directly to a MicroSD card, saving the cost of an expensive central recording PC/server and taking advantage of H.265 compression and Axis’ Zipstream technology the recordings can be optimised to use less storage space allowing for more days of recording to be retained on a single card. The M1134 also supports direct storage to a NAS device for recording to any required retention period and is compatible with leading VMS platforms including Axis Camera Station and Milestone XProtect.
Please note: this camera does not come with a power supply, please select a midspan from the accessories tab if required.
The Axis M1134 network camera is ideal for general indoor applications that require high quality 24-hour surveillance. Typical examples include schools, retail stores, hotels, banks, offices and leisure centres.
Included:
Optional:
Camera | |
| Environment: | indoor |
| Type: | fixed |
| Sensor: | progressive scan RGB CMOS 1/3" |
| Lens: | varifocal, IR corrected, CS-mount, megapixel resolution, DC-iris, 3-10.5 mm, 90~33° horizontal view, 49~19° view vertical |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Class 2, max. 6.49 W, typical 4.1 W |
| Memory: | 512 MB RAM, 512 MB Flash |
Video | |
| Resolution: | 1280x720 to 160x90 |
| Compression: | H.265 Baseline, Main and High profiles (MPEG-4 Part 10/AVC), H.264 baseline, main and high profile (MPEG-4 Part 10/AVC), Motion JPEG |
| Frame-rate: | up to 25/30 fps in all resolutions |
| Bandwidth control: | multiple, individually configurable streams in H.265, H.264 and Motion JPEG, controllable frame rate and bandwidth VBR/CBR/MBR H.265, H.264. Axis Zipstream technology in H.265 and H.264 |
| Day/night: | yes, automatically removeable infrared cut-filter |
| Minimum illumination: | colour: 0.15 lux F1.4, B/W: 0.03 lux F1.4 |
| Video overlay: | text and image |
| Imaging: | WDR-Forensic Capture: up to 120 dB depending on scene, manual shutter time, compression, colour, brightness, sharpness, contrast, white balance, exposure control (including automatic gain control), exposure zones, fine tuning of behaviour at low light, rotation: 0°, 90°, 180°, 270° including Corridor Format, aspect ratio correction, mirroring of images |
Viewing, detection & recording | |
| Privacy masking: | yes |
| Alarm detection: | video motion detection, Active tampering alarm, support for AXIS Camera Application Platform (ACAP) enabling installation of AXIS and third-party applications, see www.axis.com/acap |
| Alarm action: | File upload via FTP, HTTP HTTPS, SFTP, network share and email. Notification via email, HTTP, HTTPS, TCP Video recording to edge storage, pre- and post-alarm video buffering, PTZ preset, guard tour, send video clip, send SNMP trap, day/night vision mode, WDR mode, status LED indicator, output port |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | Support for microSD/microSDHC/microSDXC card and encryption (card not included). Recording to network-attached storage (NAS) |
| Recording software supported: | Axis Camera Station, Axis Companion software, Milestone XProtect |
Connections | |
| Power: | 8-28 V DC or Power over Ethernet (PoE) IEEE 802.3af/802.3at Class 2 |
| Network: | RJ45 10BASE-T/100BASE-TX PoE |
| Other: | Terminal block for one input and one output (12 V DC output, max. load 25 mA) DC input, terminal block |
Other | |
| Dimensions: | 46 x 70 x 148 mm |
| Weight: | bare bone: 165 g, with optics: 205 g |
| Warranty: | 5 years |
| Mounting methods: | stand (included), wall, ceiling |
| Operating temperatures: | -20 °C to 50 °C |
| Power consumption: | max. 6.49 W, typical 3.8 W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP,RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPS encryption, IEEE 802.1X (EAP-TLS), network access control, digest authentication, user access log, brute force delay protection, signed firmware, secure boot |
| ONVIF compliant: | yes, profile G/S/T |
Axis Communications | 02483-001
