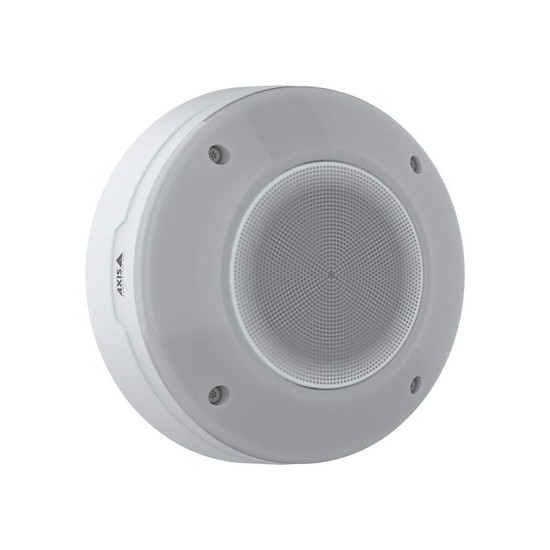

Overview of the AXIS D4200-VE network strobe speaker
- Fully networked strobe speaker that produces both light and audio from one device
- Compatible with AXIS IP devices, AXIS VMS and third-party VMS via VAPIX, MQTT and SIP
- Built-in microphone and AXIS Audio Analytics for reliable detection and alerts
- Protected from harsh weather and vandalism with IP66 and IK09 rated casing
- PoE port provides power to additional devices for reduced installation costs
This fully networked strobe speaker delivers both light and audio from a single device, making it ideal for responsive alerting and deterrence. It supports AXIS IP devices, AXIS Audio Manager, and third-party VMS via VAPIX, MQTT, and SIP. Deliver live or pre-recorded audio messages, manage zones for scheduled playback, and even play background music. With a built-in microphone and AXIS Audio Analytics, it enables reliable detection of sounds for real-time alerts. A PoE out port allows power to other devices, helping reduce installation costs and convenient integration with a nearby devices.
Its IP66 and IK09-rated housing ensures reliable performance in tough conditions, including vandal-prone or outdoor areas, withstanding temperatures from -40°C to 55°C. Easy to install with Power-over-Ethernet, the unit can be used alongside AXIS Perimeter Defender or ANPR solutions for applications like perimeter monitoring or vehicle access control.
Audio Analytics
The device comes preinstalled with AXIS Audio Analytics which uses trained AI algorithms to detect and classify loud sounds including screams, shouts and glass breaking. Receive reliable alerts in real-time to improve incident response. Adaptive audio detection allows you to set a defined threshold which can trigger an alert if the sound raises above the ambient level, no matter the type of sound.
Audio Management
See below for available audio management options for this device:
- AXIS Camera Station Software
- AXIS Audio Manager
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
- Morphean Cloud CCTV
Example Use Cases
- Perimeter and zone security - when combined with AXIS cameras, prevent restricted area access by deterring unwanted behaviour and vandalism. Deliver audible warnings in accordance with analytic events and illumination to indicate that the area is under surveillance
- ANPR access control - indicate when vehicle access gates are open/closed (permit access), or colour-code direction indication for car park control
- Healthcare - trigger the light without the alarm to avoid disturbing sleeping patients, two-way audio communication with patients
Accessories Included
- Network strobe speaker
- Installation guide
- Terminal block connector
- Connector guard
- Cable gaskets
- Owner authentication key
Key technical features of the Axis D4200-VE network strobe speaker
Hardware |
|
| Environment: | indoor/outdoor |
| Enclosure: | 3 inch coaxial dynamic cone speaker in sealed enclosure |

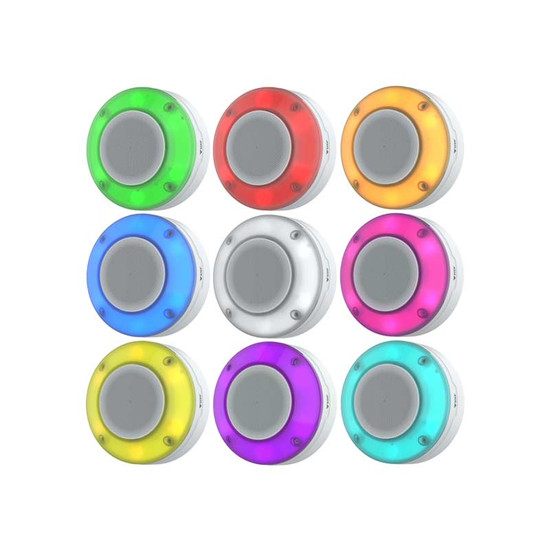

| Illumination LED: | Red, green, blue, amber, white, pink, purple, turquoise, yellow |
| Max sound pressure level: | 102 dB |
| Coverage pattern: | 140° coaxial |
| Frequency response: | 365 Hz - 14 kHz |
| Audio input/output: | Built-in microphone (can be disabled)
Built-in speaker External microphone, line in |
| Built-in microphone specification: | 20 Hz - 20 kHz |
| Amplifier description: | Built-in 7 W Class D amplifier |
Audio Management |
|
| AXIS Audio Manager Edge, Pro & Center: | Built in:
Zone management allowing you to divide up to 200 speakers into 20 zones. Content management for music and live/pre-recorded announcements. Scheduling to decide when and where to play content. Content prioritization to ensure urgent messages interrupt the schedule. Health monitoring for remote discovery of system errors. User management to control who has access to what features. |
System integration |
|
| SIP: | Supported SIP features: Secondary SIP server, IPv6,
SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT
(ICE, STUN, TURN)
RFC 3261: INVITE, CANCEL, BYE, REGISTER, OPTIONS,INFO DTMF (RFC 4733/RFC 2833) |
| Event conditions: | Audio: audio clip playing, speaker test result
Call: DTMF, state, state change Device status: above/below/within operating temperature, casing open, IP address blocked, IP address removed, live stream active, network lost, new IP address, ring power overcurrent protection, system ready, within operating temperature Digital audio: signal status Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: digital input, manual trigger, virtual input Light and siren: health status MQTT: client connected, stateless Scheduled and recurring: schedule |
| Event actions: | Audio: run automatic speaker test
Audio clips: play, stop Call: SIP calls I/O: toggle LEDs: flash status Light and siren: run, stop, run health check MQTT: publish Notification: HTTP, HTTPS, TCP and email Recordings: record audio Security: erase configuration SNMP traps: send |
| Functional monitoring: | Speaker test (verification through built-in microphone) |
Analytics |
|
| Applications: | Included
AXIS Audio Analytics Supported Support for AXIS Camera Application Platform enabling installation of third-party applications |
| AXIS Audio Analytics: | Features: adaptive audio detection, audio classification
Audio classes: scream, shout, glass break Event metadata: audio detections, classifications |
General |
|
| Casing: | IP66-, NEMA 4X- and IK10-rated
Aluminum and plastic casing Colour: white NCS S 1002-B |
| Mounting: | Mounting bracket with junction box holes (doublegang, single-gang, 4” square junction box and 4” octagon) and for wall or ceiling mount ¾” (M25) conduit side entry |
| Power: | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4,
typical 3.55 W, max 25.5 W
Power over Ethernet (PoE) IEEE 802.3bt Type 3 Class 6 ( max 51 W) required for PoE out Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 (30 W) to a second device Features: power meter |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE,
Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE output to power an external PoE device I/O: 4-pin 2.5 mm terminal block for two configurable supervised inputs/digital outputs (12 V DC output, max load 50 mA) Audio: 3.5 mm mic/line in |
| Dimensions: | For the overall product dimensions, see the dimension drawing in the product datasheet. |
| Weight: | 1500 g (3.3 lb) |
| Storage: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
| Operating conditions: | Temperature: -40 °C to 55 °C (-40 °F to 122 °F)
Maximum temperature (intermittent): 60 °C (140 °F) Start-up temperature: -40 °C Humidity: 10–100% RH (condensing) |
| Box Content: | Network strobe speaker, installation guide, terminal block connector, connector guard, cable gaskets, owner authentication key |
| Warranty: | 5-year |
