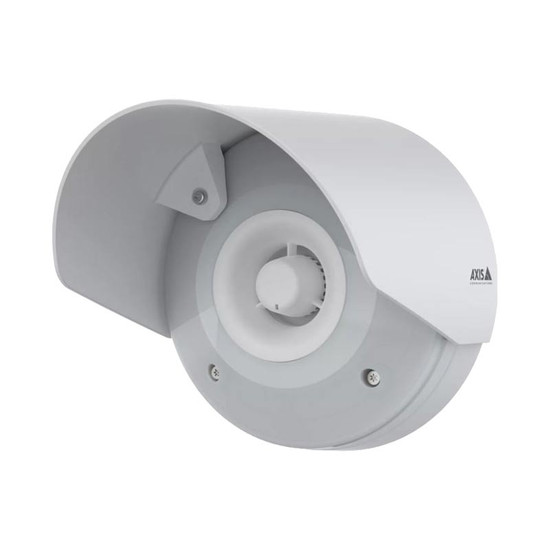

Overview of the AXIS D4100-VE Mk II network strobe siren
- Fully networked strobe siren that produces both light and sound in one device
- Compatible with AXIS IP devices, AXIS VMS and third-party VMS via VAPIX, MQTT and SIP
- Configure a range of profiles to trigger different light and sound patterns
- Protected from harsh weather and vandalism with IP66 and IK10 rated casing
- PoE support reduces installation costs by delivering power and network connectivity over a single cable
The AXIS D4100-VE Mk II network strobe siren builds on the D4100-E with upgraded memory and processing for faster performance, smarter event handling, and stronger cybersecurity with advanced hardware-level protection including TPM and TEE. It offers a versatile solution for enhancing safety, deterring unwanted activity, and supporting operational efficiency. It combines flashing white/RGBA LED lights and audible alerts in a single IP device, compatible with AXIS Camera Station, other AXIS devices, and third-party VMS via VAPIX, MQTT, or SIP. Customisable sound clips and light patterns allow tailored responses to different events.
Its IP66 and IK10-rated housing ensures reliable performance in tough conditions, including vandal-prone or outdoor areas, withstanding temperatures from -40°C to 60°C. Easy to install with Power-over-Ethernet, the unit can be used alongside AXIS Perimeter Defender or ANPR solutions for applications like perimeter monitoring or vehicle access control.
Device Management
See below for available management options for this device:
- AXIS Camera Station Software
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
- Morphean Cloud CCTV
Example Use Cases
- Perimeter and zone security - when combined with AXIS cameras, prevent restricted area access by deterring unwanted behaviour and vandalism. Deliver audible warnings in accordance with analytic events and illumination to indicate that the area is under surveillance
- ANPR access control - indicate when vehicle access gates are open/closed (permit access), or colour-code direction indication for car park control
- Healthcare - trigger the light without the alarm to avoid disturbing sleeping patients
Accessories Included
- Network strobe siren
- Installation guide
- Terminal block connector
- Cable gaskets
- Connector guard
Key technical features of the Axis D4100-VE Mk II network strobe siren
Strobe siren |
|
| Environment: | indoor/outdoor |
| Illumination LED: | Red, blue, green, amber (RGBA) LEDs
White LEDs, max 893 lm (PoE Class 4)/220 lm (PoE Class 3) |
| Max sound pressure level: | 110 dB, 1 m at 3.4 kHz |
| Coverage pattern: | 150 degree coaxial at 2 kHz |
System integration: |
|
| Video management systems: | Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and third-party video management software from Axis’ partners available |
| Event conditions: | Call: DTMF, state, state change
Device status: above/below/within operating temperature, IP address blocked/removed, live stream active, network lost, new IP address, system ready I/O: digital input is active, manual trigger, virtual input is active Light and siren: Health check status MQTT: MQTT client connected Scheduled and recurring: schedule |
| Event actions: | Calls: answer call, end SIP call, make SIP call
I/O: toggle I/O once, toggle I/O while the rule is active LEDs: flash status LED, flash status LED while the rule is active Light and siren: profiles, health check MQTT: send MQTT publish message Notification: HTTP, HTTPS, TCP and email Security: erase configuration SNMP trap messages: send, send while the rule is active |
General |
|
| Casing: | IP66-, NEMA 4X- and IK10-rated
Aluminum and plastic casing Colour: white NCS S 1002-B |
| Mounting: | Mounting bracket with junction box holes (double-gang,
single-gang, and 4” octagon)
For wall and ceiling mount: ¼”-20 UNC tripod screw thread ½” conduit fitting with optional accessory |
| Power: | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4,
max 22.6 W, typical 1.5 W
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3f, max 9.4 W, typical 1.5 W |
| Connectors: | Shielded RJ45 10BASE-T/100BASE-TX PoE
I/O: 4-pin 2.5 mm terminal block (2 configurable input/output I/Os) |
| Dimensions: | For the overall product dimensions, see the dimension drawing in the product datasheet. |
| Weight: | 1000 g (2.2 lb) |
| Casing: | IP66/67-, NEMA 4X- and IK10-rated
Aluminium and plastic casing Colour: white NCS S 1002-B |
| Operating conditions: | -40 °C to 60 °C (-40 °F to 140 °F)
Start-up temperature: -40 °C (-40 °F) Humidity 10–100% RH (condensing) |
| Warranty: | 5-year |
