Axis Communications | 02323-001

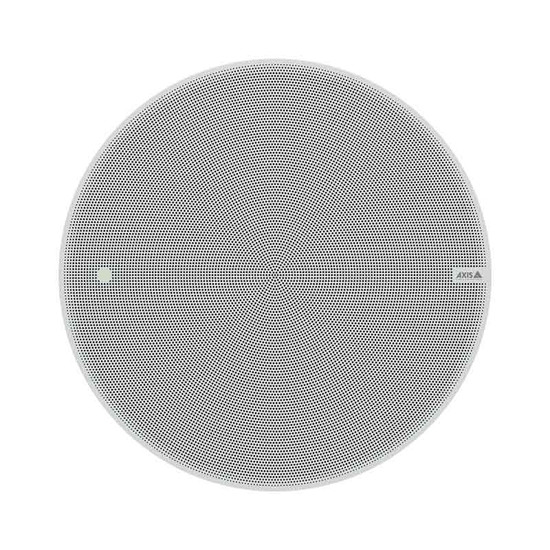

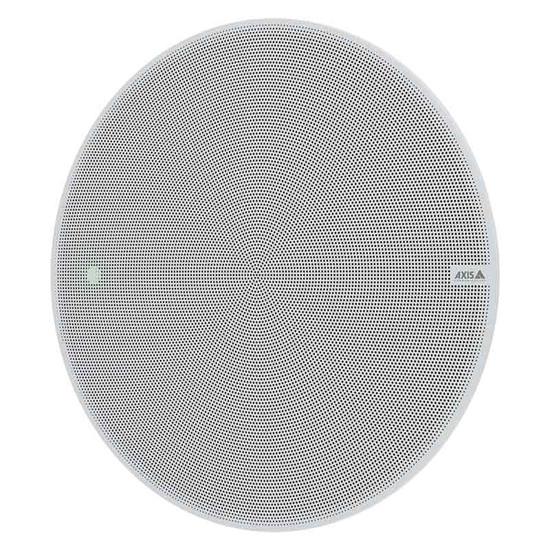

Axis C1211-E network ceiling speaker with flush-mount design, built-in microphone, PoE and SD card support

£373.00

£447.60 inc VAT

Best Price Guarantee

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

Easily integrated into an IP network and featuring embedded audio management software, this in-ceiling speaker system is ideal for indoor areas requiring unobtrusive network audio.

All-in-one in-ceiling speaker system
Available in small or large size
Built-in microphone for two-way audio
PoE support
Includes embedded audio management software
Axis 5-year warranty, firmware support until 31-12-2033

More details

Overview of the Axis C1211-E

Unobtrusive recess-mounted network speaker system
Suitable for indoor or protected outdoor use
2-way audio capabilities with a built-in microphone
Support for edge storage
Axis 5-year warranty
Dimensions: Ø 215 mm x 150 mm (small), Ø 285 mm x 150 mm (large)

Providing an unobtrusive in-ceiling network speaker solution, the Axis C12 series delivers an all-in-one system for voice announcements and background music. Available in small (C1211-E) and large variants (C1210-E), this speaker series connects easily to a network via one cable with support for Power-over-Ethernet (PoE) and is compatible with Axis VMS.

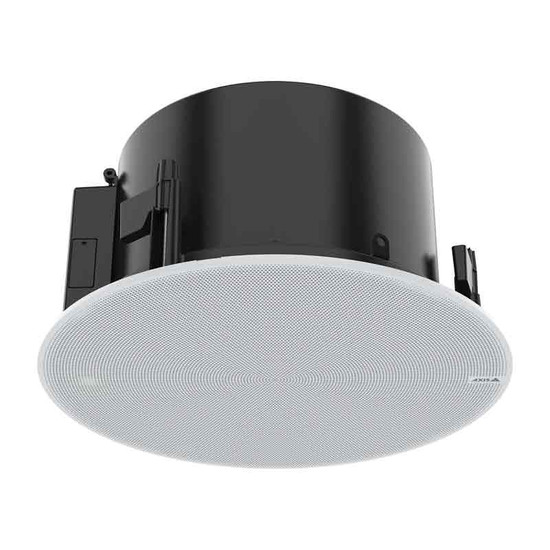

Suitably installed in a ceiling recess or protected outdoor areas such as under eaves, this speaker series features a backbox that meets plenum requirements and can be installed with the Axis TC1603 tile bridge for more secure mounting. Two-way audio capabilities are also included with a built-in microphone, which is enhanced by a preconfigured digital signal processor (DSP) – ensuring clear sound recording. Support for edge storage also allows the system to play pre-saved sound clips and easy integration with VoIP telephony and Axis analytics further enhances the applications of these devices. Furthermore, embedded audio management software allows user, content, zone and schedule management – enabling users to manage an entire audio system remotely.

Key features & benefits

All-in-one speaker system for announcements and background music
Available in two sizes
Supports power and connectivity over one cable via PoE
Compatible with Axis Camera Station
Backbox included that meets plenum requirements
Compatible with TC1603 tile bridge
Built-in microphone enables two-way audio
DSP ensures clear voice recording
Edge storage support allows re-recorded content to be broadcast
Support for VoIP telephony and Axis analytics
Includes embedded audio management software

Typical applications

Designed to provide unobtrusive network audio, the Axis C12 speaker series is ideal for indoor ceiling use or under eaves.

Key technical features of the Axis C1211-E

Audio
Enclosure:	One way enclosure with 4 inches broadband dynamic cone speaker
Audio streaming:	one-way/two-way with optional half-duplex echo cancellation, mono
Audio compression:	AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Constant and variable bit rate. Sampling rate from 8 kHz up to 48 kHz
Speaker:	max sound pressure level: 93dB, coverage pattern: 130° coaxial
Amplifier:	built-in 7 W Class D amplifier
System integration
Application programming interface:	open API for software integration, including VAPIX, one-click cloud connection, AXIS Camera Application Platform (ACAP)
Intelligent audio:	auto speaker test (verification via built-in microphone)
Built-in installation aids:	test tone verification and identification
Music streaming:	no info given
Voice announcement:	pre-recorded voice announcements through Axis Audio Player, voice announcement through built-in SIP support for connection to any IP telephone /VoIP system and VAPIX support.
Audio synchronisation:	no info given
VoIP:	Support for Session Initiation Protocol (SIP) for integration with voice over IP (VoIP) systems. Peer to peer or integrated with SIP/PBX. Tested with: SIP client such as Cisco, Bria and Grandstream and PBX suppliers such as Cisco and Asterisk. Supported SIP features: secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN) Supported codecs: PCMU, PCMA, opus, L16/16000, L16/8000, speex/8000, speex/16000, G.726-32
Event triggers:	call, virtual inputs, external input, AXIS Camera Application Platform (ACAP)
Event actions:	platform (ACAP) event actions Play audio clip, send SNMP trap, send auto speaker test, status LED, File upload via HTTP, network share and email, notification via email, HTTP, HTTPS and TCP, external output activation
General
Casing:	baffle: plastic top cover: Plastic mesh: surface-treated steel plate mesh colour: Off-white (RAL 9010 or equivalent) repaintable. For repainting instructions and impact on warranty, contact your Axis partner. Speaker mounting method: Plastic clamp
Memory:	512 MB RAM, 512 MB Flash
Power:	Power over Ethernet (PoE), IEEE 802.3af Type 1 Class 3 (max 12.95 W)
Connectors:	RJ45 10BASE-T/100BASE-TX PoE
Operating conditions:	-30°C to 50°C
Dimensions:	Ø 215 mm x 150 mm (small)
Weight:	2kg (small)
Security:	password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized Certificate Management
Supported protocols:	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk)
Warranty:	Axis 5-year warranty

Product data sheet (small)

Product data sheet (large)

Installation guide

User manual
