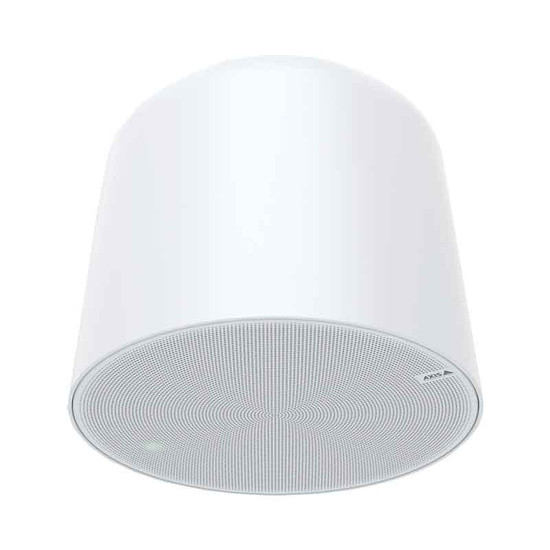

Providing unobtrusive two-way audio capabilities and PoE support, this pendant speaker can be easily hung from high ceilings, ideal for deployment in retail applications.
Easily mountable with the TC1901 wire kit (required accessory), the C1510 can be hung from high ceilings and provide two-way audio – ideal for use in hospitality or retail applications. As the larger model in the C15 series, this speaker system can be used to transmit and record audio in medium to large indoor areas.
This speaker system can be connected to an existing network using Power-over-Ethernet (PoE), a handy feature that allows both network and power to be delivered over one cable for cost-effective and straightforward installation. Pre-recorded audio can be added to the onboard SD card (not included), enabling users to broadcast music, alarms or announcements around the surveillance area. Compatible with Axis Camera Station and embedded with Axis Audio Manager, it is simple to add the speaker to a surveillance system and manage users, content, zones, and scheduling. In addition to providing two-way audio capabilities, the built-in microphone also supports remote health testing, ensuring the speaker is working at full capacity. Furthermore, this system is compatible with VoIP telephony and features a digital signal processor (DSP) for clear audio recording.
Please note: there is no power supply included with this unit. It is power over ethernet capable.
Adding clear and easy-to-manage audio capabilities to an Axis surveillance system, the Axis C1510 large pendant speaker is ideal for larger indoor retail applications with high ceilings such as supermarkets, shopping centres or inside service stations.
Back To Top|
Audio
|
|
| Audio streaming: | One-way/two-way with optional half-duplex echo cancellation, mono |
| Audio compression: | AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Constant and variable bit rate. Sampling rate from 8 kHz up to 48 kHz |
| Speaker: | max sound pressure level: 96dB, coverage pattern: 130° coaxial |
| Amplifier: | built-in 7 W Class D amplifier |
|
System integration
|
|
| Application programming interface: | open API for software integration, including VAPIX, One-click cloud connection, AXIS Camera Application Platform (ACAP) |
| Intelligent audio: | auto speaker test (verification via built-in microphone) |
| Built-in installation aids: | test tone verification and identification |
| Music streaming: | no info given |
| Voice announcement: | pre-recorded voice announcements through Axis Audio Player, voice announcement through built-in SIP support for connection to any IP telephone /VoIP system and VAPIX support. |
| Audio synchronisation: | no info given |
| VoIP: | support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems. Peer to peer or integrated with SIP/PBX. Tested with: SIP client such as Cisco, Bria and Grandstream and PBX suppliers such as Cisco and Asterisk. |
| Event triggers: | call, virtual inputs, external input, AXIS camera application platform (ACAP) |
| Event actions: | play audio clip, send SNMP trap, send auto speaker test, status LED, file upload via HTTP, network share and email, notification via email, HTTP, HTTPS and TCP, external output activation |
|
General
|
|
| Casing: | baffle: plastic
mesh: surface-treated steel plate
mesh colour: Off-white (RAL 9010 or equivalent) top cover: plastic repaintable
speaker mounting method: hook
|
| Memory: | 512 MB RAM, 512 MB Flash |
| Power: | Power over Ethernet (PoE), IEEE 802.3af/802.3af, Type 1 Class 3 (max 12.95 W) |
| Connectors: | RJ45 10BASE-T/100BASE-TX PoE |
| Operating conditions: | -30°C to 50°C |
| Dimensions: | Ø290 x 180 mm |
| Weight: | 4.1 kg |
| Security: | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management |
| Supported protocols: | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk) |
| Warranty: | Axis 5-year warranty |
