Zoom the image with the mouse

| 01914-001

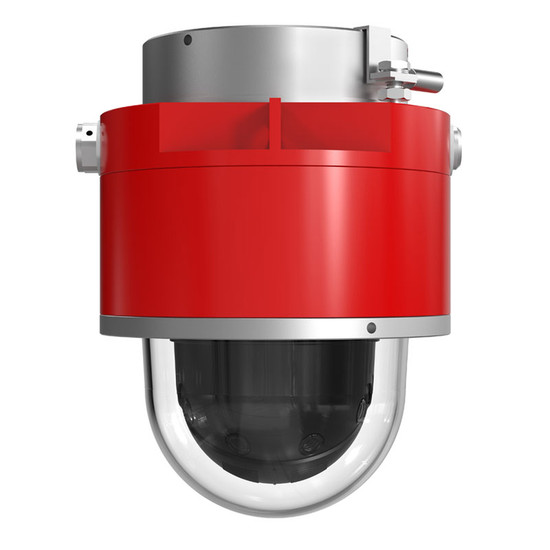

Axis D101-A XF P3807 ATEX-Certified IP camera with four HD 1080p sensors, 180° overview, Lightfinder and Forensic WDR

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

With 4 HD sensors and housed in an ATEX-rated casing, this robust unit provides seamless overviews of large, hazardous environments with high risks of fire or explosions. Clearer images are also provided with advanced imaging technologies.

  • Forensic WDR & Lightfinder improve imaging
  • ACAP support for 3rd party analytics
  • Edge storage provides handy data backup
  • Four sensors provide 180° overviews
  • 4 x HD 1080p sensors
Hurry! Only left

This product is discontinued, for alterative models please see Axis ATEX-rated IP Cameras

Overview of the Axis D101-A XF P3807

  • Captures 8MP resolution video at up to 25 fps
  • Four sensors provide seamless 180&deg overviews
  • Class I/II/III, Division 1, Zone 1 and ATEX-Certified IP66-rated aluminium casing
  • Lightfinder and Forensic WDR technologies
  • Axis 5-year warranty
  • Size: ø218 x 404 mm

Designed for extreme locations that feature a high-risk of fire or explosions, this ATEX-Certified multi-sensor IP camera is capable of capturing 180° overviews in 8MP resolution at full frame rate – 24 hours a day. Advanced imaging technologies are also included in the fully-featured model; such as Lightfinder and Forensic Wide Dynamic Range (WDR) for improved image capture in challenging lighting conditions. Other useful features include edge storage, support for Power over Ethernet (PoE) and support for Axis Camera Application Platform (ACAP) which enables the use of powerful analytics applications – helping to enhance security surveillance of personnel and assets.


The robust camera’s IP66-rated enclosure also meets the ATEX-Certified EX II 2 GD standard, meaning it can contain internal explosions and prevent sparks from escaping the device. This makes it an ideal choice for deployment in high-risk environments such as gas pipelines. It also features a bright red design which enables it to stand out more - especially helpful when installed in low visibility environments such as a smoke-filled room or metal-working facilities.

This multi-sensor unit comprises four HD sensors, that combine to deliver a seamless 8MP panoramic overview - ideal for scenarios such as production lines that require a wide location to be monitored in a single, cohesive video stream. The four sensors can also be manually tilted up to 55° to achieve the desired viewing direction for optimal scene coverage. Additionally, this feature-packed unit is able to provide round-the-clock monitoring with true day/night recording and captures detail-packed 8MP resolution video footage at up to 25 frames per second (fps).


Thanks to the inclusion of Axis' ARTPEC 7 chipset, this camera features improved imaging technologies help the camera to deliver clear video footage even in the most challenging lighting conditions. Forensic WDR retains image details in high contrast scenes to be viewed clearly, helping to ensure individuals and objects can be more clearly distinguished. Lightfinder technology also enables the capture of full colour images in ambient light extremes.

Video analytics

A range of configurable, camera-based video motion detection and tampering alarms are available to help alert users of activity via notification methods such as email. Further powerful analytics applications from Axis or third-party developers can also be installed via the Axis Camera Application Platform (ACAP), such as virtual tripwire, loitering alarm and many other intrusion detection applications.

Video management

Data can be stored to the onboard MicroSD card for a backup solution in the event of a network connection failure. Sophisticated video management is also possible through integration with high-performance video management software applications such as Axis Camera Station and Milestone XProtect to provide a comprehensive surveillance solution.


This hardy, ATEX-Certified unit is built to endure the most demanding environments, such as marine or heavy industry applications. PoE also provides power and network connectivity over a single cable – reducing installation costs. (Note: 12-30V AC/DC PSU is required to power the housing's heater).

Please note: This advanced unit must be installed and configured by an ATEX-Certified installer and does not come with a power supply (please select from above dropdown menu if required).

Key features & benefits

  • ATEX-Certified EX II 2 GD IP camera enclosed in a red, IP66-rated aluminium casing
  • Four HD 1080p lens modules combine to provide a seamless 180° overview in 8MP resolution
  • Sensors can be manually tilted up to 55° to achieve the desired viewing direction
  • True day/night recording enables 24-hour monitoring
  • Forensic WDR retains the level of detail across images with high contrast lighting
  • Lightfinder technology captures full colour video footage in near darkness
  • Video motion detection and tampering alarms can be configured to alert users of possible incidents in real-time
  • Support for ACAP enables the use of powerful analytics applications
  • Local storage to MicroSD card provides a backup solution if the network fails
  • Support for PoE provides network connectivity and power over one cable – reducing installation costs

Typical applications

This powerful ATEX-Certified, multi-sensor IP camera delivers 8MP 180° overviews in extreme environments that have a high-risk of fire or explosions. Typical applications include ports, petrochemical plants and oil refineries.



  • Installation guide
  • Windows decoder 1-user license
  • Axis Surveillance microSDXC Card 128 GB

Optional (select from above dropdown menu):

  • Power supply

Mounting options (select optional accessories from dropdown menu)

  • Wall - Axis D201-S XPT
Back To Top

Key technical features of the Axis D101-A XF P3807


ATEX certification: ATEX: 2 G Ex db IIB+H2 T6 Gb Ta = -20 °C to 55 °C, IP66, II 2 D Ex tb IIIC Db T85°C Ta = -20 °C to 55 °C, IP66, certificate number: FM18ATEX0057X
Environment: outdoor (IP66-rated)
Type: explosion-protected network camera
Sensor: 4 x 1/2.9” progressive scan RGB CMOS
Lens: fixed 3.2 mm, F2.0, horizontal field of view: 180°
PTZ: none
Audio: none
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, typical: 7W, max: 12.9W
Memory: 1GB RAM, 512MB Flash


Resolution: (4320x1920) to (480x270)
Compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, Motion JPEG
Frame rate: 25 fps
Video streaming: 8.3 MP (client dewarp): 1 individually configurable stream in H.264 and Motion JPEG, 7.5 MP (dewarped): 2 individually configurable streams in H.264 and Motion JPEG, Axis Zipstream technology in H.264, controllable frame rate and bandwidth VBR/MBR H.264
Day/night: automatically removable infrared-cut filter
Minimum illumination: colour: 0.17 lux, b/w: 0.05 lux
IR illumination: none
Video overlay: text and image
Image settings: saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, compression, dynamic text and image overlay, exposure control, noise reduction, fine tuning of behaviour at low light, polygon privacy masks


Application Programming Interface: included analytics: Axis Video Motion Detection, active tampering alarm, supported analytics: Axis Motion guard, Axis Fence guard, Axis Loitering guard, open API for software integration, including VAPIX and AXIS Camera Application Platform, AXIS Video Hosting System (AVHS) with One-Click Connection, ONVIF support: profiles S/G
Event triggers: analytics, edge storage events, shock detection
Event action: day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap, file upload: FTP, SFTP, HTTP, HTTPS network share, email notification: email, HTTP, HTTPS TCP
Privacy masking: yes

Video Management

On-camera recording: support for microSD/microSDHC/microSDXC card, support for SD card encryption, support for recording to network-attached storage (NAS)
Network video recorders: Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs
Video Management Software: Axis Companion, Axis Camera Station, Milestone XProtect
Cloud: Morphean Cloud CCTV, CamStreamer Cloud


Network connections: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3
Alarm I/O connections: none
Dimensions: ø218 x 404 mm
Weight: 8.6kg
Casing: IP66-rated, powdercoated aluminium chassis, red
Operating temperatures: -20°C to 55°C
Mounting methods: wall or pole
Installation aids: pixel counter, levelling guide
Warranty: 5 year
Power consumption: max. 12.9W
Protocols supported: IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
Security: password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware
Approvals: EMC: EN 55032 Class A, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ANSI/IEC/CAN/CSA-C22.2 60529 IP66, NEMA 250 Type 4X, explosion: ANSI/ISA/EN/IEC/CAN/CSA-C22.2 60079-0, ANSI/UL/EN/IEC/CAN/CSA-C22.2 60079-1, ANSI/UL/IEN/EC/CAN/CSA-C22.2 60079-31
