This product is discontinued, for an alternative please see Axis C8110 network audio bridge

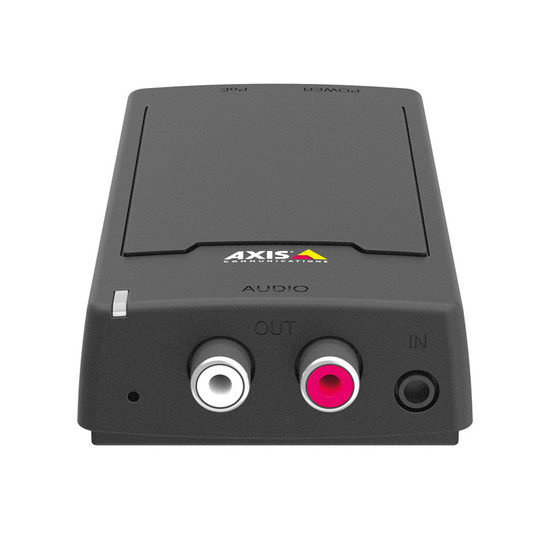

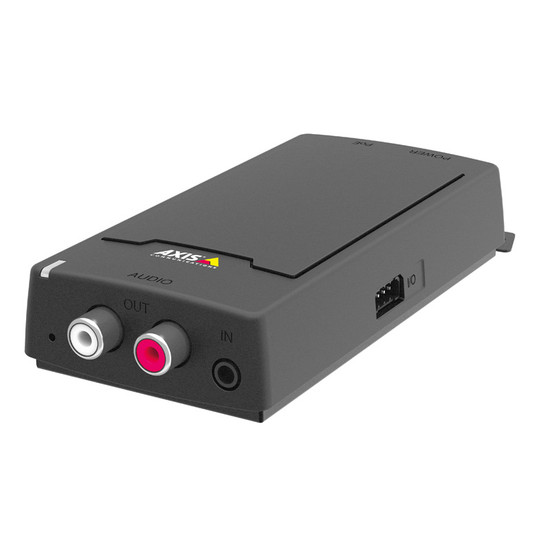

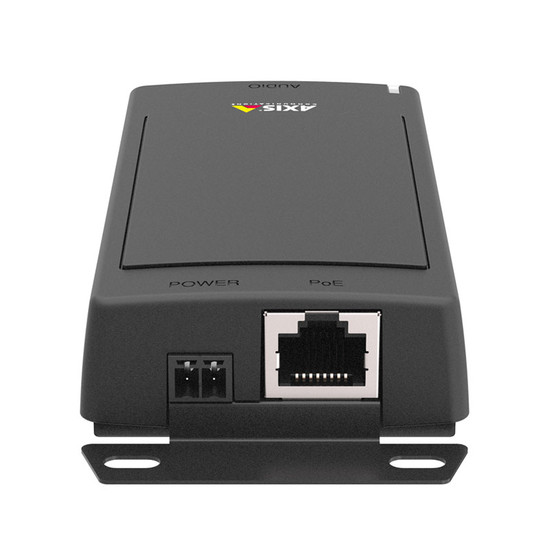

Overview of the Axis C8033
The Axis C8033 network audio bridge unit is a smart solution for users who wish to connect and combine analogue and digital audio systems. With ports for both analogue and digital connections, this handy piece of kit provides a versatile audio link – allowing legacy analogue speaker systems and Axis network audio systems to work together as one.
The unit’s multiple ports provide users with the flexibility to connect analogue audio sources, such as smart phones and tablets to an Axis network speaker system. In addition, digital audio sources can also be connected into to an analogue speaker system. This can help to make the transition to digital easier, whilst also protecting the user’s initial investment in audio equipment.
This compact audio bridge allows users who integrate a digital source into an analogue system to also take full advantage of Axis’ Audio Player application. This enables the scheduling of music and pre-recorded announcements, as well as the ability to take control and make live announcements. With only one unit required to support over one-hundred speakers, smart zoning allows users to send specific audio to only selected speakers. Additionally, audio files can be set to play as a result of a triggered alarm that has been defined on-board an IP camera or in Axis Camera Station video management software.
Built on an open platform, this small device supports a host of software including AXIS Camera Application Platform (ACAP) – providing access to a range of third-party applications. In addition, the unit can be easily integrated into any Axis IP video system using Power-over-Ethernet (PoE).
Please note: this product does not come with a power supply, please select from the accessory tab if required.
Key features & benefits
- Allows the combination of analogue and network audio systems
- Supports the integration of Axis speakers into analogue audio systems
- Based on open platform standards (VAPIX and AXIS Camera Application Platform (ACAP)
- One unit can support over one-hundred speakers
- Smart zoning allows full control of audio delivered
- Indoor unit features an IP20-rated metal and plastic casing
- Audio files and playlists can be stored on the built-in microSD card (not included)
- PoE support delivers power and network connectivity over a single cable
Typical applications
The Axis C8033 network audio bridge unit provides a cost-effective solution for users that are looking to integrate digital audio sources, such as Axis network speakers, into a legacy analogue system. Typical applications include supermarkets, museums and arcades
Accessories
Included:
- Installation guide
- AVHS authentication key
- Digital Axis Camera Station licence key
- Power connector
- I/O connector
- Velcro
Optional:
- PoE midspan
- MicroSD card
Key technical features of the Axis C8033
|
Audio
|
|
| Audio streaming: | one-way/two-way, mono |
| Audio compression: | G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps, constant and variable bit rate, sampling rate from 8 kHz to 48 kHz |
| Audio input/output: | mic-in, line-in and line-out |
| Frequency response: | 20 Hz - 20 kHz |
|
System integration
|
|
| Application programming interface: | open API for software integration, including VAPIX, AXIS Video Hosting System (AVHS) with one-click connection, AXIS Camera Application Platform (ACAP) support for session initiation protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX tested with various SIP client such as Cisco, Bria and Grandstream. Tested with various PBX suppliers such as Cisco and Asterisk |
| Built-in installation aids: | test verification and identification |
| Music streaming: | music playback through Axis Audio Player, offline streaming from SD card and audio-in, online streaming support |
| Voice announcement: | pre-recorded voice announcements through Axis Audio Player, voice announcement through built-in SIP support for connection to any IP telephone /VoiP system and VAPIX support. |
| Audio synchronisation: | built-in audio synchronisation for up to 50 speakers with unicast and hundreds of speakers with multicast, no additional speaker management software or hardware required |
| Event triggers: | call, virtual inputs, external input, Axis Camera Application Platform (ACAP) |
| Event actions: | play audio clip, send SNMP trap, status LED, file upload via HTTP, network share and email, notification via email, HTTP, HTTPS and TCP, external output activation |
|
General
|
|
| Casing: | IP20-rated, plastic and metal casing, colour: black |
| Memory: | 256 MB RAM, 512 MB Flash |
| Storage | support for microSD/microSDHC/microSDXC card, max size: 64gb |
| Power: | 8-28 V DC, Power over Ethernet (PoE) IEEE 802.3af/802.3af Type 1 Class 2 (max: 4W) |
| Connectors: | RJ45 10BASE-T/100BASE-TX PoE; I/O: 4-pin 2.5 mm terminal block for two configurable inputs/outputs; power: 2-pin 5.0 mm terminal block DC input; audio: 3 pole 3.5 mm, RCA line out |
| Operating conditions: | -20°C to 50°C |
| Dimensions: | 24 (H) x 57 (D) x 129 (W) mm |
| Weight: | 102 g |
| Security: | password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log, centralised certificate management |
| Supported protocols: | IPv4/v6c, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk) |
| Warranty: | Axis 3-year warranty |
