| 0834-001

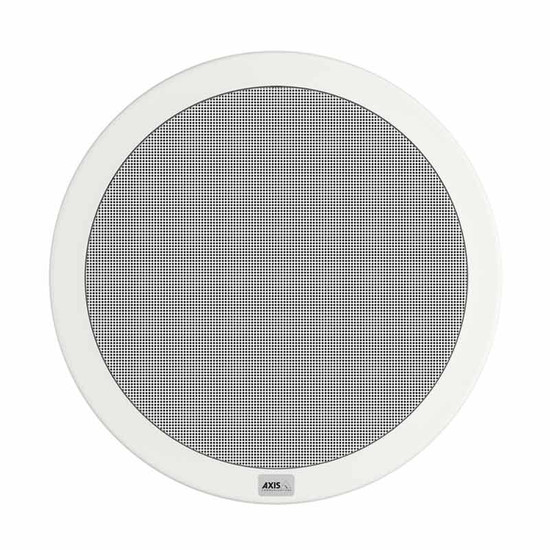

Axis C2005 network ceiling speaker system with flush-mount design, music streaming support, SD card slot and PoE

£470.40 inc VAT
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
  • Supplied with Axis Camera Station license
  • PoE supplies power and connectivity
  • Music streaming support
  • SD card slot (card not included)
  • Axis 5-year warranty
Options available:
Hurry! Only left

Overview of the Axis C2005

This Axis C2005 network ceiling speaker is a professional ‘all-in-one’ speaker system, designed to play background music and deliver live or scheduled audio announcements to indoor locations. It features a flat-profile design which allows it to easily be installed into a ceiling panel and also includes a built-in amplifier, microphone and loudspeaker. In addition, Power-over-Ethernet (PoE) supplies power and network connection over one cable for quick and cost-effective deployment.

This versatile unit can be easily integrated into new or existing IP systems to deliver a flexible audio solution that is capable of high sound pressure exceeding 95dB. The Axis Audio Player application is pre-installed and includes a helpful range of features to enable straightforward delivery of audio announcements and background music. Users can create and schedule playlists from music saved to the on-board MicroSD card (not included), or from the app’s range of supported music streaming services. Live audio announcements are supported and pre-recorded audio clips can be set to play at specific times. In addition, these audio clips can also be configured to play as a result of a triggered alarm that has been defined onboard an IP camera or in Axis Camera Station video management software.

Multiple speakers can be controlled simultaneously by creating specific zones; this makes it possible to play different music or announcements, as well as control the audio settings of an individual speaker or group of speakers. These user-defined zones are particularly helpful in larger systems as they allow users to efficiently manage settings and ensure the correct messages or music are delivered to the correct location.

During installation, built-in test tones are provided for calibration and verification – allowing users to optimise the speaker’s performance to its surrounding environment. Once installed, the user can also perform a remote Auto Speaker Test to confirm that the speaker is working properly by playing and measuring the test tones.

Please note: this product does not come with a power supply, please select from the dropdown menu if required.

Key features &amp benefits

  • Fully-featured speaker system provides an all-in-one audio solution that is suitable for a range of indoor applications
  • Slim design allows users to easily flush-mount the unit into a ceiling panel
  • PoE supplies the unit with both power and network connectivity over a single cable for a quick and cost-effective installation
  • Integrated amplifier enables high pressure exceeding 95 dB for the delivery of clear audio
  • Users can schedule and play audio easily via the pre-installed Axis Audio Player application
  • Zones can be created to allow simultaneous and easy management of multiple speakers
  • Audio can be played manually, at a scheduled time or on an event basis when triggered by a camera in the system
  • Users can access various online music streaming services easily through the Axis Audio Player app
  • Music playlists and audio clips can be stored locally on the speaker’s on-board MicroSD card (not included)
  • Auto Speaker Test function checks the speaker is working by playing and measuring built-in test tones

Compatible recording platforms

Typical applications

The Axis C2005 network ceiling speaker allows users to easily stream background music and deliver live or recorded audio clips. The compact speaker can be installed via PoE and provides an all-in-one audio solution that is suitable for a range of indoor applications such as retail stores, gymnasiums and museums.



  • Installation guide
  • AVHS authentication key
  • Axis Camera Station license key

Optional (please select from the dropdown menu):

  • PoE midspan
  • MicroSD card
Back To Top

Key technical features of the Axis C2005

Audio streaming: one-way/two-way, mono
Audio compression: G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps, constant and variable bit rate, built-in microphone (can be disabled)
Speaker: 20cm coaxial cone type, max sound pressure level: 95dB, coverage pattern: 130° coaxial
Amplifier: built-in 6 W Class D amplifier
System integration
Application programming interface: open API for software integration, including VAPIX, Axis Video Hosting System (AVHS) with one-click Connection, Axis Camera Application Platform (ACAP)
Intelligent audio: auto speaker test, event triggers: call, virtual inputs, event actions: file upload: HTTP, network share and email, notification: email, HTTP and TCP, play audio clip, send Auto Speaker Test, send SNMP trap, status LED
Built-in installation aids: test tone verification and identification
Functional monitoring: auto speaker test (verification via built-in microphone)
Music streaming: music playback through Axis Audio Player, offline streaming from SD card and online streaming support
Voice announcement: pre-recorded voice announcements through Axis Audio Player, voice announcement through built-in SIP support for connection to any IP telephone /VoIP system and VAPIX support.
Audio synchronisation: built-in audio synchronisation for up to 50 speakers with unicast and hundreds of speakers with multicast, no additional speaker management software or hardware required
VoIP: support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX, tested with: SIP client such as Cisco, Bria and Grandstream and PBX suppliers such as Cisco and Asterisk. supported SIP features: secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN), supported codecs: PCMU, PCMA, opus, L16/16000, L16/8000, speex/8000, speex/16000, G.726-32
Event triggers: virtual inputs, Axis Camera Application Platform (ACAP), call: DTMF, state changes
Event actions: play audio clip, send SNMP trap, send Auto Speaker Test, status LED, file upload via HTTP, network share and email, notification via email, HTTP, HTTPS and TCP
Casing: UL2043 plenum rated, baffle: steel plate, grill: surface-treated steel plate
Memory: 256 MB RAM, 256 MB Flash
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3af Type 1 Class 3 (max: 12.95W)
Connectors: RJ45 10BASE-T/100BASE-TX PoE
Operating conditions: -20°C to 50°C
Dimensions: ø280 x 92mm
Weight: 1.7 kg
Security: password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log
Supported protocols: IPv4/v6c, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk)
Warranty: Axis 3-year warranty
