Providing two-way network audio with a built-in microphone and compact flush-mounted form factor, this all-in-one network speaker is suitable for use in both indoor and protected outdoor areas for an unobtrusive audio solution.

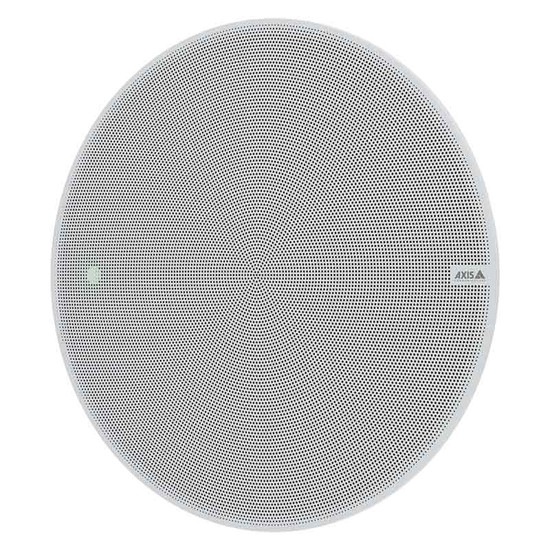

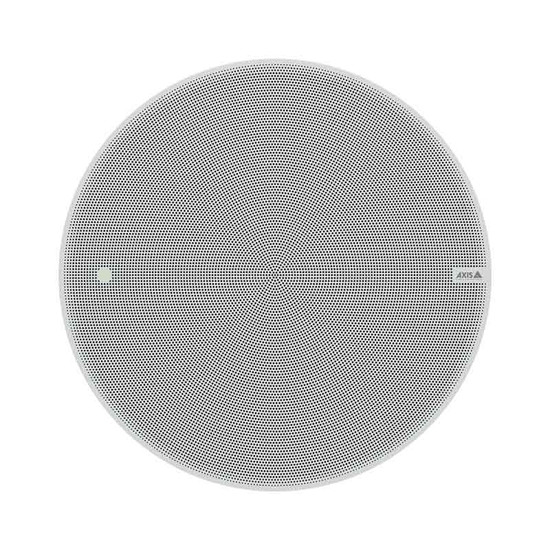

Providing an unobtrusive and highly flexible in-ceiling network speaker solution, the Axis C12 series delivers an all-in-one system for voice announcements and background music. Available in small (C1211-E) and large variants (C1210-E), this speaker series connects easily to a network via one cable with support for Power-over-Ethernet (PoE) and is compatible with Axis Camera Station VMS.
Suitably installed in a ceiling recess or protected outdoor areas such as under eaves, this speaker series features a backbox that meets plenum requirements and can be installed with the Axis TC1603 tile bridge for more secure mounting. Two-way audio capabilities are also included with a built-in microphone, which is enhanced by a preconfigured digital signal processor (DSP) – ensuring clear sound recording. Support for edge storage also allows the system to play pre-saved sound clips and easy integration with VoIP telephony and Axis analytics further enhances the applications of these devices. Furthermore, embedded audio management software allows user, content, zone and schedule management – enabling users to manage an entire audio system remotely.
Designed to provide unobtrusive network audio, the Axis C12 speaker series is ideal for indoor ceiling use or under eaves.
|
Audio
|
|
| Audio input/output: |
Built-in microphone (can be disabled)
External microphone, line in |
| Audio streaming: | one-way/two-way with optional half-duplex echo cancellation, mono |
| Audio compression: | AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Constant and variable bit rate. Sampling rate from 8 kHz up to 48 kHz |
| Speaker: | max sound pressure level: 96dB, coverage pattern: 130° coaxial |
| Enclosure: | One way enclosure with 6.5 inches broadband dynamic cone speaker |
| Amplifier: | built-in 7 W Class D amplifier |
|
System integration
|
|
| Application programming interface: | open API for software integration, including VAPIX, one-click cloud connection, AXIS Camera Application Platform (ACAP) |
| Intelligent audio: | auto speaker test (verification via built-in microphone) |
| Built-in installation aids: | test tone verification and identification |
| Music streaming: | no info given |
| Voice announcement: | pre-recorded voice announcements through Axis Audio Player, voice announcement through built-in SIP support for connection to any IP telephone /VoIP system and VAPIX support. |
| Audio synchronisation: | no info given |
| VoIP: | Support for Session Initiation Protocol (SIP) for integration with voice over IP (VoIP) systems. Peer to peer or integrated with SIP/PBX. Tested with: SIP client such as Cisco, Bria and Grandstream and PBX suppliers such as Cisco and Asterisk. Supported SIP features: secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN) Supported codecs: PCMU, PCMA, opus, L16/16000, L16/8000, speex/8000, speex/16000, G.726-32 |
| Event triggers: | call, virtual inputs, external input, AXIS Camera Application Platform (ACAP) |
| Event actions: | platform (ACAP) event actions Play audio clip, send SNMP trap, send auto speaker test, status LED, File upload via HTTP, network share and email, notification via email, HTTP, HTTPS and TCP, external output activation |
|
General
|
|
| Casing: | baffle: plastic top cover: Plastic mesh: surface-treated steel plate mesh colour: Off-white (RAL 9010 or equivalent) repaintable. For repainting instructions and impact on warranty, contact your Axis partner. Speaker mounting method: Plastic clamp |
| Memory: | 512 MB RAM, 512 MB Flash |
| Power: | Power over Ethernet (PoE), IEEE 802.3af Type 1 Class 3 (max 12.95 W) |
| Connectors: | RJ45 10BASE-T/100BASE-TX PoE |
| Operating conditions: | -30°C to 50°C |
| Dimensions: | Ø 285 mm x 150 mm (large) |
| Weight: | 3.1 kg (large) |
| Security: | password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized Certificate Management |
| Supported protocols: | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk) |
| Warranty: | Axis 5-year warranty |
Axis Communications | 02323-001
