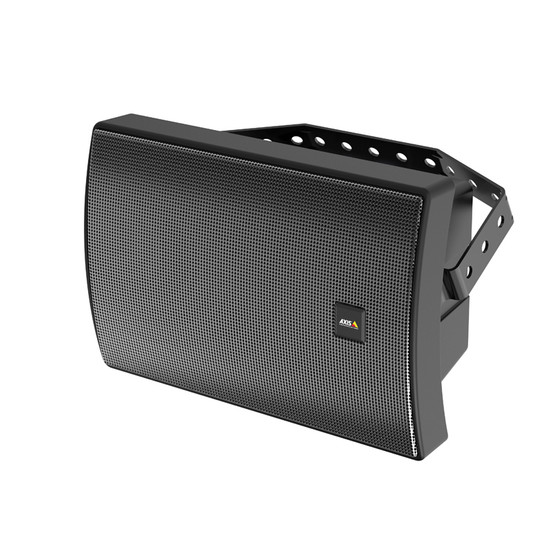

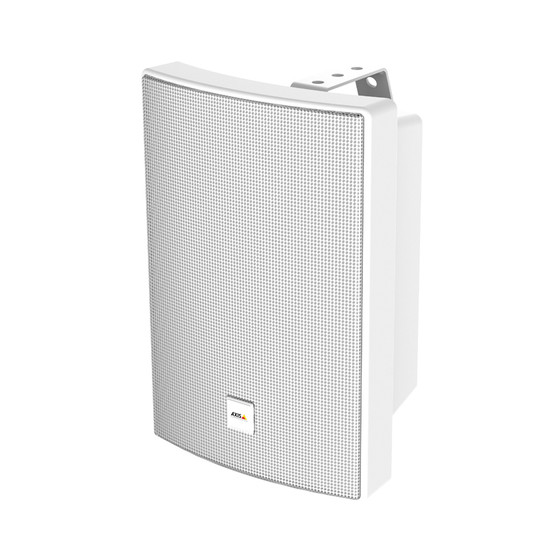

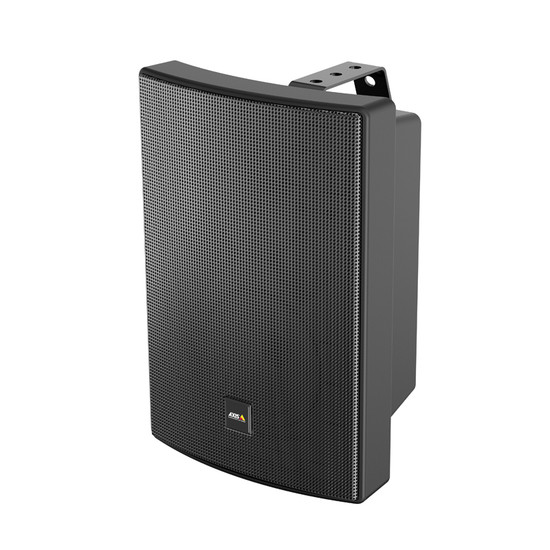

Axis C1004-E network cabinet speaker system with built-in amplifier, music streaming support, SD card slot and PoE

£676.80 inc VAT
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
  • Supplied with Axis Camera Station license
  • User-defined zones can be created
  • Built-in amplifier
  • Music streaming support
  • Axis 5-year warranty
Options available:
Hurry! Only left

Overview of the Axis C1004-E

This Axis C1004-E network cabinet speaker is a professional ‘all-in-one’ speaker system that can be used to play background music and deliver live or scheduled audio announcements to indoor locations. The C1004-E features a built-in amplifier, microphone and loudspeaker, and can be easily installed using Power-over-Ethernet (PoE) and mounted onto a wall or ceiling using the supplied bracket.

Capable of high sound pressure exceeding 96 dB, this versatile network speaker can be integrated into new or existing IP systems to provide a flexible and scalable audio solution. It’s pre-installed with the Axis Audio Player application which enables users to play background music and audio announcements with ease. Playlists can be created and scheduled from music saved to the onboard MicroSD card (not included), or from a variety of supported music streaming services. Live announcements are supported and pre-recorded audio clips can be scheduled to play at specific times of the day. In addition, audio clips can be set to play in the event of a triggered alarm that has been configured onboard an IP camera or in Axis Camera Station video management software.

Users can create specific zones to address many speakers at the same time; making it possible to play different background music or announcements, as well as control various audio settings for each speaker individually or simultaneously. These user-defined zones are particularly helpful in larger systems and make it easier for users to manage settings and ensure the right messages or music are delivered to the right location at the right time.

Built-in test tones are provided for calibration and verification during installation, allowing the user to optimise the speaker’s performance to its specific surroundings. Once installed, an Auto Speaker Test can be performed by the user from a remote location to confirm that the speaker is in full working order by playing and measuring the test tones.

Please note: this product does not come with a power supply, please select from the dropdown menu if required.

Key features & benefits

  • Feature-packed speaker provides an all-in-one audio solution for indoor applications
  • Connects directly to an IP network using PoE for communication and power
  • Built-in amplifier enabling high sound pressure exceeding 96 dB for the delivery of clear audio
  • Pre-installed Axis Audio Player is a handy app that allows users to schedule and play audio clips
  • User-defined zones can be created for the efficient management of speakers
  • Audio can be played manually, at specific times or on an event basis when triggered by a camera in the system
  • Helpful access to online music streaming services through the Axis Audio Player app
  • Integrated SD card storage allows users to store music and audio clips directly on-board the speaker
  • Auto Speaker Test function automatically checks the speaker is working by playing and measuring built-in test tones

Compatible recording platforms

Typical applications

The Axis C1004-E network cabinet speaker provides an all-in-one audio solution that is ideal for a range of indoor applications. Easy installed via Power-over-Ethernet, this versatile speaker allows users to stream background music and deliver live or recorded audio clips through the Axis Audio Player application. Typical applications include supermarkets, waiting areas and service stations.



  • Installation guide
  • AVHS authentication key
  • Axis Camera Station licence key
  • Cable shoe
  • Mounting bracket with screws and washers
  • Axis connector guard

Optional (please select from the dropdown menu above):

  • PoE midspan
  • MicroSD card
Back To Top

Key technical features of the Axis C1004-E

Audio streaming: one-way/two-way
Audio compression: G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps, constant and variable bit rate, built-in microphone (can be disabled)
Speaker: two-way bass-reflex type, speaker component: 12cm dynamic cone speaker, 2.5 cm balanced dome tweeter, max sound pressure level: 96dB, coverage pattern: 130° horizontal by 100° vertical
Amplifier: built-in 6 W Class D amplifier
System integration
Application programming interface: open API for software integration, including VAPIX, Axis Video Hosting System (AVHS) with one-click Connection, Axis Camera Application Platform (ACAP)
Intelligent audio: auto speaker test, event triggers: call, virtual inputs, event actions: file upload: HTTP, network share and email, notification: email, HTTP and TCP, play audio clip, send Auto Speaker Test, send SNMP trap, status LED
Built-in installation aids: test tone verification and identification
Functional monitoring: auto speaker test (verification via built-in microphone)
Music streaming: music playback through Axis Audio Player, offline streaming from SD card and online streaming support
Voice announcement: up to 50 pre-recorded voice announcements through Axis Audio Player, voice announcement through built-in SIP support for connection to any IP telephone /VoiP system and VAPIX support.
Audio synchronisation: built-in audio synchronisation for up to 50 speakers with unicast and hundreds of speakers with multicast, no additional speaker management software or hardware required
VoIP: support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX, tested with: SIP client such as Cisco, Bria and Grandstream and PBX suppliers such as Cisco and Asterisk. supported SIP features: secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN), supported codecs: PCMU, PCMA, opus, L16/16000, L16/8000, speex/8000, speex/16000, G.726-32
Event triggers: virtual inputs, Axis Camera Application Platform (ACAP), call: DTMF, state changes
Event actions: play audio clip, send SNMP trap, send Auto Speaker Test, status LED, file upload via HTTP, network share and email, notification via email, HTTP, HTTPS and TCP
Casing: IP45 and NEMA 3R-rated, plastic and metal casing, colour: white or black options
Memory: 256 MB RAM, 256 MB Flash
Power: Power over Ethernet (PoE) IEEE 802.3af/802.3af Type 1 Class 3 (max: 12.95W)
Connectors: RJ45 10BASE-T/100BASE-TX PoE
Operating conditions: -20°C to 50°C
Dimensions: with bracket: 290 x 200 x 196 mm
Weight: 3.0 kg
Security: password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log
Supported protocols: IPv4/v6c, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk)
Warranty: Axis 3-year warranty
