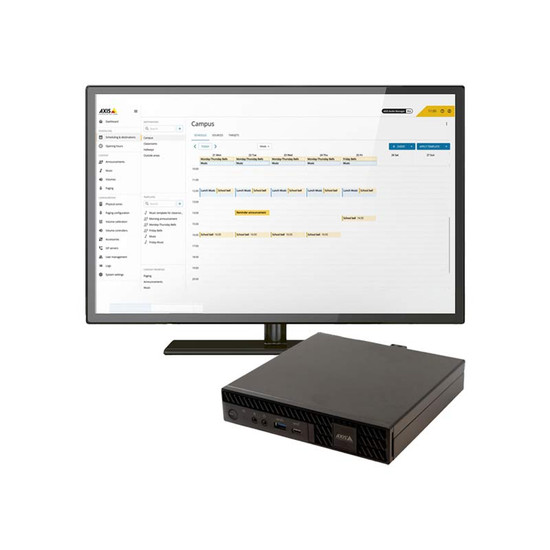

Overview of AXIS Audio Manager Pro C7050 Mk III software and appliance
- Centralised management of AXIS audio devices
- Includes Windows 10 appliance preloaded with software
- Supports up to 5000 devices across 100 zones
- Schedule and broadcast music and messages
- Built-in device status monitoring
Ideal for large CCTV installations requiring centralised audio management, AXIS Audio Manager Pro provides a more advanced audio management solution that builds upon the functionality of AXIS Audio Manager Edge (included with AXIS audio hardware). With support for up to 5000 audio devices in 100 different zones, this software provides setup, zone management, audio content management and audio scheduling for every audio device in your system. Furthermore, the software features real-time configuration, so no downtime is required. This ready-solution provides a dedicated Windows 10 AXIS appliance with AXIS Audio Manager Pro preinstalled and optimised for seamless performance, ready to use straight out of the box.
Application & Functionality
This innovative application provides users with a comprehensive audio management system, featuring management of up to 100 zones, operators can control all audio devices across their system from one centralised location. Audio scheduling is also made easy through this interface, enabling audio content or messages to be triggered at certain times or by a specified event – enhancing operational efficiency and improving the deterrence of undesirable behaviour. To improve the ambience of the surveillance area, background music can be set to play in selected zones. Additionally, this software also enables operators to monitor device status and identify any errors or power failures immediately.
Integration
AXIS Audio Manager Pro is preinstalled on the dedicated Windows 10 appliance, so there’s no need to set up the software separately. Just connect the unit to your network and power it on. It’s ready to manage AXIS network speakers and SIP-compatible devices with minimal configuration.
AXIS Audio Manager Edge vs AXIS Audio Manager Pro
All AXIS speakers come with AXIS Audio Manager Edge as standard, however, AXIS Audio Manager Pro is best suited for larger installations. Please see the below table to determine which version of AXIS Audio Manager is right for your system:
| AXIS Audio Manager Edge | AXIS Audio Manager Pro | |
| Zones | 20 | 100 |
| Scheduling | Weekly | Advanced |
| Priority levels | Unlimited | 10 |
| Speakers (local site) | 200 | 5000 |
Key technical features of the AXIS Audio Manager Pro C7050 Mk III
AXIS Audio Manager Pro C7050 Mk III |
|
Hardware |
|
| Processor: | Intel® CoreTM i3-12100T |
| Storage: | 256 GB SSD (Operating system drive) |
| Graphics card: | Intel® UHD graphics |
| Power: | Max 90 W, 100–240 V AC, 1.5 A 50/60 Hz,
19,5 V DC, 4,62 A External AC/DC adapter |
| Connectors: | Front side:
1x Audio line in/out 1x Universal audio jack 1x USB 3.2 1x USB 3.2 gen 2x2 USB-C port Rear side: 1x RJ45 Ethernet 4x USB 3.2 2x DisplayPort TM 1.4a |
General |
|
| Operating system: | Microsoft® Windows®
10 IoT Enterprise LTSC 2021 Built-in operating system recovery: yes |
| Security: | Support for encrypted operating system drive
FIPS 140-2 level 2 certified Trusted Platform Module (TPM 2.0) |
| Operating conditions: | 0 °C to 45 °C (32 °F to 113 °F)
Humidity 20–80% RH (non-condensing) |
| Dimensions: | 182 x 36 x 178 mm (7.2 x 1.4 x 7.0 in) |
| Weight: | 1.1 kg (2.4 Ibs) |
| Included accessories: | AC power adapter with wall plug power cord |
| Services: | Next Business Day Onsite Support |
| Warranty: | 5-year AXIS warranty |
AXIS Audio Manager Pro |
|
General |
|
| Configuration: | Up to 5000 audio devices and 100 zones |
| Operating system: | Windows 10 IoT 2016 LTSB, Windows Server 2016, 2019 |
| Audio sources: | AXIS network audio products with audio line-in or mic input
Internet radio supported file formats: m3u, pls, asx Two-way communication (SIP) |
| Audio streaming: | Opus 48 kHz stereo with 64, 192 or 320 kbps |
| Audio files: | Supported audio file formats: mp3, mp4, mpeg, aac, wma, ogg, flac, wav |
| VoIP: | L16 mono, G.722, G.711u, G.711a |
| Network protocols: | IPv4, HTTP, HTTPS, DNS, NTP, RTP, RTSP, TCP, UDP, DHCP, SIP, mDNS, M3U |
