Axis Communications | 01024-001
Axis Companion 360 indoor 360° panoramic IP camera with 6MP resolution, HDMI output, edge storage and PoE
This product is discontinued, an alternative model is the Axis M4327-P

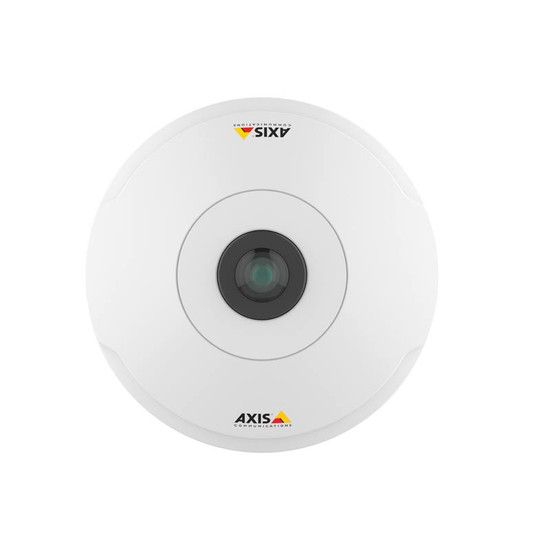

Overview of the Axis Companion 360
This affordable indoor IP camera by Axis features a 6 megapixel sensor and provides high quality 360° overviews of indoor locations. Part of the Axis Companion Series, this model features an ultra-compact design for unobtrusive surveillance and can be easily installed using Power-over-Ethernet (PoE). Additional features include edge recording and remote access via the free Axis Companion application.
The free Axis Companion application software is available as a PC client or mobile application for iOS and Android devices and enables remote access to live views and playbacks of recordings for up to 16 camera channels. Additionally, an integrated HDMI output allows the connection of a monitor to display live footage from the camera.
The units hemispheric lens delivers full 360° overviews to ensure footage is captured from all angles and blind spots are eliminated. The Axis Companion client-side dewarping software offers multiple viewing mode such as quad viewing and allows the original 360° image to be seen with less distortion. In addition, the client software supports digital PTZ controls to enable quick examination of specific areas of the image in greater detail.
Axis Companion application software can be used alongside camera-based video motion detection alerts to trigger recording to the on-board MicroSD card (not included) - delivering reliable security monitoring. Users can also use one of the Axis Companion recorders to increase storage space up to 4TB and provide an all-in-one monitoring and recording solution that is ideal for small business applications.
Support for Axis' Zipstream technology optimises the stream, reducing the bandwidth by separating areas of interest to maintain a higher quality than areas of little interest. In addition, PoE supplies the camera with both power and network connectivity over a single cable - enabling quick and cost-effective installation.
Please note: this camera does not come with a power supply, please select a midspan from the above dropdown menu if required.
Key features & benefits
- 6MP sensor delivers high-quality, 360° overviews of indoor locations at up to 30 frames per second
- Axis Companion client software supports multiple viewing modes to allow areas of the scene to be seen with little distortion
- Factory-focused lens eliminate the need for manual focusing - enabling quick and easy installation
- Palm-sized unit is ideal for small indoor areas that require unobtrusive CCTV surveillance
- WDR - Dynamic Contrast enables details in complex lighting conditions to be viewed clearly
- Configurable, camera-based video motion detection alarms help to enhance security monitoring
- Simple video management for up to 16 cameras using the free Axis Companion application
- Live footage from the camera can be displayed when a monitor is connected through the HDMI output
- On-board storage to MicroSD card (not included) provides a backup in case of network failure
- Axis Zipstream technology lowers bandwidth and storage - whilst maintaining resolution and frame rate
- PoE supplies both power and network connection through one cable for a cost-effective installation
Typical applications
This affordable Axis Companion 360 IP camera is ideal for small business applications that require non-invasive surveillance with high resolution, 360° overviews. Typical applications include independent retail stores, small open plan offices and libraries.
Accessories
Included:
- Installation Guide
- Windows decoder 1-user license
- Drill hole template
Optional (please select in the dropdown menu above):
- PoE midspan
- MicroSD card
Key technical features of the Axis Companion 360
Camera
|
|
Environment: | indoor |
Type: | fixed iris, fixed focus |
Sensor: | 1/1.8" progressive scan RGB CMOS |
Lens: | fixed iris, fixed focus 1.6mm, F2.8 horizontal field of view: 185°, vertical field of view 185° |
Memory: | 1024 MB RAM, 256 MB flash |
Power: | Power-over-Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2, typical 4.2 W, max 6.49 W |
Video
|
|
Resolution: | 360° overview: 2048x2048 to 480x480 panorama: 2304x648 to 640x240 double panorama: 2304x1296 to 480x360 quad view: 2304x1296 to 480x360 view area: 1920x1440 to 480x360 corner left or right: 1920x720 to 640x240 double corner: 1920x1440 to 480x360 corridor: 2304x1296 to 480x360 |
Compression: | H.264 (MJPEG-4 part 10/AVC) baseline, main and high profiles Motion JPEG |
Frame-rate: | 360° overview only, up to 2048x2048: 30 fps 360° overview up to 1920x1920 + HDMI output: 15 fps |
Bandwidth control: | multiple, individually configurable streams in H.264 and Motion JPEG, Axis Zipstream technology in H.264, controllable frame rate and bandwidth VBR/MBR H.264 HDMI |
Video overlay: | text and image |
Day/night: | no |
Minimum illumination: | 0.3 lux at 50 IRE F2.8 |
Imaging: | compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, WDR - dynamic contrast, noise reduction, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images |
Viewing, detection & recording
|
|
Privacy masking: | yes |
Number of users: | not given |
Alarm detection: | video motion detection, analytics, edge storage events |
Alarm action: | video recording to edge storage and pre and post alarm video buffering |
Pre-/post-alarm buffer: | yes |
On-camera recording: | microSD/microSDHC/microSDXC card/Axis Companion recorder, support for recording to dedicated NAS |
Direct-to-NAS storage: | yes |
Recording software included: | Axis Companion and Axis Video Hosting System (AVHS) |
Connections
|
|
Network: | RJ45 10BASE-T/100BASE-TX PoE HDMI Type Da |
Audio: | not given |
Alarm I/O: | not given |
Video: | not given |
Other
|
|
Dimensions: | height: 46 (1.8 in) ø 101 mm (4.0 in) |
Weight: | main unit: 2.4kg |
Warranty: | 3 years |
Operating temperatures: | -0 °C to 40 °C |
Power consumption: | max 6.49 W |
Dynamic DNS: | no |
Protocols supported: | IIPv4/v6, HTTP, HTTPS, SSL/TLS, CIFS/SMB, Bonjour, UPnPTM, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP. ARP, SOCKS, HDMI 1.4b |
QoS: | no |
Security: | password protection, network access control, digest authentication, Axis secure remote access, SD card encryption |
ONVIF compliant: | no |
