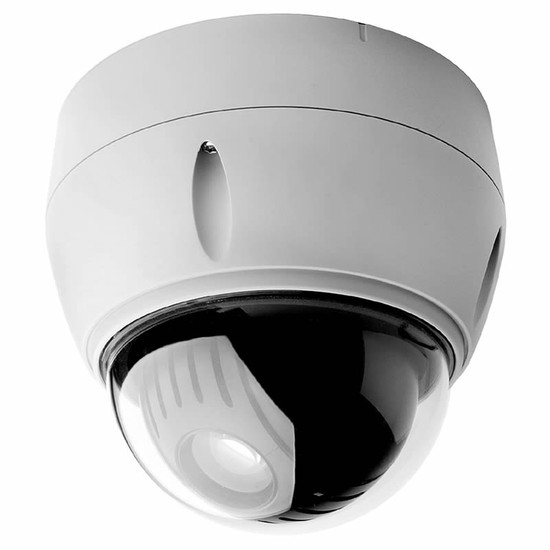

Vista VK2 1080XVRDPTZ outdoor vandal-resistant PTZ dome IP camera with HD 1080p (60 fps), 360° pan, 12x optical zoom, PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

Overview of the VK2 1080XVRDPTZ

This product is discontinued, an alternative model is the Axis M5525-E

Capable of HD 1080p at up to 60 images per second, the F-series Vista VK2 1080XVRDPTZ compact IK10 and IP66 rated dome PTZ network camera provides high-end surveillance with 12x optical zoom and 360° endless panning, an auto-focus varifocal lens and automatic day/night switching for robust 24/7 CCTV. Also comprises Vista’s Triple Streaming and Event Boost bandwidth saving technologies, integrated video motion detection, two-way audio ability and support for Power-over-Ethernet (PoE) to make installation easier. Includes support for edge recording as well as the free 32-channel Vista VK2-CLIENT video management and recording software. This Vista VK2-1080XVRDPTZ PTZ dome camera provides value-for-money and high quality surveillance, suitable for demanding outdoor applications.

The small-sized VK2-1080XVRDPTZ outdoor dome IP camera is part of Vista’s advanced F-series and delivers high frame rate surveillance up to 60 images per second in full HD 1080p resolution, ideal for critical monitoring in fast-paced environments, such as freight terminals and logistical centres. 360° endless panning, 12x optical zoom and 90° tilt enable this camera to effectively monitor large areas in detail, with the auto-focus varifocal lens providing clear, focused image capturing. An automatic infrared-cut filter provides the VK2-1080XVRDPTZ with true day/night functionality for full colour image capture in the day and monochrome image capture at night, providing 24-hour CCTV security. The camera is IK10-rated for tamper-resistance and IP66-rated to withstand dust and heavy rain.

Audio support enables a speaker and microphone to be added (not included) so that sound from the camera’s surroundings can be captured to assist with event analysis, whilst verbal interaction is possible to take place via the camera also. This Vista IP-based CCTV camera delivers accurate and reliable security monitoring through its advanced video motion detection capabilities including tampering and object detection. Clear images are produced in smokey or misty conditions through the camera's defog feature. Noise reduction technology enables the camera to produce high quality images in low light and wide dynamic range improves image capture in scenes that have contrasting light situations.

Users can conserve bandwidth and storage capacity with the Vista Event Boost function, which only records detected activity in high frame rate whilst otherwise continuous recording can take place at a lower frame rate. Additionally, Triple Streaming available in H.264, Motion JPEG or MPEG-4 provides the possibility to individually configure three streams for specific uses. PoE provides for easy and low-cost installation via the Ethernet cable. VK2-CLIENT recording software is included with video management for up to 32 cameras whilst iOS and Android apps also provide remote access to the camera system via tablets and smartphones.

Please note: this camera does note come with a power supply, please select from the above drop down menu if required.

Key features & benefits

  • HD 1080p capability at 60 fps providing suitable frame rate for fast paced applications such as traffic, logistical centres and train stations/li>
  • 360° pan, tilt and 12x optical zoom provides in-detail area coverage with a single camera, and high quality zooming for identification
  • IK10 and IP66 rated dome casing is unobtrusive and durable, able to be used outdoors and protected against impact from possible vandalism
  • True day/night capability provides 24-hour surveillance, full colour in daytime switching to mono at night-time
  • Two-way audio is possible through audio input and output for a microphone and speaker (not included), to facilitate audio capture and verbal interaction
  • Wide dynamic range provides good image capture at entrances and exits, where scenes may have harsh backlighting and can often saturate objects
  • Noise reduction provides good low light capability, reducing image blur for clearer footage, defog feature to provide clarity in hazy conditions
  • Triple Streaming and Event Boost technologies reduce demand for bandwidth and storage for a more efficient IP video system
  • Advanced video motion detection also includes tampering and object detection
  • PoE provides simple installation with just a single cable
  • Included recording software with support for 32 channels
  • Mobile support via iOS and Android apps provides an ideal monitoring method for company owners and managers on the move

Compatible recording platforms:

Typical applications

HD 1080p at 60 fps, pan-tilt-zoom functionality and the IP66 and IK10 rated dome casing make the Vista VK2-1080XVRDPTZ dome IP camera ideal for fast-paced, demanding outdoor applications where high quality surveillance is required at all times and in a high frame rates, suitable for in-depth event analysis and for use as evidence. Typical examples include banks, prisons, shipping yards, ferry terminals, POS points, and traffic and city surveillance.



  • Vista VK2-CLIENT 32 channel recording software
  • Installation guide/CD
  • Template sheet
  • Mounting bracket
  • Safety lanyard
  • RJ-45 coupler
  • Accessory kit


  • PoE midspan (please select from above drop down menu if required)
  • Mounting brackets (please select from above drop down menu if required):
Back To Top

Key technical features of the Vista VK2 1080BIR3V9F

Environment:outdoor, vandal-resistant (IK10 and IP66 rated)
Type:fully functional, pan-tilt-zoom dome
Sensor:1/2.8” progressive scan Sony CMOS
Lens:4.8mm – 64.2° (H) /57.6mm – 5.9° (H), 12x A/F optical zoom, 16x digital zoom
PTZ:pan range: 360° endless, pan speed: 380°/sec, max preset speed: 380°/sec, tilt range 0° ~ 90°, tilt speed max: 300°, preset: 380°/sec, no. of presets 240
Power:AC24V, DC12V, hPoE 802.3at Class 3
Audio:two-way audio, G711 compression
Resolution:1920x1080p, 1280x720p
Compression:H.264 (BP/MP/HP), MJPEG
Frame-rate:1080p @ 50ips (dual stream), 1080p @ 30ips (triple stream), 720p@30ipsp
Bandwidth control:triple stream (2x H.264 and 1x MJPEG), Event Boost
Day/night:true day night with removable IR cut filter
Minimum illumination:colour: 0.5Lux, B/W: 0.1Lux (F1.8, 50IRE)
Imaging:auto exposure, white balance, ATR-EX (D-WDR) wide dynamic range, digital image stabilisation, back light compensation
Viewing, detection & recording
Privacy masking:8 zones
Number of users:10
Alarm detection:intelligent video motion detection with tampering, defog and object detection
Alarm action:FTP image upload, pre-recorded voice alert
Pre-/post-alarm buffer:yes pre and post
On-camera recording:CHECK
Direct-to-NAS storage:yes
Recording software included:V2K-CLIENT for up to 32 video channels
Mobile support:iOS and Android app
Power:AC24V, DC12V, hPoE 802.3at Class 3
Network:RS485 10/100Mbps
Audio:in x 1/out x 1 (G.711)
Alarm:in x 2/out x 1
Dimensions in mm:(Dia)154 x 140(H)
Weight:1.6 kg
Warranty:3 years
Mounting methods:wall or ceiling
Operating temperatures:-10°C ~ +45°C
Power consumption:12 W
Dynamic DNS:yes
Protocols supported:IPv4/IPv6, Manual, TCP/IP, UDP, HTTP, RTP, RTSP, NTP
Security:IP filtering, HTTPS, SSL
ONVIF compliant:yes
