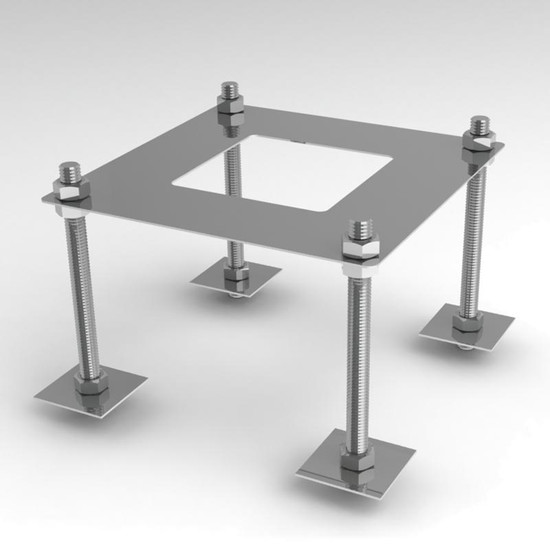

Overview of the Standard 4 stud root foundation for 4m - 8m flange mounted CCTV towers & columns (FM4H)
- Root foundation to enable flange mounting of CCTV towers & columns
- Facilitates mounting columns & towers onto concrete bases
- Supports tower & column heights up to 8 metres
- 4 stud arrangement with M24 top & bottom fixing studs
- 355m base plate dimensions
This root foundation assembly enables flange mounting for CCTV towers & columns up to a height of 8 metres. Facilitates mounting foundation into excavated areas prior to being filled with concrete.
Suitable for a range of lattice, square, tubular and modular pole models including tilt-down variants. Features a mounting base plate with 4 screws, M24 fixing studs and bottom plates for added stability during install.
Model variants
- Standard 4 stud root foundation (FM4H) - suitable for a maximum height of 8 metres.
- 8 stud root foundation (FM8H) - suitable for heights of 10 metres and above
Compatibility
| Tower model | 4 metre | 5 metre | 6 metre | 8 metre | 10 metre + |
| Lattice tilt-down (WD) | FM4H | FM4H | FM4H | FM4H | FM8H |
| Square steel tilt-down (TPS) | FM4H | FM4H | FM4H | FM4H | FM8H |
| Square steel stitc (FMS) | FM4H | FM4H | FM4H | FM4H | FM8H |
| Tubular steel tilt-down (TPT) | FM4H | FM4H | FM4H | FM4H | FM8H |
| Tubular steel static (FMT) | FM4H | FM4H | FM4H | FM4H | FM8H |
| Modular tilt-down (MTP) | FM4H | FM4H | FM4H |
Delivery
Due to the size, weight and nature of these products, an additional delivery charge will be applied. Our trained engineers can offer installation. To receive a detailed and personalised quote, please contact us directly.
