CCTV column, static, steel square section, flange mount, height 3m - 10m (FMS)

Overview of the CCTV column, static, steel square section, flange mount, height 3m - 10m

• Square steel section, static CCTV column
• A cost effective solution for achieving desired camera height
• Flange mount installation
• Available in heights up to 10 metres
• Loading weight up to 25kg

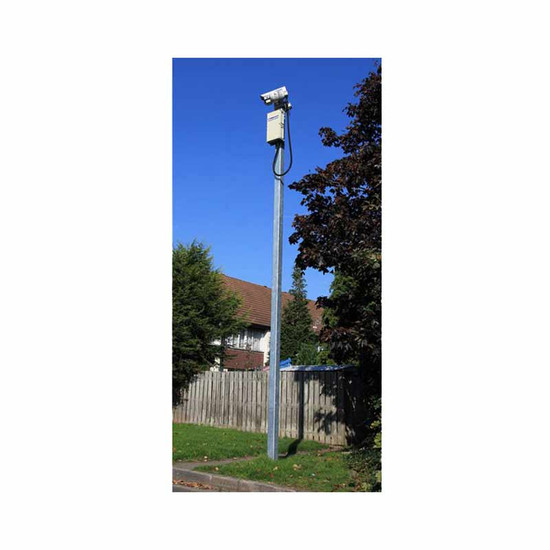

These square steel static CCTV columns offer a cost-effective way to mount IP cameras in public outdoor areas. Designed for flange mounting to a root foundation base, they provide a sturdy mounting point at height while keeping overall project and installation costs down.

Constructed from galvanised steel for durability, and flange mounted for excellent stability, these CCTV columns are ideal for installation in public areas such as car parks, roadsides and residential areas.

Installation

These CCTV columns are available in standard heights of 3-10 metres. Optional foundation roots in 4-stud and 8-stud variants are also available. A range of pole-top adaptors allows flexible installation for cameras in varying orientations. Cabling is concealed within the column with built-in cable entry and exit points.

Please note: You must select a suitable foundation root/base for the column height you need. This will be delivered separately to the column, allowing you time to install it and for the concrete to set before the column can be mounted. Prior to purchase, we recommend to consult the datasheet for the advised base and windload specification required for your location, and excavate as per recommended area and depth. Cable ducts are separate.

Delivery

Due to the size, weight and nature of these products, an additional delivery charge will be applied. Our trained engineers can offer installation. To receive a detailed and personalised quote including installation costs, please contact us directly.

Key technical features for the CCTV column, static, steel square section, flange mount, height 3m - 10m
