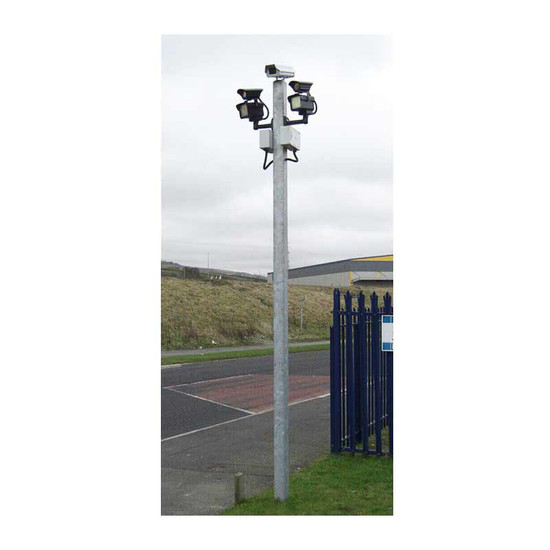

CCTV column, static, steel square, burial installation, height 4m - 10m (DBS)

Overview of the CCTV column, static, steel square, burial installation, height 4m - 10m

• Square steel, static CCTV column
• A cost effective solution for achieving desired camera height
• Direct burial installation
• Available in heights up to 10 metres
• Loading weight up to 25kg

These square steel section static CCTV columns offer a cost-effective way to mount IP cameras in public outdoor areas. Designed for permanent burial installation in a concrete base, they provide a sturdy mounting point at height while keeping overall project and installation costs down.

Constructed from galvanised steel for durability, and with direct burial installation for excellent stability, these CCTV columns are ideal for installation in public areas such as car parks, roadsides and residential areas.

Installation

These CCTV columns are available in standard heights of 4-8 metres. These steel square CCTV columns are installed using direct burial. A hole must be excavated to the required depth, the column is positioned, and the base is then securely backfilled with concrete to ensure a stable, permanent installation. Prior to purchase, we recommend to consult the datasheet for the advised base and windload specification required for your location, and excavate as per recommended area and depth. Cable ducts are separate.

A range of pole-top adaptors allows flexible installation for cameras in varying orientations. Cabling is concealed within the column with built-in cable entry and exit points.

Delivery

Due to the size, weight and nature of these products, an additional delivery charge will be applied. Our trained engineers can offer installation. To receive a detailed and personalised quote including installation costs, please contact us directly.

Key technical features for the CCTV column, static, steel square, burial installation, height 4m - 10m
