Sony | SNC-WR602C

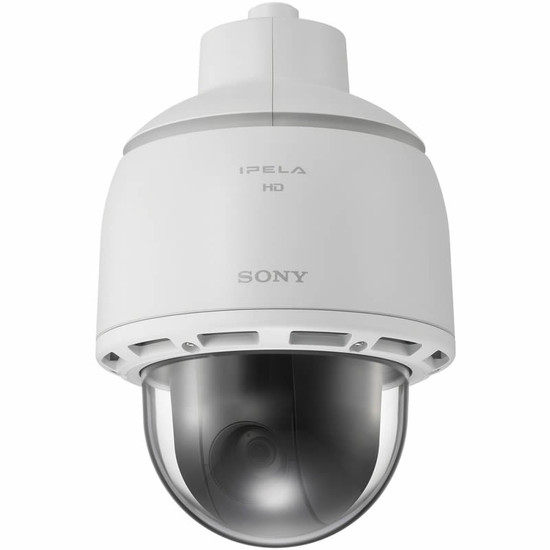

Sony SNC-WR602C outdoor rapid dome PTZ dome IP camera with HD 720p at 60 fps, 30x optical zoom, 130dB WDR and PoE
Part of the Sony W-series, this outdoor-ready PTZ dome features full pan/tilt functionality with 30x optical zooming - enabling fast and precise monitoring 24-hours a day. Smartphone viewing also provides flexible on-the-go monitoring.
- DEPA Advanced analytics included
- Gyroscopic image stabiliser reduces blur
- Audio I/O ports for two-way communication
- 360° endless pan & 30x optical zoom
- HD 720p resolution
This product is discontinued, an alternative model is the Bosch AUTODOME IP Starlight 5000i.
Overview of the Sony SNC-WR602C
High performance IK10 & IP66-rated Sony SNC-WR602C outdoor pan-tilt-zoom network dome HD camera with a highly sensitive Exmor™ CMOS sensor, 60 frames per second capability, 130dB wide dynamic range (WDR) and intelligent analytics for critical applications.
Part of the Sony W-series of high-level network cameras, the Sony SNC-WR602C pan-tilt-zoom camera with HD 720p resolution delivers high quality image reproduction through Sony's Visibility Enhancer (VE) feature, at up to 60 frames per second. Fast and precise PTZ operation with 30x optical zoom and 360° endless panning provides users with a useful tool for tracking fast-paced events in detail. The Sony Exmor™ CMOS sensor is highly sensitive and when combined with true day/night functionality and Sony's Excellent Dynamic Noise Reduction (XDNR) technology, the SNC-WR602C can produce clear video footage free from motion blur at all times. The removable infrared cut filter can also be used alongside infrared LEDs for longer range night vision in complete darkness.
Smartphone support enables the Sony SNC-WR602C network camera to be remotely controlled using simple touch screen methods, ideal for business managers on the move. View-DR technology delivers a 130dB wide dynamic range at up to 30 fps, enabling the camera to cope with challenging and constantly adapting lighting conditions. Defog technology improves visibility in images captured in smoke, haze or fog and makes the SNC-WR602C suitable for use in applications subject to such conditions. Gyroscopic image stabilisation also enables this camera to be effectively used in areas subject to movement such as vibrations, as the technology offsets the affects of camera movement, preventing motion blur and creating crisp images.
The SNC-WR602C not only offers high quality surveillance but also accurate and reliable monitoring with intelligent video analytics providing configurable alarm triggers. Power over Ethernet (PoE) support enables quick and simple installation using a single cable for power and network connectivity. Edge recording onto an SD card (not included) provides back up storage in case of a network failure. High-profile H.264 compression provides optimal video quality at lower bandwidth, reducing storage space required.
An indoor version of this camera is also available.
Please note: this camera does come with a PoE+ midspan included, please select one from the accessories tab if required.
Key features & benefits
- Sony IPELA ENGINE EX signal processing provides advanced imaging technologies including 130dB wide dynamic range at HD resolution (30 fps), Visibility Enhancer (VE) for optimised brightness and colour reproduction and XDNR (Excellent Dynamic Noise Reduction) for clear low-light images free from motion blur
- Sony DEPA advanced intelligent video analytics provide tamper, object and face detection
- High speed 360° panning powerful 30x optical zoom provides full circle coverage of a desired area, removing the need for additional cameras to capture blind spots
- HD 720p at 60 fps delivers high quality video footage suitable for demanding applications such as casinos, banks and police stations
- True day/night functionality provides 24/7 high quality surveillance, even during dark conditions
- IK10 and IP66-rated outdoor casing can withstand rain and dust, providing reliable, robust outdoor surveillance
- Intelligent video analytics automatically alerts the user when an alarm is triggered via email for secure area monitoring
- Two-way audio enables verbal interaction through the camera to give warnings, whilst also recording sound to complement video footage
- Gyroscopic Image Stabiliser prevents camera movement from distorting images so video footage is crisp and detailed
- PoE+ powers the camera and all its features through the network cable for fast, easy installation and maintenance
- SD card recording provides a completely decentralised recording solution, storing data locally onto an integrated SD card (SD card not included)
- Smartphone viewing provides convenient remote access via mobile devices from anywhere
Typical applications
The Sony SNC-WR602C network camera offers advanced outdoor surveillance and is ideal for monitoring fast pace outdoor areas where high detail footage is critical such as casinos, hospitals and prisons. The high frame rate capability of this camera also makes it suitable for airports and traffic surveillance.
Accessories
Included:
- CD-ROM (supplied programs)
- Installation manual
- Dome cover
- Top sunshade
- Coupling
- Wire-fixing belt
- Wire bracket
- Bolts
- Power supply connector 3-pin
- I/O harness 14-pin
- Harness band
- Band mount
- Connection board (with BNC)
Optional (select from the above dropdown menu & accessories tab):
- PoE+ midspan
- SD card
- Mounting accessory
Key technical features for Sony SNC-WR602C
Camera |
|
Environment: | IP66 & IK10 rated outdoor network camera |
Type: | PTZ speed dome IP camera |
Sensor: | 1/2.8-type progressive scan Exmor CMOS sensor |
Lens: | auto-focus zoom lens, horizontal viewing angle: 58.3° to 2.1°, focal length f = 4.3 mm to 129.0 mm, F-Number F1.6 (wide) to F4.7 (tele) |
PTZ: | pan/tilt angle (powered) 360° endless rotation/220°, pan speed 700°/s (max.), tilt speed 700°/s (max.), number of preset positions: 256, number of tour programs: 5, optical zoom: 30x, digital zoom: 12x, total zoom 360x |
Power: | HPoE+ system, AC 24 V |
Audio: | G.711/G.726/AAC (16 kHz, 48 kHz) |
Compatibility: | Windows XP (32 bit) Professional Edition, Windows Vista (32 bit) Ultimate, Business Edition, Windows 7 (32/64 bit) Ultimate, Professional Edition, Windows 8 Pro (32/64 bit), Microsoft DirectX 9.0c or higher, Intel Corei7 2.8 GHz or higher, Microsoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver 10.0, Firefox Ver. 19.02 (plug-in free viewer only), Safari Ver. 5.1 (plug-in free viewer only), Google Chrome Ver. 25.0 (plug-in free viewer only) |
Video |
|
Resolution: | 1280 x 720, 1024 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640 x 360, 352 x 288, 320 x 184, (H.264, JPEG) |
Compression: | H.264 (high/main/baseline profile), JPEG |
Frame-rate: | H.264: 60 fps (1280 x 720), JPEG: 60 fps (1280 x 720) |
Bandwidth control: | CBR/VBR (selectable), 64 Kbps to 32 Mbps |
Day/night: | automatic IR cut filter |
Minimum illumination: | 50 IRE: colour: 1.0 lx (F1.6, View-DR off, VE off, AGC on, 1/30 s, 30 fps), B/W: 0.03 lx (F1.6, View-DR off, VE off, AGC on, 1/30 s, 30 fps), 30 IRE: TBD |
Imaging: | View-DR wide dynamic range, visibility enhancer, XDNR noise reduction, image stabiliser, defog, gyroscopic image stabiliser, white balance, e-flip |
Viewing, detection & recording |
|
Privacy masking: | 12 quadrangle zones, opaque 14 colours (black, white, red, green, blue, cyan, yellow, magenta, grey (6 scales)), mosaic |
Number of users: | 20 |
Alarm detection: | passing, intrusion, left object detection, removed object detection, tamper alarm, face detection, intelligent video analytics, DEPA advanced analytics architecture |
Alarm action: | recording, email |
On-camera recording: | 4/8/16/32 GB SDHC (no support for SDXC) |
Recording software included: | n/a |
Connections |
|
Power: | HPoE+ system, AC 24 V |
Network: | 10BASE-T/100BASE-TX (RJ-45) |
Analogue video: | BNC x1, 1.0 Vp-p, 75 Ω, unbalance, sync negative |
Microphone input: | mini jack (monaural), MIC IN/LINE IN: 2.5 V DC plug-in power |
Line I/O: | line input: mini jack (monaural), line output: mini jack (monaural), maximum output level: 1 Vrms |
Alarm I/O: | alarm input (sensor input) x4, make contact, break contact, alarm output x2, 24 V AC/DC, 1 A (mechanical relay outputs electrically isolated from the camera)/td> |
Serial interface: | RS-422/RS-485 (PELCO D protocol) |
Other |
|
Dimensions: | ø222.0 mm x 324.1 mm |
Weight: | 4.1kg (net) |
Colour: | top sunshade: 6.4GY 8.0/0.3, coupling: 3.6GY 8.4/0.3, top cabinet: 3.6GY 8.4/0.3, sun shade: 6.4GY 8.0/0.3, dome flange: 3.6GY 8.4/0.3 |
Warranty: | 3 years |
Mounting methods: | ceiling |
Operating temperatures: | -40°C to +50°C (AC 24 V) -30°C to +50°C (HPoE+) *2 |
Power consumption: | Max. 30.0 W (AC 24 V/HPoE+, heater OFF) *2, Max. 80.0 W (AC 24 V, heater ON), Max. 55.0 W (HPoE+, heater ON) *2 |
Dynamic DNS: | no |
Protocols supported: | IPv4, TCP, UDP, ARP, ICMP, IGMP*2, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL |
QoS: | DSCP |
ONVIF compliant: | yes profile S |
