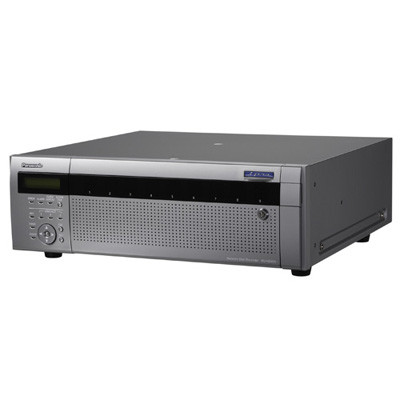

Panasonic i-Pro WJ-ND400 64 channel network video recorder with up to 54TB of storage

This product is discontinued, for alternatives please see Panasonic i-PRO

The WJ-ND400 is a high performance digital network disk recorder providing live image monitoring, recording and playback for up to 64 IP CCTV security cameras.

Each camera can be set to record using various methods such as manual, event or emergency recording as well as simply using a timed daily schedule. Audio recording and playback is supported for i-Pro cameras and a wide range of alarm input/outputs allow easy integration into a buildings security system.

Scalable on-board storage up to 54TB provides flexibility allowing you to retain more data or add new cameras when required. The WJ-ND400 can be used in multi-site installations allowing you to link up to 100 units using Panasonic ASM100 management software.

Panasonic WJ-ND400 - Key benefits:

• Use instead of a PC/server based solution for hassle free installation, day-to-day reliability and user-friendly control
• Optimised specifically for IP CCTV surveillance. Connect up to 64 cameras at full resolution and full frame rate in confidence
• Multi-recorder and multi-site recording support allows your organisation to centrally locate all of its CCTV security

Panasonic WJ-ND400 - Key features:

• Multi-format: MPEG-4, JPEG, MJPEG support
• 64 cameras can be connected and set to record simultaneously
• Supports Panasonic i-Pro range, Panasonic BL+BB ranges and limited support for Axis cameras and video encoders
• 200mbps bandwidth making it ideal for megapixel streaming
• Recording can be initiated manually, on event or emergency recording or based on a timed daily schedule
• Pan, tilt and zoom can all be controlled for compatible i-Pro cameras, plus support for preset positions, focus and brightness settings and other camera functions
• Audio recording and playback for compatible Panasonic i-Pro cameras
• Playback controls by time/date or jump to last recording
• Display modes: spot, spot sequence, quad (16 patterns), quad sequence
• Grouping of cameras (max. 8 groups) can be configured to allow for efficient monitoring
• Search facilities allow you to search through your records by date/time, event type or camera
• Smart searching using video motion detection allows you to search through recordings based on movement in a specific area within a scene
• 2x-4x digital zoom
• Image export to PC allows playback using supplied viewer application (download)
• Wide range of alarm inputs and outputs allow for easy integration into a buildings security system
• 16 simultaneous users can monitor and control the WJ-ND400 simultaneously
• Security comprises of multi-level user authentication (up to 32 registered users) and host authentication
• FTP image transfer by event or periodic transfer
• Performance measurement function to help set up camera settings and frame rates
• Automatic backup feature allows images to be transferred from compatible Panasonic i-Pro cameras in the event of network problems
• Alteration detection and recorded data encryption allows for data security
• Store up to 54TB of video data (select storage required from above dropdown)
• RAID5/6 redundant recording for data security
• Embedded operating system optimised for IP CCTV surveillance provides reliability over PC/Server based systems

Panasonic WJ-ND400 - Key technical indicators:

• Supported image formats: MPEG-4, JPEG, MJPEG
• Supported cameras: Panasonic i-Pro series network cameras, limited support for Panasonic consumer-based cameras BL/BB range and Axis range of cameras/video encoders
• Supported image resolutions: 3840 x 2160 to 320 x 180 (dependent on camera)
• Audio compression: G.726 (ADPCM) 32kbps
• Max. number of cameras: 64
• Recording mode: Manual, Schedule including Event (pre/post), Emergency
• Pre-event recording: up to 15mins with dedicated HDD for Pre-Event. Shorter pre-event recording is possible without dedicated HDD
• Scheduled recording mode: 8 programs, 6 time zones/day, independent setup for each day of the week
• Frame rate per camera: up to 60fps (depending on camera)
• Camera control: Pan/tilt, zoom, focus, brightness, preset position call and program (up to 256), auto mode
• REC/playback control: REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record, Next Record, Prev Image, Next Image, Goto Date, Goto Last (5 sec. to 5min.), Area select
• Filtered search: Time/date, event type, camera number, VMD search (one detection area per search). VMD searching available on compatible Panasonic i-Pro cameras
• Display mode: Spot/Quad (16 patterns), Spot sequence, Quad sequence (live only)
• Camera grouping: 8 groups each with 16 character title
• Image download: Recorded data can be downloaded to a PC. Viewer software can be downloaded separately
• SD memory data download: Images recorded on the SD card in a compatible i-Pro series camera can be automatically stored on the recorder
• Digital zoom: 2x, 4x
• GUI language: English, French, Italian, Spanish, German, Russian, Chinese, Japanese
• Supported OS: Microsoft Windows Vista Business 32 bit, Microsoft Windows XP Home Edition SP2, Microsoft Windows XP Professional SP2
• Supported browser: Microsoft Internet Explorer V7.0, Microsoft Internet Explorer V6.0 SP2
• Alarm source: 32x Terminal inputs, 64x camera alarms, Panasonic alarm protocol
• Alarm action: Alarm recording, e-mail notification, alarm message, camera positioning, FTP image transfer, terminal output, Panasonic alarm protocol output, buzzer, LED
• Maximum bandwidth: 200Mpbs
• Bandwidth control: 32Kbps / 64Kbps / 128Kbps / 256Kbps / 512Kbps / 1024Kbps / 2Mbps / 5Mbps / 10Mbps and unlimited
• Supported protocols: TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, RTP
• Email: on alarm or warning
• FTP client: on alarm or periodic transfer
• No. simultaneous users: 16
• Security: User authentication (ID and password), Host authentication (IP address), Alteration detection, HTTP port no. (1-65,535 except for reserved numbers), FTP port no. (1-65,535 except for reserved numbers)
• HDD type: 3.5 inch serial ATA HDD (factory default), up to 9x HDDS can be installed
• Max. capacity: 54HDD slots (with 5x extension units each with 9x HDDs installed) giving max. of 54TB of storage
• RAID: RAID5/6 supported
• Power: 220 to 240V AC, 50Hz
• Power consumption: 170w
• Operating temperature: 5°C to 45°C (41°F to 113°F)
• Dimensions: (HxWxD) 132 x 430 x 400mm
• Weight: 14kg (30.9lbs)

Panasonic WJ-ND400 - Supported cameras:

• Full Support for all Panasonic i-Pro cameras

Panasonic WJ-ND400 - Connections:

• Camera/client port: 10Base-T / 100Base-TX / 1000Base-T (RJ-45)
• Maintenance port: 10Base-T (RJ-45)
• Alarm connector: Alarm input 1 - 7, 17 – 32
• Alarm/Control connector: Alarm input 8 - 16, 1x Alarm output, 1x Alarm reset input, 1x Alarm suspend input, Emergency recording input, Power outage detection input, External recording mode switching, Power outage recovery completion output, time adjustment input/output, +5 V output, Network error output, Available disk space warning output, Warning HDD error output, Camera error output, error output
• EXT Storage High-speed serial interface 1.5 Gbps (theoretical value) Only for WJ-HDE400 Extension Unit
• DC Power input 220-240V
