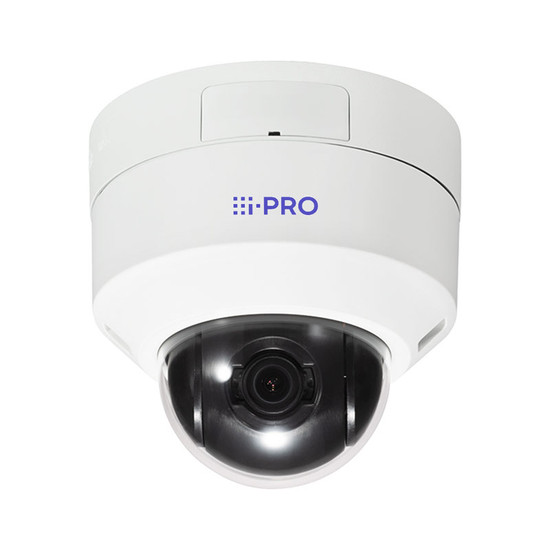

This compact, versatile PTZ camera offers flexible coverage of indoor areas, with 3.1x optical zoom and 350° pan range. Capture 1080p HD resolution true colour video in full frame rate even in areas suffering from low and challenging lighting.
This compact and affordable PTZ dome camera is ideal for indoor surveillance in a variety of applications demanding high security. It features a 2MP sensor for capturing video in 1080p HD resolution in full frame rate up to 60fps. Receive alerts of motion detected within the scene enabling faster response to potential incidents. Pan the camera around up to 350° and zoom in on events with 3.1x optical zoom, for better in-depth analysis.
Ensure the camera's high clarity images are as good as they can be with Super Dynamic Range and its impressive low-light performance, producing full colour video in lux levels as low as 0.001lux. The unit can be installed on ceilings straight out of the box, with additional accessories available for wall, pole and corner mounting. An optional smoked dome variant obscures the orientation of the lens for a more discreet solution. PoE support means only a single cable is required for both power and network connection.
Users can receive alerts of motion detected within the scene thanks to the built-in analytics apps running in the camera. Detected objects are visualised in bounding-boxes through your VMS so you can keep an eye on incidents and track object classifications. Configure alerts to be sent via email or mobile app, and the camera can start recording upon detection to capture incidents in the moment.
i-PRO offers the free i-PRO Active Guard for Milestone XProtect to enable real-time and post-event searching and analytics alarms from i-PRO cameras.
Available recording and video management options for this camera:
Camera |
|
| Environment: | indoor |
| Type: | PTZ dome |
| Sensor: | Approx. 1/2.8 type CMOS image sensor |
| Lens: | Optical zoom: 3.1x (Motorized zoom / Motorized Focus)
Extra zoom: Max. 4.6x (3.1 to 4.6x : When resolution is 1280 x 720) Focal Length: 2.9 - 9 mm {1/8 inches - 11/32 inches} Angular Field of View: [16 : 9 mode] Horizontal : 36° (TELE) – 115° (WIDE), Vertical : 20° (TELE) – 61° (WIDE) [ 4 : 3 mode] Horizontal : 28° (TELE) – 82° (WIDE), Vertical : 20° (TELE) – 61° (WIDE) Maximum Aperture Ratio: 1 : 1.3 (WIDE) – 1 : 2.5 (TELE) Focus Range 0.3 m {11-13/16 inches} – ∞ |
| Pan/tilt: | Panning Range: 0 – +350°
Panning Speed: Manual: Approx. 0.065°/s – 150°/s Preset: Up to approx. 150°/s Tilting Range: Operational 0 – +90° Tilting Speed Manual: Approx. 0.065°/s –150°/s Preset: Up to approx. 150°/s Preset Positions: 256 positions Auto Mode: Auto pan/ Preset sequence/ Patrol Self Return: 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min |
| I/O: | ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| Audio: | Audio Input: ø3.5 mm stereo mini jack
For microphone input: Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : –51 dB to –38 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance: Approx. 2 kΩ (unbalanced) Supply voltage: 2.5 V ±0.5 V For line input: Input level : Approx. –10 dBV Audio Output: ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV |
| Power: | DC12 V, PoE (IEEE802.3af)
DC12 V: 890 mA / Approx. 10.7 W PoE DC 48 V: 250 mA / Approx.12.0 W (Class 0 device) |
Imaging |
|
| Resolution: | [16 : 9 mode (60 fps mode)] , [16 : 9 mode (30 fps mode)],
[16 : 9 mode (50 fps mode)] , [16 : 9 mode (25 fps mode)] 1920x1080, 1280x720, 640x360, 320x180 [4 : 3 mode (30 fps mode)], [4 : 3 mode (25 fps mode)] 1280x960, VGA, QVGA [4 : 3 mode (15 fps mode)], [4 : 3 mode (12.5 fps mode)] 2048x1536 , 1280x960, VGA, QVGA |
| Frame rate: | [60 fps Mode] 1/60 Fix to 1/10000 Fix
[30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| IR illumination: | N/A |
| WDR | Max.144 dB (Super Dynamic : On, Level 31) |
| Video streaming: | [Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effo [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast |
| Day/night: | Off / On / Auto1 / Auto2 / Auto3 (SCC) |
| Minimum illumination: | WV-U61300-ZY
Colour: 0.007 lx (30IRE, F1.6, 1/30s, AGC:11)* 0.01 lx (50IRE, F1.6, 1/30s, AGC:11) 0.001 lx (50IRE, F1.6, 16/30s, AGC:11)* BW : 0.004 lx (50IRE, F1.6, 1/30s, AGC:11) 0.0003 lx (50IRE, F1.6, 16/30s, AGC:11)* *Converted value WV-U61300-ZYG Colour: 0.02 lx (30IRE, F1.6, 1/30s, AGC:11)* 0.03 lx (50IRE, F1.6, 1/30s, AGC:11) 0.002 lx (50IRE, F1.6, 16/30s, AGC:11)* BW: 0.012 lx (50IRE, F1.6, 1/30s, AGC:11) 0.0008 lx (50IRE, F1.6, 16/30s, AGC:11)* *Converted value |
Analytics |
|
| Applications: | Video Motion Detection (VMD): On / Off, 4 areas available
Scene Change Detection (SCD): On / Off, 1 area available Privacy zone: On / Off, Up to 8 zones available |
Video Management |
|
| On-camera recording: | H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card : microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB microSD memory card : 2 GB |
| Network video recorders: | i-PRO NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | i-PRO WV-ASM300 video surveillance software, Milestone XProtect |
| Cloud: | Eagle Eye Networks |
General |
|
| Alarms: | Alarm Source: 3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm Actions: SDXC/SDHC/SD memory recording, E-mail notification HTTP alarm notification Indication on browser, TCP alarm notification output |
| Dimensions: | ø131 mm x 128 mm (H) {ø5-5/32 inches x 5-1/32 inches (H)} |
| Weight: | Approx. 0.8 kg {1.76 lbs.} |
| Casing: | Main body: Aluminium die cast /PC resin + ABS resin, i-PRO white
Lens cover: ABS resin, Black |
| Operating temperatures: | -10 °C to +50 °C (+14 °F to +122 °F) (Power On range : 0 °C to +50 °C {+32 °F to +122 °F}) |
| Warranty: | 5-year |
Security |
|
| Protocols supported: | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LL IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, NMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP, NTCIP |
| Secure: | FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed
HTTPS, User authentication, Digest authentication, Host authentication, IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection, Signed Firmware |
