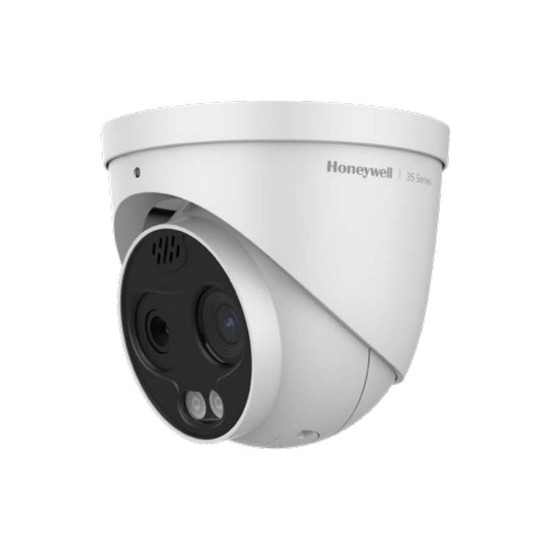

Overview of the Honeywell 35 Series bi-spectrum thermal turret camera
- Affordable and compact solution for zone surveillance and heat monitoring
- Dual optical and thermal sensor for accurate detection 24-hours a day
- Spot temperature reading for reliable temperature recording in real-time
- Advanced video and thermal analytics including early fire warning, smoke and open flame detection
- White strobe light acts as an alert for staff or an effective deterrent for warning off intruders
The Honeywell HC35TE5R bi-spectrum turret series combines a 5MP optical sensor with a 256 × 192 thermal sensor to deliver reliable heat detection and event monitoring in all lighting and weather conditions. Offering cost-effective yet powerful performance, it comes in two lens configurations: 2.2mm optical with 2.1mm thermal, or 4mm optical with 3.5mm thermal, both ideal for wide-area coverage. With an IP66/IP67 and IK10-rated housing, it ensures reliable 24/7 operation, even in rain, fog, or snow.
Fire and smoke analytics deliver early, reliable alerts to support rapid response and reduce risk. Additionally, Smart IR up to 35m range (model dependent), wide dynamic range, and image fusion help maintain high optical visibility in low-light and pitch dark environments. The unit can be integrated with external devices and local alarm networks thanks to 2 x I/O ports. The built-in mic and speaker enables audio capture and 2-way communication.
We recommended mounting this camera to walls and ceilings with the Honeywell HA35JCBHA1 35 Series All-In-One Junction Box for effective cable management and secure installation.
Video Analytics
Equipped with advanced thermal and optical analytics, the HC35TE5R series enables intelligent detection of people, vehicles, flames, and heat anomalies. Thermal-specific analytics support early fire detection, smoker identification, and equipment monitoring, while optical-side analytics include face detection, loitering, object removal, and directional triggers like wrong-way detection. The use of bounding boxes, temperature alarms, and bi-spectral filtering helps reduce false alerts, improve situational awareness, and support both security and safety-driven use cases in enterprise and industrial settings.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- Honeywell Smart Viewer VMS
- Honeywell NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
- Perimeter and zone protection - Early detection of humans or vehicles, configure alarms upon unexpected behaviour, line crossing, loitering detection, unattended and missing object alerts, people counting for crowd control
- Challenging conditions - operates in challenging lighting and weather conditions such as smoke, heavy rain, snow, fog
- Thermal monitoring - electric vehicle charging station monitoring, solar panel plants, data centres and server rooms, combustible material and recycling plant surveillance, machinery overheating detection, flame detection in substations and utility plants
Models Available
- Honeywell HC35TE5R3JT21 bi-spectrum thermal turret - optical: 2.2mm, H:119° / thermal 2.1mm, H:90°
- Honeywell HC35TE5R4JT35 bi-spectrum thermal turret - optical: 4mm, H:91.58° / thermal 3.5mm, H:48°
Key technical features of the Honeywell 35 Series outdoor bi-spectrum thermal turret camera
Camera |
|
| Environment: | indoor/outdoor |
| Type: | fixed turret |
| Sensor: | Optical: 1/2.7” CMOS
Thermal: Vanadium oxide uncooled focal plane detector |
| Lens: | Optical:
HC35TE5R3JT21: 2.2mm, F2.2 - H: 119°, V: 69.98° HC35TE5R4JT35: 4mm, F1.6 - H: 91.58°, V: 46.53° Thermal: HC35TE5R3JT21: 2.1mm, F1.0 - H: 90°, V: 64° HC35TE5R4JT35: 3.5mm, F1.0 - H: 48°, V: 36° |
| IR Light Number: | 2 (1 IR + 1 white light) |
| IR Distance: | HC35TE5R3JT21: 15 m (49.21 ft)
HC35TE5R4JT35: Up to 35 m (114.83 ft) |
| IR Light Control: | Smart IR (Auto/Manual)/OFF |
| White light: | Strobe light |
| Audio: | 2-Way, Full duplex, 1Ch Input, 1Ch Output, Built-in Mic and Speaker |
| Power supply: | DC12V/DC24V/PoE (IEEE 802.3 af) |
| Power consumption: | Max 10 W |
Imaging |
|
| Resolution: | Optical: 2880 x 1620
Thermal: 256 x 192 |
| Frame rate: | Up to 25 fps |
| Video streaming: | H.265 HEVC/ H.264/ MJPEG, Smart Codec |
| Day/Night: | Auto/Day/Night/Timing |
| Minimum illumination: | HC35TE5R3JT21:
Colour: 0.05 Lux @(F2.2, 30 IRE), B/W: 0.005 Lux @(F2.2, 30 IRE), 0Lux with IR HC35TE5R4JT35: Colour: 0.01 Lux @(F1.6, 30 IRE), B/W: 0.001 Lux @(F1.6, 30 IRE), 0Lux with IR |
| Backlight Compensation: | BLC, HLC, WDR (120 dB) |
Thermal Imaging |
|
| Pixel pitch: | 12μm |
| Spectral range: | 8 ~ 14 µm |
| Sensitivity (NETD): | ≤ 50 Mk, F1.0 |
| Thermal palette settings: | White Hot, Black Hot, Rainbow, Ironbow, HSV, Bone, Cool, Copper, FireHot, Pink, Spring, Summer, Autumn, Winter, Jet, Flame, Rosebengal |
| Bi-spectrum image fusion: | Supported |
| Measurement range: | -20 °C ~ 150 °C (-4 °F ~ 302 °F) |
| Measurement accuracy: | ±8 °C |
| Measurement mode: | Spot/Line/Area |
| Measurement configuration: | 3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (spot, areas, line) |
| Temperature alarm: | Support temperature difference alarm, threshold alarm, temperature section alarm, temperature raise alarm |
Analytics |
|
| Video Analytics: | Optical:
Motion Detection, Smart Motion, Scene Change, Intrusion, Multi-Loitering, People Counter, Face Detection, Line Crossing Detection, Double Line Crossing Detection, Unattended Object Detection, Missing Object Detection, Wrong Way Detection, Smoke and Flame Detection Thermal: Motion Detection, Smart Motion, Intrusion, Multi-Loitering, People Counter, Line Crossing Detection, Double Line Crossing Detection, Wrong Way Detection, Smoker Detection, Fire Spot Detection |
| Event Type: | Analytics Alarm, Security Alarm, Disk Alarm, Recording Alarm |
| Event Linkage: | Email, Push Notification, SD Card Recording, Digital Output |
| Event: | Event notification using digital output SMTP and MicroSD card |
Video Management |
|
| On-camera recording: | Support for microSD card (up to 1TB) |
| Network video recorders: | Honeywell NVRs, Milestone Husky |
| Video Management Software: | Honeywell DVM, Milestone XProtect |
| Cloud: | MAXPRO NVR, Milestone Arcules |
General |
|
| Alarm I/O connections: | 1 In / 1 Out |
| Dimensions: | Ø126.1 x 114.1 mm (4.96” x 4.49”) |
| Weight: | 0.96 kg (2.12 lb) |
| Casing: | IP66/67 ingress protection
IK10 (housing only) Die-cast aluminium housing Colour: Camera Body: RAL 9003 (Signal White) Front/Lens Facings: Pantone Black |
| Operating temperatures: | Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F) |
| Warranty: | 5-year |
| Protocols supported: | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, FTP/SFTP, Bonjour |
| Security: | User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2&1.3, Stream encryption, AES128 / 256, SSH / Telnet closed, PCIDSS compliance, encryption Chipset Built-In |
