Honeywell 35 Series outdoor bi-spectrum thermal bullet camera with 7mm/10mm thermal lens, 5MP visual sensor, 256x192 thermal imaging, IR, WDR, early smoke & fire detection analytics, 4 x alarm I/O, built-in mic and PoE

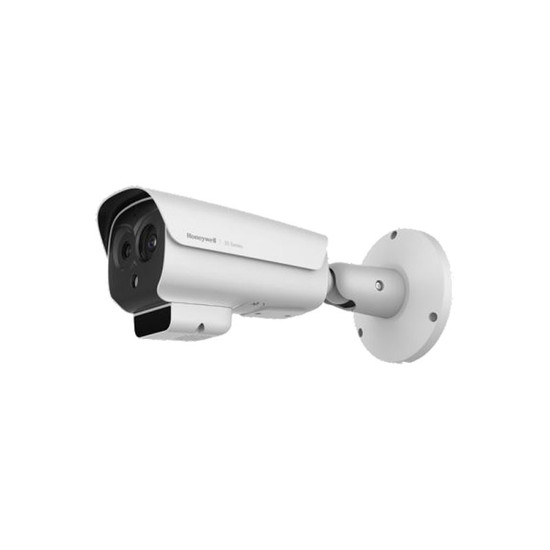

Overview of the Honeywell 35 Series bi-spectrum thermal bullet camera

• Cost-effective and lightweight solution for perimeter surveillance and heat monitoring
• Dual optical and thermal sensor for accurate detection 24-hours a day
• Spot temperature reading for reliable temperature recording in real-time
• Advanced video and thermal analytics including early fire warning, smoke and open flame detection
• White strobe light acts as an alert for staff or an effective deterrent for warning off intruders

The Honeywell HC35TB5R bi-spectrum series combines a 5MP optical sensor with a high-performance 256 × 192 thermal sensor for reliable heat and event detection across varied lighting and environmental conditions. This affordable unit features an 8mm optical lens and is available in 7mm and 10mm thermal lens variants for detailed, long-range perimeter coverage. Its casing is IP66/IP67 and IK10 supporting round-the-clock operation in harsh weather conditions, providing visibility even in rain, fog and snow.

Fire and smoke analytics deliver early, reliable alerts to support rapid response and reduce risk. Additionally, Smart IR up to 55m range, wide dynamic range, and image fusion help maintain high optical visibility in low-light and pitch dark environments. The unit can be integrated with local alarm networks thanks to 4 x I/O ports, and the built-in mic enables audio capture.

We recommended mounting this camera to walls and ceilings with the Honeywell HA35JCBHBB Bullet Junction Box for effective cable management and secure installation.

Video Analytics

Equipped with advanced thermal and optical analytics, the HC35TB5R series enables intelligent detection of people, vehicles, flames, and heat anomalies. Thermal-specific analytics support early fire detection, smoker identification, and equipment monitoring, while optical-side analytics include face detection, loitering, object removal, and directional triggers like wrong-way detection. The use of bounding boxes, temperature alarms, and bi-spectral filtering helps reduce false alerts, improve situational awareness, and support both security and safety-driven use cases in enterprise and industrial settings.

Recording and Video Management

Available recording and video management options for this camera:

• Record directly to on-board microSD Card (not included)
• Honeywell Smart Viewer VMS
• Honeywell NVRs
• Milestone XProtect video management software
• Milestone Arcules VSaaS

Example Use Cases

• Perimeter and zone protection - Early detection of humans or vehicles, configure alarms upon unexpected behaviour, line crossing, loitering detection, unattended and missing object alerts, people counting for crowd control
• Challenging conditions - operates in challenging lighting and weather conditions such as smoke, heavy rain, snow, fog
• Thermal monitoring - electric vehicle charging station monitoring, solar panel plants, data centres and server rooms, combustible material and recycling plant surveillance, machinery overheating detection, flame detection in substations and utility plants

Models Available

• Honeywell HC35TB5R1JT07 bi-spectrum thermal bullet - optical: 2.2mm - H:119° / thermal: 7mm - H:24°
• Honeywell HC35TB5R4JT10 bi-spectrum thermal bullet - optical: 10mm - H:41.6° / thermal: 10mm - H:17°

Key technical features of the Honeywell 35 Series outdoor bi-spectrum thermal bullet camera
