| DS-7716NI-I4/16P

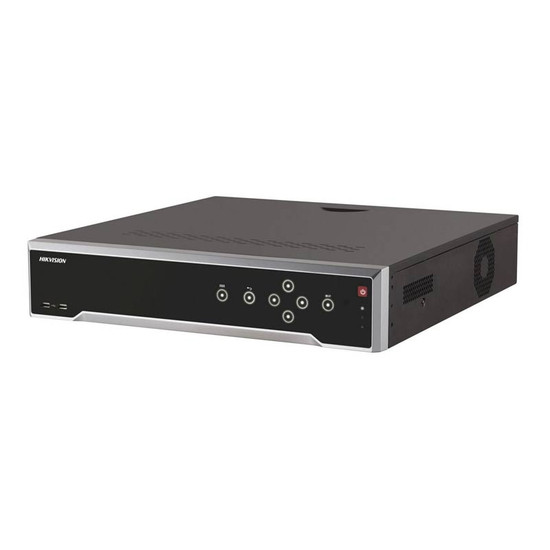

Hikvision DS-7716NI-I4/16P 4K network video recorder with 16 channels, PoE switch and up to 24TB storage

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
  • Up to 24TB storage capacity
  • 4K NVR supports to 16 channels
Hurry! Only left

This product has been discontinued, for an alternative model please see Wisenet XRN-1620SB1.

Overview of the Hikvision DS-7716NI-I4/16P

This network video recorder by Hikvision supports the recording of up to 16 camera channels and provides a maximum of 24TB storage. Suitable for medium-sized organisations, the unit also features an integrated Power-over-Ethernet (PoE) switch and can deliver PoE to a total of 16 cameras. In addition, the integrated HDMI output enables connection of a local HD monitor to provide a simple surveillance solution.

This model supports the recording and monitoring of multiple Hikvision IP cameras at a resolution of up to 12MP. Recordings can be set continuously, scheduled periods or in a response to an event/alarm signal. Users are able to retrieve and review recordings using the Smart Search tool and footage can then be exported via the USB connection. Additionally, scene awareness and alarm signalling can be enhanced by connecting external devices through the alarm I/O ports.

Please note: this Hikvision NVR can be provided with 4TB, 6TB, 8TB, 12TB, 16TB, 18TB or 24TB storage. Please select storage from the dropdown menu above.

Key features & benefits

  • Supports a maximum of 16 camera channels at a resolution of up to 12 megapixel
  • Built-in PoE switch offers self-contained networking and power supply
  • 4 drive-bays house a maximum of 24TB storage (please select storage capacity from dropdown menu)
  • HDMI output allows the connection of an HD monitor for a standalone setup
  • Audio recording and support for two-way audio (camera model dependent) when external devices are connected via the I/O ports
  • Integrated alarm I/O ports allow connection of external devices to enhance alarm signalling
  • Recordings can be configured to run on an event basis, continuously or during specific time periods
  • Support for live view, playback and storage of recordings - ideal for small to medium-sized businesses
  • Video search tools enable the quick and easy retrieval of recordings
  • USB ports enable quick transfer of files onto external storage devices
  • Dimensions: 445 (W) x 390 (D) x 70 (H) mm
  • Bandwidth throughput: incoming: 160Mbps, outgoing: 256Mbps
  • PoE: <200W (without HDD)
  • Warranty period: 3 years

Compatible Recording Platforms

Typical applications

The Hikvision DS-7716NI-I4/16P network video recorder is an affordable monitoring and recording solution for small to medium-sized systems. Typical applications include independent retail stores, service stations and supermarkets.



  • Installation guide

Optional (please select from the dropdown menu):

  • Storage capacity
