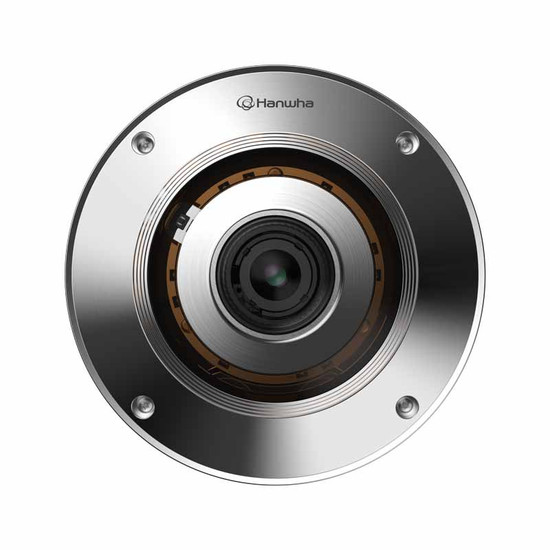

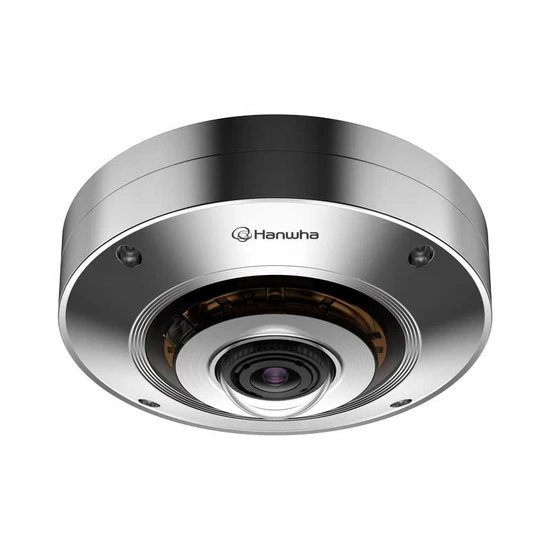

Offering a full 360° fisheye view, this 12MP dome features a stainless steel casing (SS 316L) and is NSF/ANSI Standard 169 certified for use in food processing applications, offering effective resistance to high pressure water and harsh detergents.
This compact and robust panoramic fisheye IP camera is designed for capturing overviews of food processing applications such as production lines and breweries. The corrosion-resistant stainless steel (SUS 316L) casing is IP66/67 and IK10+ rated, offering reliable protection against water and dust ingress, and solid enough to resist attempts of vandalism. It is also NSF/ANSI Standard 169 certified, capable of withstanding jet washing and strong cleaning chemicals used in the food production industry.
The 12MP image sensor and stereographic lens delivers full 360° overviews in HD resolution, with on-board dewarping smoothing out the images for reduced distortion. Improved clarity means users can digitally pan, tilt and zoom around the image in excellent detail, in either single, double or quad panoramic settings. Monitor premises 24-hours a day with extremeWDR and WiseIR, with a viewable length of up to 8m. 2 x configurable I/O ports means users can connect devices such as speakers or sirens to trigger upon detected incidents, with the unit also supporting an external microphone to enable audio detection.
Users can improve overall security and develop workable insights into their business performance using a range of video analytics scenarios. Configure alerts based on motion detection events, including appear/disappear from area, loitering warning and virtual line crossing. Business intelligence analytics also enables people counting, queue management and heatmaps which can aid informed decisions into helping improve operational efficiency. When an external microphone is connected, sound classification analytics can detect and classify sudden loud sounds such as screams, shouts and explosions, helping operators respond quicker to incidents.
Available recording and video management options for this camera:
Camera |
|
| Environment: | indoor/outdoor |
| Type: | stainless steel panoramic fisheye |
| Sensor: | 1/2.3" 12MP CMOS |
| Lens: | Focal Length (Zoom Ratio): 1.08mm fixed focal
Max. Aperture Ratio: F2.2 Angular Field of View: H: 187° / V: 187° / D: 187° Min. Object Distance: 0.5m(1.64ft) Focus Control: Simple focus |
| PTZ: | digital PTZ only |
| Audio: | Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm Line out |
| Power: | PoE: Max 12.95W, typical 11W
12VDC: Max 11W, typical 9.1W |
Imaging |
|
| Resolution: | Original view(1:1): 3008x3008~480x480,
Double panorama(2:1): 3584x1792~640x320, Single panorama(4:1): 3584x896~640x160, Quad view: 3584x2688~640x480, Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480 |
| Frame rate: | H.265/H.264:
Original view-Max.30fps/25fps@3008x3008(60Hz/50Hz), Double panorama-Max.30fps/25fps@3584x1792(60Hz/50Hz) Single panorama-Max.30fps/25fps@3584x896(60Hz/50Hz) MJPEG: Max.30fps/25fps@1080x1080(60Hz/50Hz) |
| IR illumination: | 8m(26.25ft), Wise IR |
| WDR | extremeWDR (120dB) |
| Video streaming: | Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles |
| Day/night: | Auto(ICR) |
| Minimum illumination: | Colour: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux(IR LED on) |
| Remote zoom / focus | included |
Analytics |
|
| Application Programming Interface: | ONVIF Profile S/G/T/M
SUNAPI(HTTP API) Wisenet open platform |
| Analytics: | Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business intelligence: | People counting, Queue management, Heatmap |
| Alarm triggers: | Analytics, Network disconnect, Alarm input |
| Alarm events: | File upload via FTP and e-mail
Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset Handover Audio playback |
Video Management |
|
| On-camera recording: | Micro SD/SDHC/SDXC 2slot 1TB(512GBx2) |
| Network video recorders: | Hanwha Vision NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Wisenet Viewer application, Wisenet WAVE, Milestone XProtect |
General |
|
| Alarm I/O connections: | 2 configurable I/O ports |
| Dimensions: | ø167.9 x 72.1mm(66.10x28.38") |
| Weight: | 2,980g(6.57lb) |
| Colour / material: | Silver / Stainless(SUS316L), Nylon dome bubble
|
| Certifications: | IP66, IP67, IP6K9K, NEMA4X, IK10, IK10+(it can resist impacts of 40 joules), NSF/ANSI
Standard 169 – Special Purpose Food Equipment and Devices
|
| Operating temperature / humidity: | -40°C ~ +50°C (-40°F ~ +122°F) / Less than 95% RH |
| Warranty: | 5-year |
| Firmware support to: | 5 years after EOL |
| Protocols supported: | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security: | HTTPS(SSL) Login Authentication
Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
