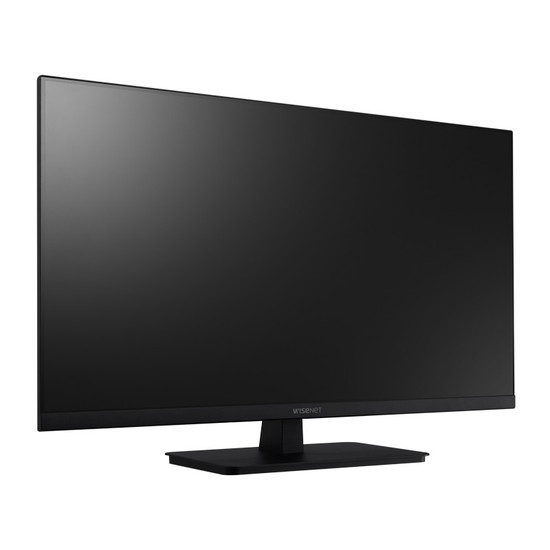

With a 32" screen and 4K UHD resolution pro display, this CCTV monitor is ideal for viewing IP video in surveillance applications. Input video via HDMI or DP and view detail from all around the room with the wide 178° viewing angle.
Capable of displaying 4K UHD resolution video, this CCTV monitor is optimised for viewing live and recorded video from your NVR, VMS or IP cameras. It features a 32" screen with 178° wide viewing angle, so the display can be comfortably viewed from all around the room. Simply install the monitor on a desktop with the included stand, input video via the HDMI or DP port and it's ready to use. The monitor can also be wall mounted with a VESA interface mount (sold separately). The dual built-in speakers can play audible alerts, as well as listening to audio from cameras with microphones for additional scene awareness.
|
Monitor
|
|
| Environment: | indoor |
| Screen size: | 31.5" |
| Screen type: | LED |
| Aspect ratio: | 16:9 |
| Max. Resolution: | 3840*2160 60Hz (UHD) |
| Audio: | Audio in/out
Output Signal: Loop-through line level(PC only) Speakers : 6Ω 2W x 2 |
| Brightness: | 300 cd/m² (Typ) |
| Viewing angle: | Horizontal viewing angle: 178°, Vertical viewing angle: 178° |
| Contrast ratio: | 700:1(Min) '1000:1(Typ) |
| Display colours: | 1.07B Colors(Typ) |
| Response time: | 14ms(Typical) |
| Video interface: | HDMI 2.0(1), DP1.2(1) |
|
General
|
|
| Input voltage: | AC 100-240V AC (50/60Hz) |
| Power consumption: | <55W |
| Operating temperature: | 0 ~ +40°C (+32°F ~ +104°F) |
| Panel life: | 30,000 hours |
| Mounting method: | desktop and wall mountable |
| VESA mounts interface: | 100mm x 100mm |
| Dimensions: | 714.6*485.7*200.9mm (with stand)
714.6*445.6*53.7mm (without stand) |
| Weight: | 8.0kg(with stand), 6.5Kg(without stand) |
| Colour: | black |
| Warranty: | 5-years |
|
Connections
|
|
| Video: | 1 x HDMI, 1 x DP |
| Audio: | 3.5mm jack line-in |
