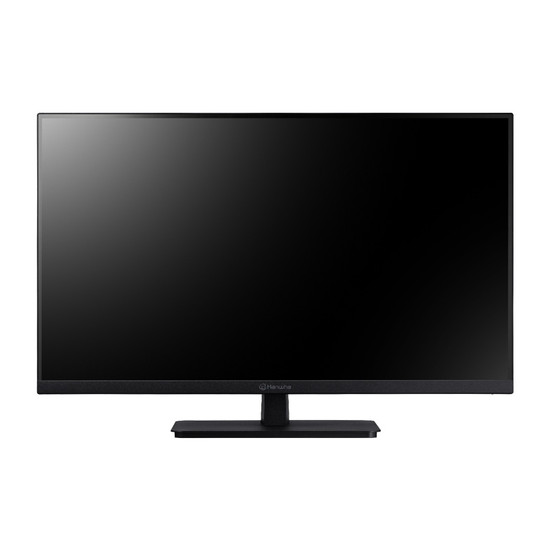

This power-efficient LED monitor features a 32” full HD 1080p resolution display. This high-resolution unit provides clear, detailed images which can be easily viewed from all around the room with its wide 178° viewing angle.
Featuring a 32" LED screen and full HD 1080p resolution display, this surveillance monitor is optimised for viewing live and recorded video from your IP video devices and VMS clients. The included stand makes it easy to position in control rooms and offices, and the wide 178° viewing angle means you can view the display from all around the room. The monitor can also be wall mounted with a VESA interface mount (sold separately). Input video via the HDMI, VGA or DP ports, and input audio via the 3.5mm line-in to play through the 2 built-in speakers.
|
Monitor
|
|
| Environment: | indoor |
| Screen size: | 32" |
| Screen type: | LED |
| Aspect ratio: | 16:9 |
| Max. Resolution: | 1920*1080 60Hz (FHD) |
| Audio: | Audio in/out
Output Signal: Loop-through line level(PC only), Speakers : 4Ω 2.5Wx 2 |
| Brightness: | 300 cd/m² (Typ) |
| Viewing angle: | horizontal viewing angle: 178°, vertical viewing angle: 178° |
| Contrast ratio: | 3200:1(Min) 4000:1(Typ) |
| Display colours: | 16.7 million |
| Response time: | 20ms (Typ) |
| Video interface: | VGA(1)HDMI 1.4(1), DP 1.2(1) Audio-in(1) Audio-out (1) |
|
General
|
|
| Input voltage: | AC 100-240V AC |
| Power consumption: | <60W |
| Operating temperature: | 0 ~ +40°C (+32°F ~ +104°F) |
| Panel life: | 30,000 hours |
| Mounting method: | desk or wall mountable |
| VESA mounts interface: | 100mm x 100mm |
| Dimensions: | 714.0*484.2*200.8mm (with stand)
714.0*423.7*53.7mm (without stand) |
| Weight: | 7.28kg(with stand), 5.9Kg(without stand) |
| Colour: | black |
| Warranty: | 5-years |
|
Connections
|
|
| Video: | 1 x HDMI, 1 x VGA, 1 x DP |
| Audio: | Loop-through line level (PC only), 3.5mm jack line-in |
