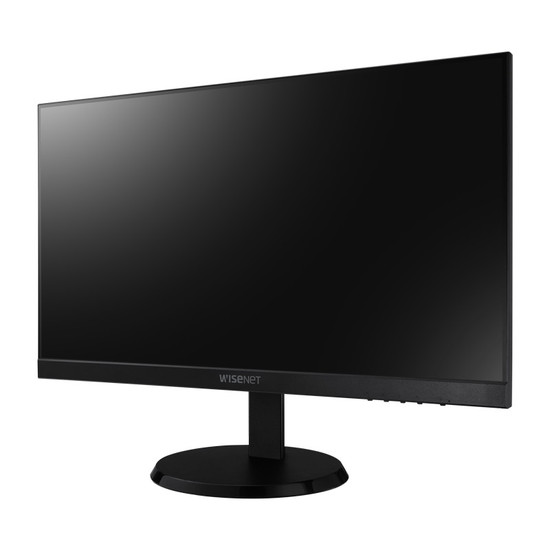

This power-efficient LED monitor features a 22” full HD 1080p resolution display. This high-resolution unit provides clear, detailed images which can be easily viewed from all around the room with its wide 178° viewing angle.
With a 22" LED screen and full HD 1080p resolution display, this monitor is optimised for viewing live and recorded surveillance video from your IP video devices and VMS clients. Input video via the HDMI and VGA ports. It is easy to position in control rooms and offices with the included stand, and can be viewed from all around the room thanks to its 178° viewing angle. The monitor can also be wall mounted with a VESA interface mount (sold separately).
|
Monitor
|
|
| Environment: | indoor |
| Screen size: | 22" |
| Screen type: | LED |
| Aspect ratio: | 16:9 |
| Max. Resolution: | 1920*1080 60Hz (FHD) |
| Audio: | N/A |
| Brightness: | 250 cd/m² (Typ) |
| Viewing angle: | horizontal viewing angle: 178°, vertical viewing angle: 178° |
| Contrast ratio: | 2000:1(Min) 3000:1(Typ) |
| Display colours: | 1.07B Colors(Typ) |
| Response time: | 6.5ms (Typ) |
| Video interface: | VGA(1), HDMI (1) |
|
General
|
|
| Input voltage: | AC 100-240V AC |
| Power consumption: | <30W |
| Operating temperature: | 0 ~ +40°C (+32°F ~ +104°F) |
| Panel life: | 30,000 hours |
| Mounting method: | desk or wall mountable |
| VESA mounts interface: | 100mm x 100mm |
| Dimensions: | 491.9*186.7*371.4*mm (with stand)
491.9*36.1*289.4mm (without stand) |
| Weight: | 2.59kg(with stand) |
| Colour: | black |
| Warranty: | 5-years |
|
Connections
|
|
| Video: | 1 x HDMI, 1 x VGA |
