Hanwha Vision (Wisenet) | PNM-8082VT

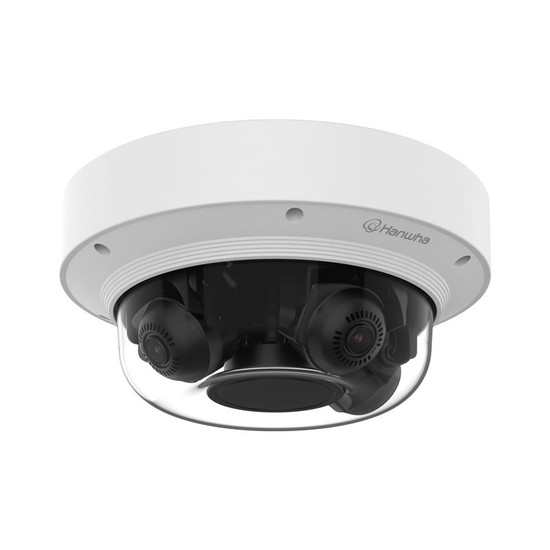

Hanwha Vision PNM-8082VT in/outdoor multi-directional IP camera with 3 x 2MP sensors, 1080p HD resolution, extreme WDR, motion detection analytics and PoE+

£1,060.00

£1,272.00 inc VAT

Best Price Guarantee

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

This 3-channel multi-directional camera can monitor up to three areas simultaneously via a single PoE cable and IP address, meaning reduced installation and maintenance costs. Achieve the desired coverage with adjustable motorised varifocal lenses.

3 x 2MP image sensors for 1080p HD resolution video
Each lens provides a 56.3° ~ 107° horizontal viewing angle
Monitor up to three different directions through a single IP address
extreme WDR up to 150dB offers excellent light compensation
Receive alerts from a range of motion based video analytics
Hanwha Vision 5-year warranty, firmware support until 5 years after EOL

Read full product description

Overview of the Hanwha Vision PNM-8082VT in/outdoor 3ch multi-directional IP camera

Monitor three different directions simultaneously with individually adjustable varifocal lenses
Capture streams in 1080p HD resolution up to 30 fps for crisp and smooth video
IP66 and IK10-rated - suitable for both indoor and outdoor use
Extreme WDR optimises scenes suffering from poor and contrasted lighting
Receive alerts from a range of motion-based video analytics

Versatile and cost-effective, this robust 3-channel IP camera allows multi-directional monitoring from a single IP address and cable. It can be installed in both indoor and outdoor environments for simultaneous 3-way surveillance. With an IP66 and IK10-rated housing, the camera offers reliable protection against wet weather and vandalism. Each motorised varifocal lens can be individually adjusted using the remote PTRZ function, ensuring optimal coverage for your desired field of view.

Capture smooth and detailed images in HD 1080p resolution at up to 30fps. The camera excels in low-light conditions, delivering full-color images even in near darkness, while extremeWDR optimises scenes with shadows and varying contrast. Power over Ethernet (PoE) support allows for power and network connection via a single cable, reducing installation costs

Video Analytics

Users can receive notifications, such as emails, when the camera detects motion through its configurable video motion detection alarms. Analytics scenarios like enter/exit detection and virtual line crossing enhance perimeter security while helping businesses monitor daily activities and improve operations. The camera can also be set to record directly to an SD card (not included) when an event is triggered.

Recording and Video Management

Available recording and video management options for this camera:

Record directly to on-board microSD Card (2 x 256GB - not included)
Wisenet Viewer application
Wisenet WAVE VMS Software
Hanwha Vision NVRs
Milestone video management software

Example Use Cases

Retail stores - Manage customer flow, claim handling, track and trace, deter aggression, minimise theft, reduce shrinkage, monitor threats i.e break ins, staff training, identify busiest periods to optimise staffing, verify store has been securely locked
Pathways / public parks - Monitor multiple areas of interest, deter anti-social behaviour, identify persons and track activity
Corporate / offices / schools - Monitor multiple directions at once such as hallway intersections. Identify individuals, encourage procedure compliance

Accessories included

Camera
Installation guide
Drill template
4 x machine screws
RJ45 cap installer
Screw bit
Cable bushing
Cable for the testing monitor

Hanwha Vision 5-year warranty, firmware support until 5 years after end of life.

Key technical features of the PNM-8082VT

Camera
Environment:	indoor
Type:	3ch multi-directional
Sensor:	1/2.8" CMOS (x4)
Lens:	Focal Length (Zoom Ratio): 3.19mm fixed focal (x4) Max. Aperture Ratio: F1.2 Angular Field of View: H: 107°~56.3° / V: 57°~31.5° / D: 126°~64.3° Min. Object Distance: 0.5m(1.64ft) Focus Control: Simple focus Lens type: Fixed Iris
Pan/Tilt/Rotate:	0~360° / 0~73° / 0~90°
Audio:	N/A
Power:	PoE+ Max : 16.5W, Typical : 8.2W
Alarm I/O:	N/A
Imaging
Resolution:	1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Frame rate:	H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
IR illumination:	N/A
WDR	extreme WDR up to 150dB
Video streaming:	Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Day/night:	Auto (ICR)
Minimum illumination:	Colour: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec)
Backlight compensation:	BLC, HLC, WDR, SSDR
Analytics
Application Programming Interface:	ONVIF Profile S/G/T/M SUNAPI(HTTP API)
Analytic triggers:	Analytics, Network disconnect
Analytic events:	Defocus detection, Directional detection,Motion detection, Enter/Exit,Tampering, Virtual line
Event action:	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Handover
Video Management
On-camera recording:	Micro SD/SDHC/SDXC 2slot 512GB(256GBx2)
Network video recorders:	Hanwha Vision NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs
Video Management Software:	Wisenet Viewer application, Wisenet WAVE, Milestone XProtect
Cloud:	Eagle Eye Networks
General
Alarm I/O connections:	N/A
Dimensions:	Ø251x116.5mm
Weight:	3kg
Casing:	IP66, IK10, NEMA4X Body : White / Aluminum Hard-coated dome White: RAL9003
Operating temperatures:	Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F) Less than 95% RH(Non condensing)
Warranty:	5-year
Firmware support to:	5 years after EOL
Protocols supported:	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security:	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
