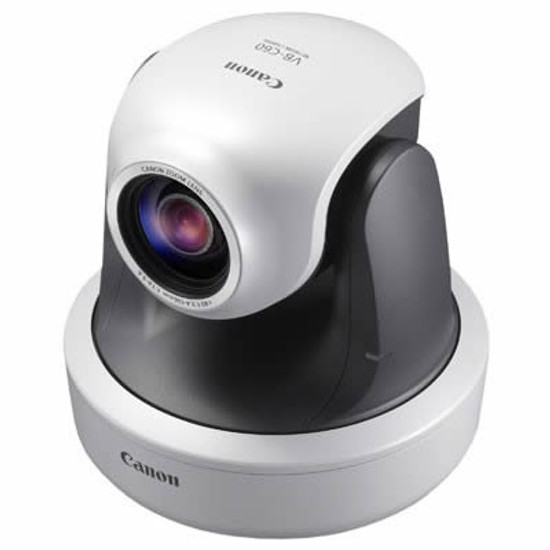

Canon VB-C60 Indoor PTZ IP camera with 40x optical zoom, true day/night, two-way audio and Power over Ethernet

This product is discontinued, an alternative model is the Axis Q6075-E

The Canon VB-C60 is an indoor Pan/Tilt/Zoom (PTZ) network camera with a 40x optical zoom. With Canon’s advanced optics the VB-C60 delivers clear, crisp images and with a progressive scan CCD sensor and a frame rate of up to 30fps the Canon VB-C60 delivers smooth footage of fast moving people and objects.

The Canon VB-C60 performs well in low and difficult lighting conditions with Smart Shade Control (SSC) able to boost the brightness of just the shaded areas of an image. Also with true day/night switching the camera can automatically switch between colour day viewing and a monochrome night vision which can deliver clear surveillance footage in even pitch black conditions (additional infrared light source required).

With Power over Ethernet compatibility the Canon VB-C60 is easy to install with only one network cable required for both power and data. Like all IP cameras available from Network Webcams, the Canon VB-C60 IP security camera has a built-in web server and can be viewed over a Local Area Network (LAN), Wide Area Network (WAN) or via the Internet as a streaming IP webcam.

Important: This camera does not include a power supply unless you have selected one from the options above.

Canon VB-C60 - Key benefits:

• High quality images with Canon’s class-leading 40x optical zoom lens
• Smooth TV-like movement with progressive scan 30fps video
• Detailed images in all lighting conditions with a black and white night vision for low-light conditions (addition infrared light source required)
• Simple and cost effective installation. With Power over Ethernet compatibility both power and data can share one network cable
• Free 4-camera recording software VK-Lite

Canon VB-C60 - Key features:

• 40x Canon optical zoom lens with image stabiliser and auto focus
• Canon pan/tilt mechanism for smooth, accurate control
• Progressive scan CCD sensor delivering up to 30fps
• True day/night switching with a mechanical infrared cut-filter
• Smart Shade Control adjust darker areas of an image for even brightness in high contrast environments
• Full duplex, two-way audio streaming for communication between camera location and monitoring station
• 2 input / 2 output external connections for incorporating external triggers and alarms
• Built-in Video Motion Detection (VDM) with 4 configurable zones and subject auto tracking
• 20 programmable preset PTZ positions
• Secure access control with administrator, authorised user and anonymous user login settings
• JPEG image upload to FTP server, HTTP and email
• Alarm notification via HTTP or email
• Power over Ethernet compatibility
• Free Canon VK-Lite software for recording and monitoring up to 4 Canon IP cameras and other platforms with browsers compatible with Java applets

Canon VB-C60 - Typical applications:

• The Canon VB-C60 with a 40x optical zoom is suitable for surveying large indoor areas like public buildings, retail environments, manufacturing lines, university campuses and schools delivering a high image quality with Canon’s advanced optical technology

Canon VB-C60 - Key technical indicators:

• Sensor: 1/4" CCD with primary colour filter, 310000 effective pixels, progressive scan
• Lens: 40x optical zoom, 3.4mm – 136mm, f/1.6 – f/5.6, horizontal field of view; 55.8° (wide) - 1.5%deg; (tele)
• Minimum illumination: Day mode; 0.7lux (colour, f/1.6 at 1/30 sec), night mode; 0.2 lux (mono, f/1.6 at 1/30 sec)
• Shutter speed: 1/1 - 1/8000 sec
• Movement range: Pan; 340° (-170° - +170°), tilt; 115° (-25° - +90°)
• Rotation speed: Pan; 150° per sec, tilt; 150° per sec
• Video compression: MJPEG, MPEG-4
• Resolution: MJPEG; 640x480 / 320x240 / 160x120 (multicast), MPEG-4; 640x480 / 320x240
• Frame rate: Up to 30fps all resolution and compression formats
• Simultaneous distribution: MJPEG; 30 clients max, MPEG-4; 10 clients max
• Audio compression: G.711 µ-law (64kbps), full duplex
• Supported protocols: IPv4 and IPv6: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (client), DHCP (IPv4 only), DNS (client), ARP, ICMP, POP3, NDP (IPv6 only), NTP, SMTP authentication, WV-HTTP (Canon)
• Memory buffer: 6MB for JPEG image upload
• Power: Power over Ethernet (48v DC, conforms to IEEE 802.3af), 240V AC 50Hz (via optional AC adapter), 12V DC or 24V AC (via supplied two-pin connector)
• Power consumption: 10W max (on PoE) / 13W max (on AC adapter)
• Operating temperature: -10°C to +50°C
• Dimensions: 142mm (W) x 149mm (H) x 142mm (D)
• Weight: 840g

Canon VB-C60 - Connections:

• Molex 2-pin connector 12V – 13V DC / 24V AC
• Network interface RJ-45, 100Base-TX (auto/full duplex/half duplex)
• Audio input 3.5mm mono mini-jack (mic/line level)
• Audio line output 3.5mm mono mini-jack (line level)
• External device connections: 2 x inputs / 2 x outputs

Canon VB-C60 - Accessories included:

• Start guide
• CD-ROM with setup tools and VK-Lite
• Molex 2-pin power connector
• Rubber feet x4

Canon VB-C60 - Additional items you may want to order with this camera:

• AC Mains power adapter
• Indoor dome housing (smoked or clear)
• Ceiling mount cover (silver or black)
• Canon VK recording software (16 or 64 channel)
