| VJM-4016

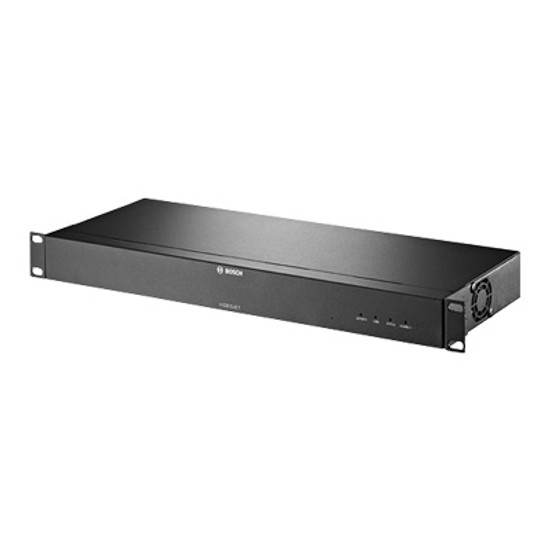

Bosch Videojet multi 4000 16-channel network video encoder, H.264 support, dual streaming and built-in Motion+ detection

£1,464.00 inc VAT
Free delivery on mainland UK and most EU countries Check delivery charges to where you are.

Suitable for security installations with existing legacy devices, looking to convert analogue video to IP, this encoder supports Motion+ video motion detection.

  • Motion+ video motion detection
  • Dual streaming
  • Supports up to 30fps
  • Encodes video from analogue cameras to IP
  • 16-channel support
Hurry! Only left

Overview of the Bosch Videojet multi 4000 encoder

  • Converts analogue video signals to IP video
  • All communication channels are AES encrypted
  • Motion+ video motion detection
  • Bosch 3-year warranty
  • Dimensions: 44 x 483 x 157 mm

Designed to enable businesses with existing analogue security installations to take advantage of an IP-based system, the Bosch Videojet Multi 4000 encoder converts up to 16 camera channels. With deinterlacing at video input and support for H.264 compression format, this reliable encoder supports framerates up to 30fps. This encoder also features Motion+ video motion detection using an algorithm based on pixel change to identify activity in the camera streams and notify users via email.

Featuring a built-in HDMI output, this encoder can stream video to a local display, ideal for public viewing in retail applications or monitoring in control rooms. Dual-streaming capabilities allow two video streams to be recorded simultaneously and the unit’s built-in I/O ports allow the connection of microphones and speakers to enable two-way audio. Additionally, all audio and video channels are AES encrypted for optimal security.

Key features & benefits

  • Enables the conversion of up to 16 cameras from analogue to IP
  • Deinterlacing prevents ‘combing’ and ensures the video is clear when converted
  • H.264 compression format is supported
  • Compatible with framerates up to 30fps
  • Motion+ technology offers intelligent video motion detection to improve scene awareness
  • HDMI output allows an external display to be connected
  • Two simultaneous streams are available with dual-streaming
  • I/O ports enable two-way audio with the connection of a microphone and speaker
  • Data is protected as all channels are AES encrypted

Typical applications

Ideal for small to mid-sized applications with up to 16 camera channels, this encoder allows analogue installations to easily utilise the benefits of an IP-based system without needing to buy new cameras or expensive equipment.

Back To Top

Key technical features for Bosch Videojet multi 4000 encoder


Environment indoor
Power: max 23W
Memory: no info given


Resolution: Horizontal x vertical PAL/NTSC: 4CIF/D1: 704 x 576/480 (25/30 ips), 2CIF: 704 x 288/240 (25/30 ips), CIF: 352 x 288/240 (25/30 ips)
PTZ: not given
Compression: H.264
Image settings: privacy masking, de-interlacing
Framerate: 1 to 25/30 fps

Viewing, detection & recording

Video streaming: dual streaming in H.264, full performance and full frame rate on both streams for every video input channel
Simultaneous users: not given
Alarm trigger: motion detection, alarm input
Alarm actions: no info given
Card recording: no info given
Bandwidth control: no info given


Power: max 23 W
Network: 10/100/1000 Base‑T, auto sensing, half/full duplex, RJ45
Video: 16 x input, connector BNC, impedance 75 ohm, terminated, signal analogue composite, 0.7 to 1.2 Vpp, NTSC or PAL
Other: Audio 2 x mono in, microphone/line 1 x mono line out, connector 2 x 3.5 mm (1/8 in) stereo jack, signal line in 9 kohm typical, 5.5 Vpp max, microphone amplifier 60 dB max, signal line out 3.0 Vpp at 10 kohm Alarm 4 x input, connector Clamp (non-isolated closing contact), activation resistance 10 ohm max Relay 1 x output, connector Clamp, signal 30 Vpp (SELV), 0.2 A COM port Clamp, RS‑232/422/485


Dimensions: 44 x 483 x 157 mm
Weight: 1.7kg
Casing: black metal casing
Warranty: 3 years
Operating temperatures: 0 °C to +50 °C
Power consumption: max: 23 W
Protocols supported: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (,,, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication
Security: no info given
Software: no info given
ONVIF compliant: yes
Mounting: standalone, rackmount or wall mount
