Bosch Security | NDA-U-CMT

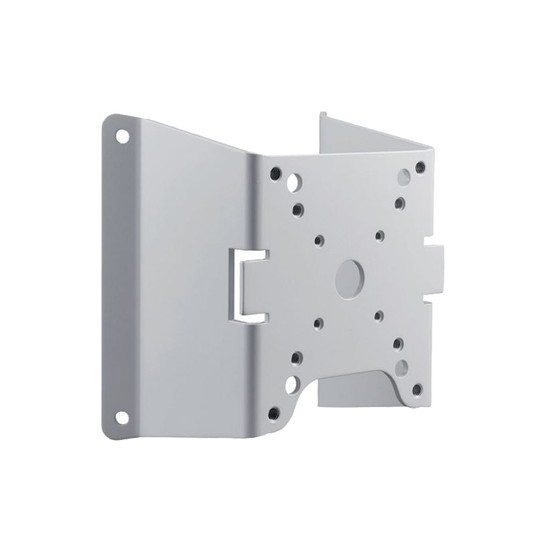

Bosch corner mount adapter

Weather and impact resistant adapter bracket allowing mounting of compatible Bosch IP cameras to external corners, both indoors and outdoors. It provides a safe and robust solution to mount cameras alongside compatible accessories.

Corner mounts compatible Bosch IP cameras
Certified for both indoor and outdoor use
Weather and IK10 impact resistant
Modular design can be combined with other mounting accessories
Weight: 638g
Bosch 3-year warranty

Read full product description

Corner mounts compatible Bosch IP cameras
Certified for both indoor and outdoor use
Weather and IK10 impact resistant
Modular design can be combined with other mounting accessories
Weight: 638g
Bosch 3-year warranty

Read full product description

Hurry! Only left

£83.00

£99.60 inc VAT

Quantity:

Need Help or Advice?

Call us now on 0151 633 2111 or send us a message

Overview of the Bosch NDA-U-CMT corner mount adapter

Corner mount adapter suitable for installation of compatible Bosch IP cameras and accessories onto external corners
Modular design combines effortlessly with other Bosch mounting accessories
Weather resistant finish, suited for installation both indoors and outdoors
IK10-rated for impact resistance

Accessories included

Corner mount
4 x M6 x 20 mm Hex screw
4 x M6 spring washer
4 x M6 washer
4 x 3/8 inch-16 x 1.75 inch Hex screw
4 x 3/8 inch spring washer
Quick Installation Guide

Key technical features of the Bosch pole mount adapter large

Specifications
Dimensions (WxHxD):	188 x 192 x 57 mm (7.4 x 7.6 x 2.2 in)
Weight:	630g (1.41 lb)
Standard colour:	White (RAL 9003)
Construction material:	Aluminium alloy
Environmental
Salt mist:	IEC60068-2-52
Vibration:	NEMA TS2
Shock:	IEC60068-2-27
Impact:	IK10

Product data sheet

Installation Guide
