Bosch Security | NUV-3702-F02

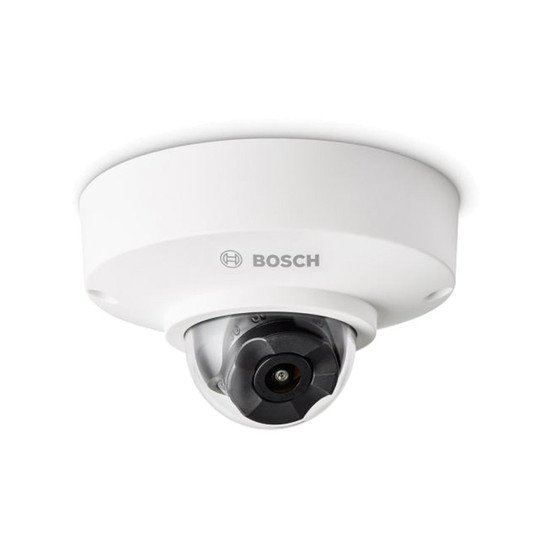

Bosch FLEXIDOME 3100i indoor fixed focal micro-dome IP camera with 2MP sensor, 1080p HD resolution, HDR, deep learning video analytics, H.265 encoding, edge recording and PoE
This compact, entry level mini IP camera is ideal for indoor business applications, available in a range of lens sizes. It captures video in 1080p HD resolution and with IVA Pro Buildings analytics, detects people and vehicles with high accuracy.
- 2MP image sensor for HDTV 1080p resolution video
- Available with 58.5°, 106° or 137° horizontal viewing fields
- IVA Pro Buildings analytics enhances object detection
- Compact design ideal for indoor surveillance
- HDR helps distinguish objects even in difficult lighting
- Bosch 5-year warranty, firmware support until 4 years after EOL
Overview of the Bosch FLEXIDOME 3100i 2MP micro indoor IP camera
- Compact, lightweight and affordable CCTV solution for camera size-conscious businesses
- 2MP image sensor captures detailed video in HD 1080p resolution
- HDR ensures clear video of areas suffering from shadows and high-contrast lighting
- H.265 encoding delivers high-quality video with very low network load
- IVA Pro Buildings video analytics enhanced by deep learning for improved accuracy
Offering high-quality imaging of indoor environments, this micro dome IP camera from Bosch is ideal for small business applications. The compact form-factor and simple setup means it can be installed easily for discreet yet detailed surveillance. Capture footage in HD 1080p resolution up to 30fps for smooth and crisp video, whilst HDR ensures clarity even in areas suffering from diverse lighting conditions.
The camera is equipped with a fixed focal lens available in a range of sizes so you can select the horizontal viewing field best suited for your application. PoE support enables power and network connection over a single cable for simple setup and reduced installation costs. The optional HDMI model features an output port for streaming directly to a display monitor in up to 1080p HD resolution.
Video Analytics
Based on deep learning AI, its IVA Pro Buildings analytics can be used to improve perimeter security and operational efficiency in buildings. It offers accurate real-time detection and classification of persons and vehicles, with minimal false alarms. False alarm triggers such as shadows and vehicle headlights are filtered out so users can focus on important incidents. Detect and count objects encountered in user-defined scenarios such as virtual line crossing, loitering warning and object in area detection. Forensic AI search speeds up footage retrieval for rapid investigation. Whats more, the technology doesn't require calibration so is ready to use straight out of the box.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board microSD Card (Maximum 2TB - not included)
- Bosch Video Management System (BVMS)
- Bosch DIVAR NVRs
- Milestone XProtect video management software
- Eagle Eye Networks
Example Use Cases
- Retail stores - Manage customer flow, count visitors, track dwell time to identify hot-spot areas, claim handling, track and trace, deter aggression, minimise theft, reduce shrinkage, monitor threats i.e break ins, staff training, identify busiest periods to optimise staffing, verify store has been securely locked
- Commercial buildings / offices - Prevent loitering and unwanted dwelling, prevent unauthorised access
- Hotels and hospitality – Monitor entrances and visitors, record check-ins, identify individuals, monitor stairwells
Models available
- NUV-3702-F02 (2.49mm fixed focal, H: 137°)
- NUV-3702-F04 (3.2mm fixed focal, H: 106°)
- NUV-3702-F06 (6mm fixed focal, H: 58.5°)
- NUV-3702-F04H (3.2mm fixed focal, H: 106°, with HDMI output port)
Accessories included
- FLEXIDOME micro 3100i indoor device
- TR15 key
- Mounting sticker
- Quick installation guide
- Safety and security information
- 3 x Installer UX label
Key technical features of the Bosch flexidome 3100i 2MP micro indoor IP camera
Camera |
|
Environment: | indoor |
Type: | fixed dome |
Sensor: | 1/2.8 inch CMOS, 2MP |
Lens: |
NUV-3702-F02:
Lens focal length: 2.49mm Lens aperture: 1.7/F Horizontal field of view: 137° Vertical field of view: 72.8° NUV-3702-F04: Lens focal length: 3.2 mm Lens aperture: 1.6 /F Horizontal field of view: 106° Vertical field of view: 56° NUV-3702-F06: Lens focal length: 6mm Lens aperture: 1.9/F Horizontal field of view: 58.5° Vertical field of view: 31.3° |
Audio: | N/A |
Power: | PoE IEEE 802.3af / 802.3at Type 1, Class 3
3.2 W – 4.5 W |
Imaging |
|
Resolution: | HD 1080p (16:9), 1920 x 1080 to 0.1MP (16:9), 512 x 288 |
Frame rate: | 1 fps – 30 fps |
IR illumination: | N/A |
High Dynamic Range (HDR) | 120dB depending on scene |
Video streaming: | Multiple configurable streams in H.265, H.264 and M-JPEG
Configurable framerate and bandwidth Bosch Intelligent Streaming |
Day/night: | Auto (adjustable switch points)
Colour; Monochrome |
Minimum illumination: | Colour: 0.1 lux |
Remote zoom / focus | N/A |
Functionality: | Mirror image, Rotation 90°; Rotation 180°; Rotation 270° including upright mode; Backlight compensation (BLC); Sharpness enhancement; Intelligent defog; Pixel counter; Saturation; Brightness; Video watermarking; Display stamping; Location |
Analytics |
|
Analysis type: | Intelligent Video Analytics Pro: IVA Pro Buildings |
Alarm triggers: | Any object; Object in field; Line crossing; Enter / leave field; Loitering; Follow route; Counting; Occupancy; Condition change; Similarity search; Objects stopping or starting to move |
Object classes: | Person; Vehicle |
Additional functionalities: | Tamper detection |
Video Management |
|
On-camera recording: | Micro SDHC; Micro SDXC (a memory
card of Class 6 or higher is recommended for HD recording)
32 GB for Micro SDHC; 2 TB for Micro SDXC card |
Network video recorders: | Bosch DIVARs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
Video Management Software: | Bosch Video Management System (BVMS), Milestone XProtect |
Cloud: | Eagle Eye Networks |
General |
|
Alarm I/O connections: | N/A |
Dimensions: | Ø110mm x 66mm (Ø4.33 in x 2.6 in) |
Weight: | 230 g (0.51 lb) |
Casing: | Colour: RAL9003 signal white
IK08 impact-resistant polycarbonate enclosure Bubble material: Clear polycarbonate Coating type: Clear with anti-scratch coating |
Operating temperatures: | 0 °C – 40 °C |
Warranty: | 5-year |
Firmware support to: | 4 years after EOL |
Protocols supported: | IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); LLDP; SOAP; CHAP; Digest authentication |
Conformity: | ONVIF Profile S; ONVIF Profile G; ONVIF Profile T; ONVIF Profile M |
Security |
|
Encryption: | TLS 1.2; AES 256; AES 128; TLS 1.3
Full end-to-end data encryption with supported VMS |
Secure element: | RSA 4096 bit; AES/CBC 256 bit |
Firmware protection: | Signed firmware; Secure boot |
