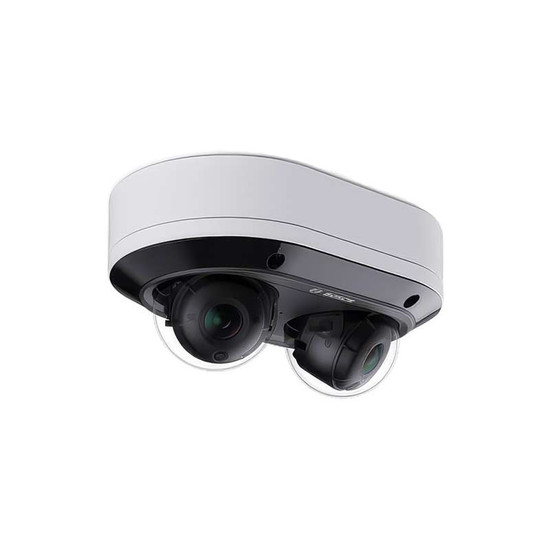

Bosch FLEXIDOME 7100i dual sensor camera with up to 5MP resolution, split IR illumination and IVA Pro analytics

Overview of the Bosch FLEXIDOME 7100i dual sensor camera

• Dual-directional IP camera with two independent sensors up to 5MP resolution
• Starlight X and HDR X technology for full colour video in low-light
• Orientation-based split IR based on the camera installation
• IVA Pro analytics suite delivers AI-based object detection and classification
• Built-in microphone and alarm/audio I/O for sound-triggered alerts

This compact dual sensor camera features two independently operating varifocal lenses offering a cost-effective solution for versatile deployment in environments such as corridors, stairwells and corners. Available in 3MP and 5MP resolution models, each sensor provides a 37° – 104° viewing angle for precise monitoring and reduces the need for multiple cameras in the same area. Capture crisp and detailed images thanks to Starlight X and HDR X technology for minimal motion blur and enhanced clarity even in difficult lighting.

In pitch darkness, orientation-based split IR LEDs provide illumination up to 30m range, automatically configuring based on the cameras installation position. The camera is IP66/67 and IK10 rated for outdoor use and can be installed directly onto walls or ceilings, or fitted to compatible wall mounts using the designated pendant interface plate. Built-in microphone and alarm/audio I/O enable sound-triggered alerts and two-way communication for proactive response to immediate events.

Video Analytics

Featuring IVA Pro Buildings and IVA Pro Perimeter analytics, these preinstalled applications are optimised to improve security and operational efficiency in and around buildings and across perimeters. Using AI-driven algorithms, it can accurately detect and classify objects such as people or vehicles, improving IVA reliability and ignoring false alarm triggers including falling leaves and shadows. Configure alarm rules to meet your surveillance requirements and run scenarios such as virtual line crossing, loitering warning and route traversal. Gather statistical data of counted objects within specified areas and those crossing user-defined virtual lines to aid business performance and efficiency. Review footage quickly and efficiently with AI Forensic Search.

The device also supports additional Bosch analytics applications with the purchase of additional licence keys.

Recording and Video Management

Available recording and video management options for this camera:

• Record directly to on-board microSD Card (Maximum 2TB - not included)
• Bosch Video Management System (BVMS)
• Bosch DIVAR NVRs
• Milestone Video Management Software

Example Use Cases

• Corridors & stairwells - cost-effective deployment solution where multiple cameras are typically required
• Entrance monitoring - Visitor detection, prevent unauthorised access, monitor loitering, minimise vandalism, authorise and confirm deliveries
• Anti-vandalism - deter criminal activity, identify suspicious behavior, early warning of break-ins, prevent unauthorised area access
• Car parks - improve safety and document incidents, count the number of vehicles entering specified areas

Models available

• NDD-7802-AL - Dual dome 2 x 3MP resolution
• NDD-7803-AL - Dual dome 2 x 5MP resolution

Key technical features of the Bosch FLEXIDOME 7100i dual sensor camera
