Bosch Security | NCE-7703-FK
Bosch FLEXIDOME 7100i indoor fixed focal corner camera with anti-ligature design, 6MP resolution, HDR, invisible IR LEDs, built-in microphone and Intelligent Video & Audio analytics
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Designed for use in high-risk and vandal-prone environments, this robust anti-ligature corner camera provides detailed views with no blind spots. A built-in microphone allows audio detection and invisible IR LEDs enables discreet 24/7 surveillance.
- 6MP image sensor for 2816x2112 resolution
- Focal lens for 131° horizontal and 96.5° vertical viewing angles
- Invisible Intelligent IR LEDs enables discreet night vision
- 3 integrated directional microphones for Intelligent Audio Analytics
- Intelligent Video Analytics for accurate object detection
- Bosch 5-year warranty, firmware support until 4 years after EOL

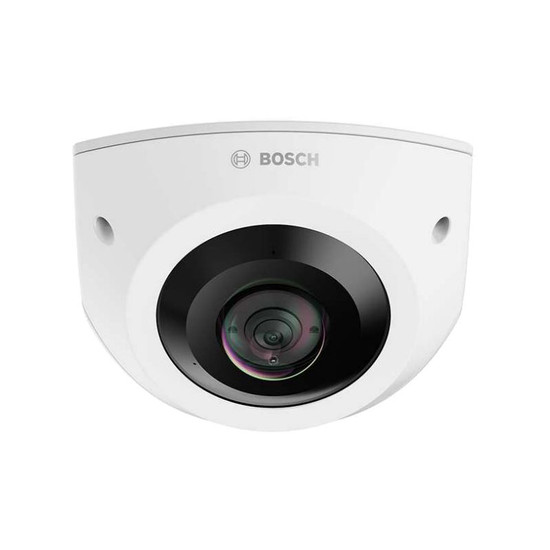

Overview of the Bosch FLEXIDOME 7100i corner indoor IR camera
- 6MP resolution optimised for full room monitoring with no blind spots
- Anti-ligature design with 131° horizontal and 96.5° vertical viewing field
- Discreet 24/7 surveillance in complete darkness with invisible Intelligent IR
- 3 x directional microphones detects audio, enhanced by Intelligent Audio Analytics
- IVA Pro analytics offers accurate object detection and classification

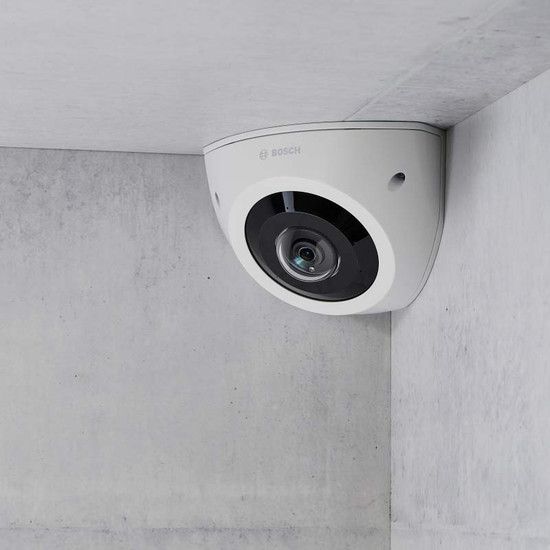

Designed for detailed surveillance in high-risk and vandal-prone areas, this robust corner camera features an anti-ligature design with advanced imaging and audio capabilities. It can be flush-mounted in corners right out of the box, providing a complete view from ceiling to floor with no blind spots. The camera captures sharp, clear video at up to 30fps in 6MP resolution, and maintains image quality in varying lighting conditions with HDR. Invisible Intelligent IR LEDs allow for discreet monitoring up to 15m in complete darkness.
Built to endure tough environments, the camera's IP66 and IK10-rated shell is resistant to harsh weather conditions and even pressure washing. Reliable real-time alerts are triggered through IVA Pro video analytics, enhancing safety and security in challenging settings. Three integrated microphones enable audio detection, and Intelligent Audio Analytics provide detailed sound analysis for comprehensive surveillance.
Video Analytics
The device comes preinstalled with IVA Pro Buildings analytics and IVA Pro Perimeter video analytics, enabling highly reliable detection and classification of people and vehicles using advanced deep learning technology. Users can set customised alarm rules for movement detection and run scenarios like virtual line crossing and loitering warning. The AI algorithms are trained to filter out false alarms caused by shadows and other distractions, ensuring increased accuracy. Additionally, AI Forensic search allows for quick and efficient review of recorded footage.
Intelligent Audio Analytics utilises a three-microphone array to detect and identify sudden loud sounds such as screams or T3/T4 alarms. This edge-based algorithm operates without recording audio, enabling rapid response to real-time incidents while maintaining privacy.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board microSD Card (Maximum 2TB - not included)
- Bosch Video Management System (BVMS)
- Bosch DIVAR NVRs
- Milestone video management software
- Eagle Eye Networks
Example Use Cases
- Healthcare facilities - Safeguarding of patients at risk of harm to themselves or others
- Prison cells and holding rooms - Monitor prisoner behaviour without blind spots where illicit activity could take place
- Lifts and stairwells - Monitor secluded areas prone to vandalism and risk of injury to or safety or people
Accessories included
- FLEXIDOME corner 7100i IR camera
- Corner mount box
- Face plate
- IR cover
- TR20 Allen key for camera installation
- RJ-45 punch-through aid
- 2 x M20 rubber grommets (attached to the camera)
- 3 x MAC address labels
- Quick Installation Guide
- Safety and security information manual
Key technical features of the Bosch FLEXIDOME 7100i corner indoor IR camera
Camera |
|
| Environment: | indoor |
| Type: | anti-ligature corner mounted |
| Sensor: | 1/1.8 inch CMOS, 6MP |
| Lens: | Lens focal length: 2.5mm
Lens aperture: 2.4/F Day/Night: Switchable IR-cut filter Horizontal field of view: 131.1° Vertical field of view: 96.5° |
| Audio: | Integrated microphone array with 3 digital MEMS audio sensors |
| Power: | PoE IEEE 802.3af / 802.3at Type 1, Class 3
5.7 W – 10.5 W |
Imaging |
|
| Resolution: | 2816 x 2112 |
| Frame rate: | 1 fps – 30 fps |
| IR illumination: | Up to 15m (50 ft) |
| High Dynamic Range (HDR) | 120dB depending on scene |
| Video streaming: | 4 configurable streams in H.265; H.264 and M-JPEG; Configurable framerate and bandwidth; Bosch Intelligent Streaming |
| Day/night: | Auto (adjustable switch points)
Colour; Monochrome |
| Minimum illumination: | Colour: 0.0072 lux
Monochrome: 0.014 (0 with IR) lux |
| Functionality: | Flip image; Geolocation; Lens wizard; Region of interest; Audio detection; Backlight compensation (BLC); Intelligent auto exposure; Intelligent dynamic noise reduction; Contrast enhancement; Sharpness enhancement; Pixel counter; Camera view wizard; Tamper detection; Display stamping; Colour hue |
Analytics |
|
| Analysis type: | Camera trainer; Intelligent Video Analytics Pro: IVA Pro Buildings; Intelligent Video Analytics Pro: IVA Pro Perimeter; Intelligent Audio Analytics (license) |
| Alarm triggers: | Any object; Object in field; Line crossing; Enter / leave field; Loitering; Follow route; Idle / removed object; Counting; Occupancy; Crowd density estimation; Condition change; Similarity search; Flow / counter flow; Tampering; 3D tracking; Audio detection; Objects stopping or starting to move |
| Object classes: | Person; Vehicle |
| Additional functionalities: | Tamper detection; Gunshot detection; Loud noises detection; T3/T4 Alarm detection |
Video Management |
|
| On-camera recording: | Micro SDHC; Micro SDXC (a memory
card of Class 6 or higher is recommended for HD recording)
32 GB for Micro SDHC; 2 TB for Micro SDXC card |
| Network video recorders: | Bosch DIVAR NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Bosch Video Management System (BVMS), Milestone XProtect |
| Cloud: | Eagle Eye Networks |
General |
|
| Alarm I/O connections: | 1 x input, 1 x output |
| Dimensions: | 136.5mm (H) x 184.4mm (W) x 202.3mm (D) |
| Weight: | 1.90kg |
| Casing: | Bubble material: Clear polycarbonate, clear with UV blocking antiscratch coating
Colour: RAL9003 signal white Mounting type: Corner mounted |
| Operating temperatures: | -10°C – 50 °C |
| Warranty: | 5-year |
| Firmware support to: | 4 years after EOL |
| Protocols supported: | IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); LLDP; SOAP; CHAP; Digest authentication |
| Conformity: | ONVIF Profile S; ONVIF Profile G; ONVIF Profile T; ONVIF Profile M |
Security |
|
| Encryption: | TLS 1.2; AES 256; AES 128; TLS 1.3
Full end-to-end data encryption with supported VMS |
| Secure element: | RSA 4096 bit; AES/CBC 256 bit |
| Firmware protection: | Signed firmware; Secure boot |
