Bosch DIVAR IP all-in-one 7000 R4 3U BVMS-based video management recorder with up to 256 channels, up to 288TB internal storage capacity and RAID 5

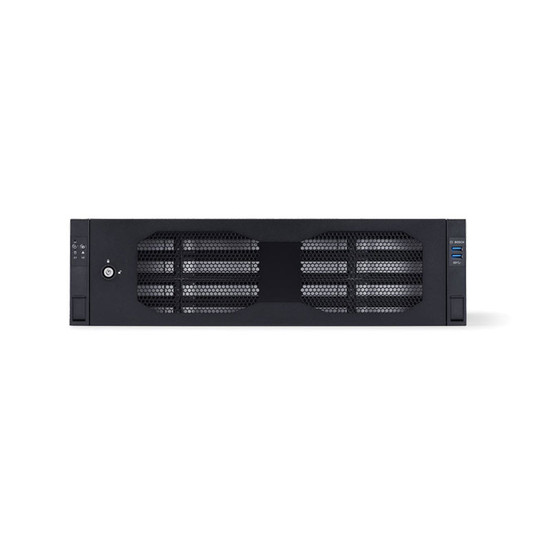

Overview of the Bosch DIVAR IP all-in-one 7000 R4 3U NVR

• 3U rack-mounted video management appliance compatible with Bosch IP cameras up to 4K
• Provides instant video access and system-wide event, alarm and user management
• Optional licencing available to support 64, 128, 192 or 256 camera channels
• 16 x HDD bays for up to 288TB total internal storage capacity
• 550 Mbps recording bandwidth for smooth and detailed footage

Providing a complete, all-in-one solution to video recording and management, this powerful network video recorder combines effortlessly with Bosch network cameras and offers huge compute capacity and resilience for very large camera estates and advanced functionality. Instantly access high-quality live and recorded video, manage alarms, events and user access, with full support for advanced Bosch Video Management System capabilities. Seamlessly manage digital video, audio and data across your IP network with this state-of-the-art device.

NVR

The device features channel licence variants to support either 64, 128, 192 and 256 cameras, and includes 16 x HDD bays for 216TB total internal storage capacity, also supporting RAID5 with a hot spare, with optional preinstalled HDD variants available. RAID5 support increases failover redundancy in case of an HDD failing, keeping your recordings available at all times. Dual HDMI ports enables the connection of multiple external displays in up to 4K UHD resolution. 4 x USB ports (2 x front, 2 x rear) can be used for connecting external devices such as a mouse and keyboard (not included) if required for accessing the VMS platform.

Video Management

When combined with Bosch IP cameras, the feature-rich Bosch Video Management System (BVMS) Plus software offers the most comprehensive user-experience. Gain access to live, real-time video and recordings in an instant, in addition to exporting video, managing alarms and user access, and controlling PTZ cameras all via a single platform. Perform system checks with health monitoring to ensure your network is running smoothly, preventing downtime for time-sensitive installations. Users on-the-go can access camera feeds from mobile devices by using the Bosch Video security application.

Video Analytics

Users can define alarms to receive alerts triggered via video analytics on-board compatible Bosch IP cameras. In addition to basic analytics such as motion and tampering detection, this unit fully supports deep-learning object analytics provided by IVA Pro, when a compatible camera is connected. AI Forensic Search makes it easy to rapidly locate footage of interest for inspection, which can prove crucial for time-sensitive security operations.

Installation

This rack mounted device takes up 3U, and can easily be installed in control rooms, server rooms and offices.

Please note: This Bosch DIVAR does not come supplied with HDDs unless selected. Optional Bosch surveillance-grade hard drives (preinstalled) can be selected from the dropdown menu above for internal storage, or the NVR can be purchased as a drive-less unit to use your own HDDs.

Key features & benefits

• 3U rack mounted design
• NVR supports up to 256 cameras at 4K UHD resolution
• 16 x HDD bays supply up to 288TB total internal storage
• 550 Mbps throughput for consistent and smooth video transmission
• Compatible with all Bosch IP cameras and offers third-party supports via ONVIF
• HDMI ports allows UHD video output
• BVMS Plus video management software enables full access to video
• 4 x USB ports enable use of a keyboard and mouse as well as external storage
• Wizard-based BVMS setup and configuration for simple installation
• Bosch Video Security app enables remote viewing from mobile devices

Typical applications

Providing advanced and reliable recording for up to 256 cameras, this NVR is ideal for mid-sized businesses. Typical applications include department stores, warehouses and factories.

Model variants

• Bosch DIVAR IP all-in-one 7000 R4 3U NVR w/o HDD (DIP-74G0-00N)
• Bosch DIVAR IP all-in-one 7000 R4 3U NVR 16 x 18TB HDD (DIP-74GI-16HD)

Accessories

Included:

• Bosch DIVAR IP all-in-one 7000 R4 unit
• Registration leaflet
• Installation manual
• Labels for storage device trays (numbered 0-16)
• 2 x power supply clamps (for locking power cord)
• 2 x EU power cords
• 1 x front bezel
• 2 x keys
• 2 x rail modules
• 1 x screw pack

Optional:

• Additional camera channel licences
• HDD variants
