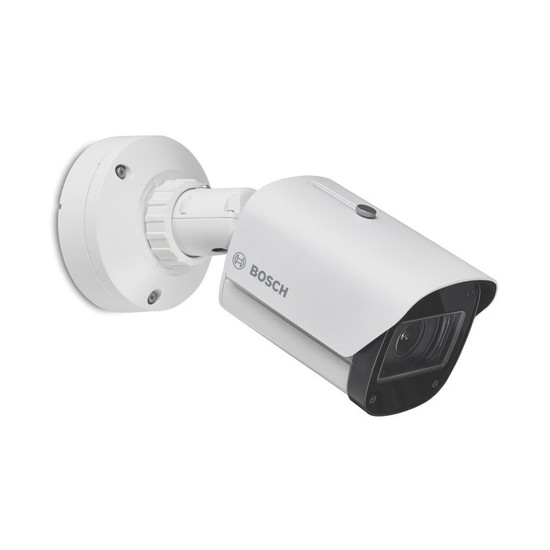

Overview of the Bosch DINION 7100i IR outdoor bullet camera tele lens
- High-performance unit built for 24-hour mission-critical outdoor surveillance from afar
- Telephoto lens for excellent detail at extended distances in 2MP and 4MP resolution variants
- Starlight X and HDR X technology enables full colour video in challenging lighting
- Long range IR illumination up to 140m in complete darkness
- IVA Pro Buildings and Pro Perimeter analytics for enhanced business security
Equipped with a telephoto lens and advanced imaging technologies, this high-performance device enables ultra-detailed around-the-clock surveillance at extended distances even in challenging conditions. Choose from 2MP and 4MP resolution variants, delivering excellent high-definition image quality. The motorised varifocal telephoto P-Iris lens can be fully extended to detect objects within the scene up to 488m away for reliable early warnings. It features cutting-edge Starlight X and HDR X technology for full colour video in poorly lit environments. EIS maintains a steady feed if the unit suffers vibrations caused by harsh weather conditions. Intelligent IR LEDs delivers dynamic long range illumination in complete darkness up to 140m for comprehensive 24-hour surveillance.
Powerful AI-driven video analytics are enabled through dedicated hardware and an embedded processor, supporting advanced machine and deep learning. Reliably detect and classify persons and vehicles in both sterile and crowded scenes for enhanced situational awareness.
The camera can be easily wall mounted without any additional accessories, and its hard-wearing aluminium casing is IP66/67 and IK10 rated offering effective protection against harsh weather and vandalism. Installation and setup is made simple with PoE support and remote view configuration with purchase of the Bosch Wireless Installation Dongle. On-board redundant storage is possible thanks to dual microSD card slots.
Video Analytics
For enhanced building security and operational efficiency, the device comes preinstalled with IVA Pro Buildings and IVA Pro Perimeter video analytics. Using intelligent AI-based algorithms, the unit can reliably detect persons and vehicles with high accuracy, as well as classify cars, buses, bikes and trucks for more detailed metadata, whilst filtering out false alarm triggers caused by shadows and other distractions. Users can set customised alarm rules for movement detection and run scenarios like virtual line crossing and loitering warning, as well as detection of camouflaged or crawling persons. Additionally, Forensic AI search allows for quick and efficient review of recorded footage.
The device can also be used to effectively monitor traffic and vehicle flow with support for Bosch IVA Pro Traffic analytics, through purchase of an additional licence key.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board dual microSD Cards (1TB each - not included)
- Bosch Video Management System (BVMS)
- Bosch DIVAR NVRs
- Milestone VMS
- Eagle Eye Networks
Example Use Cases
- Perimeter and zone protection - Early detection of humans or vehicles at extended distances, configure alarms upon unexpected behaviour, detect crawling and camouflaged persons, visualise objects in colour coded bounding boxes
- Critical infrastructure - Visitor detection, prevent unauthorised access, monitor loitering, minimise vandalism, authorise and confirm deliveries
- Stadiums / airports - enable rapid response to incidents in time-sensitive installations, extended viewing across runways and terminals, capture detail within busy crowds
- Anti-vandalism - deter criminal activity, identify suspicious behavior, early warning of break-ins, document details of perpetrators
- Car parks - vehicle detection, object counting in area, loitering warning within restricted zones
Models available
- Bosch DINION 7100i IR 2MP, 1080p HD resolution (NBE-7702-ALXT)
- Bosch DINION 7100i IR 4MP, QHD resolution (NBE-7703-ALXT)
Accessories included
- Bosch DINION 7100i IR camera
- TR20 key
- Mini screwdriver
- Grommet (IP66)
- Grommet (IP67)
- Quick installation guide
- Safety information
- 3 x Installer UX labels
Key technical features of the Bosch DINION 7100i IR Starlight X bullet camera tele lens
Camera |
|
Environment: | outdoor |
Type: | varifocal bullet |
Sensor: | NBE-7702-ALXT: 1/1.8 inch CMOS, 2MP
NBE-7703-ALXT: 1/1.8 inch CMOS, 4MP |
Lens: |
NBE-7702-ALXT:
Lens focal length: 10.5 mm – 47 mm Lens aperture: F/1.35 - F/1.55 Iris control: P-Iris IR corrected: Yes Day/night: Switchable IR-cut filter Zoom/focus control : Motorised Horizontal field of view: 42° – 9° Vertical field of view: 24° – 5° NBE-7703-ALXT: Lens focal length: 10.5 mm – 47 mm Lens aperture: F/1.35 - F/1.55 Iris control: P-Iris IR corrected: Yes Day/night: Switchable IR-cut filter Zoom/focus control : Motorised Horizontal field of view: 42° – 9° Vertical field of view: 24° – 5° |
Audio: | Line in: 10 kOhm typical; max. 1 Vrms
Line out: 1.5 kOhm typical; 1 Vrms |
Power: | PoE IEEE 802.3af / 802.3at Type 1, Class 3; PoE and auxiliary power can be connected simultaneously for redundant operation
NBE-7702-ALXT: 7 W – 12.95 W NBE-7703-ALXT: 7 W – 12.95 W |
Imaging |
|
Resolution: | NBE-7702-ALXT:
HD 1080p, 1920 x 1080; 1.3MP,1536 x 864; 1.3MP (5:4), 1280 x 1024; HD 720p, 1280 x 720; SD 432p, 768 x 432; SD 480p (4:3), 720 x 480; VGA (4:3) 640 x 480 NBE-7703-ALXT: 4.1 MP 2688 x 1520; HD 1080p 1920 x 1080; 1.3 MP 1536 x 864; HD 720p 1280 x 720; SD 432p 768 x 432; 0.1 MP 512x288 |
Frame rate: | NBE-7702-ALXT::
25 fps, HDR X, 1920 x 1080 (2.1 MP); 30 fps, HDR X, 1920 x 1080 (2.1 MP); 50 fps, 1920 x 1080 (2.1 MP); 60 fps, 1920 x 1080 (2.1 MP) NBE-7703-ALXT:: 25 fps, HDR X, 2688x 1520 (4.1 MP); 30 fps, HDR X, 2688x 1520 (4.1 MP); 50 fps, 2688x 1520 (4.1 MP); 60 fps, 2688x 1520 (4.1 MP) |
IR illumination: | On; Off; Auto; Intelligent IR
NBE-7702-ALXT:: 140 m | 459 ft NBE-7703-ALXT:: 140 m | 459 ft |
High Dynamic Range (HDR) | HDR X; HDR X - Motion Optimized;
HDR X - Optimized DR; HDR X - Extreme DR
NBE-7702-ALXT: 144dB depending on scene NBE-7703-ALXT: 141dB depending on scene |
Video streaming: | 4 configurable streams in H.265; H.264 and M-JPEG; Configurable framerate and bandwidth; Bosch Intelligent Streaming |
Day/night: | Auto (adjustable switch points)
Colour; Monochrome |
Minimum illumination: | Starlight X low-light technology
NBE-7702-ALXT:: Colour: 0.0061 lux, Monochrome: 0.0011 lux, with IR: 0 lux NBE-7703-ALXT:: Colour: 0.0078 lux, Monochrome: 0.0013 lux, with IR: 0 lux |
Functionality: | Backlight compensation (BLC); Contrast enhancement; Sharpness enhancement; Brightness |
Analytics |
|
Analysis type: | Intelligent Video Analytics Pro: IVA Pro Buildings; Intelligent Video Analytics Pro: IVA Pro Perimeter |
Alarm triggers: | Any object; Object in field; Line crossing; Enter / leave field; Loitering; Follow route; Idle / removed object; Counting; Occupancy; Crowd density estimation; Condition change; Similarity search; Objects stopping or starting to move |
Object filters: | Duration; Size; Aspect ratio; Speed; Direction; Color; Object classes (6) |
Additional functionalities: | Tamper detection |
Video Management |
|
On-camera recording: | Dual micro SDHC; Dual micro SDXC; Dual micro SD card up to 2 TB
Mirror (redundant storage); Failover (extended service interval); Extend (maximum retention time); Automatic Network Replenishment |
Network video recorders: | Bosch DIVAR NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
Video Management Software: | Bosch Video Management System (BVMS), Milestone XProtect |
Cloud: | Eagle Eye Networks |
General |
|
Alarm I/O connections: | 2 x input, 1 x output |
Dimensions: | Ø148 mm x 115 mm (Ø5.82 in x 4.52 in) |
Weight: | 2.95kg (6.50 lb) |
Casing: | Aluminum with dehumidifying membrane and waterproof connection area
Colour: RAL9003 signal white |
Operating temperatures: | -40°C — 60°C PoE; -50°C — 60°C 12VDC/24VAC; Up to 74 °C according to NEMA TS 2-2021 |
Warranty: | 5-year |
Firmware support to: | 4 years after EOL |
Protocols supported: | IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); LLDP; SOAP; CHAP; Digest authentication |
Conformity: | ONVIF Profile S; ONVIF Profile G; ONVIF Profile T; ONVIF Profile M |
Security |
|
Encryption: | TLS 1.2; TLS 1.0; TLS 1.1; AES 256;
AES 128; TLS 1.3
Full end-to-end data encryption with supported VMS |
Secure element: | RSA 4096 bit; AES/CBC 256 bit |
Firmware protection: | Signed firmware; Secure boot |
