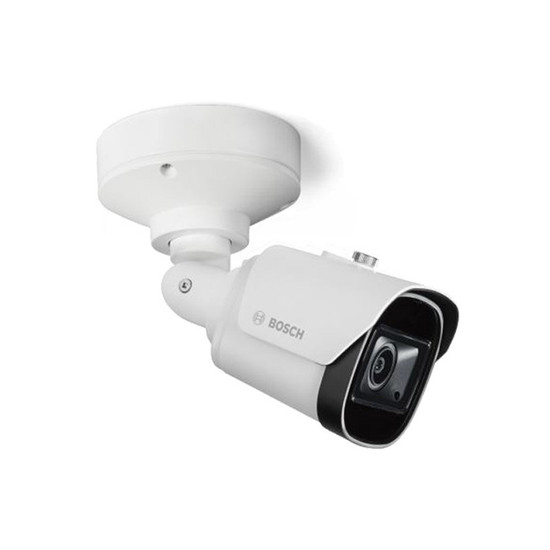

Versatile and outdoor-ready, this affordable bullet camera delivers detailed surveillance of outdoor areas 24-hours a day. It comes equipped with HDR and IR illumination, whilst AI-driven analytics aids business security and operational efficiency.
This versatile and compact bullet IP camera is ideal for around-the-clock surveillance in outdoor environments. The compact, yet resilient, casing houses a 2MP image sensor for smooth HD 1080p resolution video at up to 30fps. You can manually adjust the camera's viewing angle during setup for flexible scene coverage with the varifocal lens. Areas suffering from shadows or bright backlight are optimised with the HDR feature, whilst the camera's integrated IR LEDs enable illumination up to 30m range in complete darkness.
The device has an IP rating of IP66 and is IK10 rated for effective protection against harsh weather and vandalism and comes preinstalled with AI-driven video analytics, aiding general perimeter security and operational effectiveness. Built-in PoE support enables power and data over a single network cable for simple setup and reduced installation costs.
Edge-based video analytics enhanced by AI enable real-time alerts of objects present within the scene. Its IVA Pro Buildings analytics can improve perimeter security and operational efficiency by accurately detecting and classifying persons and vehicles whilst filtering out false alarm triggers such as falling leaves, shadows and animals. Detect and count objects in user-defined scenarios such as virtual line crossing, loitering warning and object in area detection and with orensic AI Search, speed up footage retrieval for rapid investigation. Additionally, the technology doesn't require calibration so is ready to use straight out of the box.
Available recording and video management options for this camera:
Bosch DINION 3100i outdoor 2MP bullet IR camera NBE-3702-AL
Bosch DINION 3100i outdoor 5MP bullet IR camera NBE-3703-AL
Camera |
|
| Environment: | outdoor |
| Type: | varifocal bullet |
| Sensor: | 1/2.7 inch CMOS, 5MP |
| Lens: | Lens focal length: 3.3mm - 10.2mm
Lens aperture: 1.6/F Horizontal field of view: 101° - 30° Vertical field of view: 70°-22° |
| Audio: | N/A |
| Power: | PoE IEEE 802.3af / 802.3at Type 1, Class 3
3.24 W – 7.72 W |
Imaging |
|
| Resolution: | 5MP (4:3), 2592 x 1944, to 0.1MP
(4:3), 320x240
3.8MP (16:9), 2592 x 1456 to 0.1MP (16:9), 512 x 288 |
| Frame rate: | 1 fps – 30 fps |
| IR illumination: | 30m (98 ft) |
| High Dynamic Range (HDR) | 120dB depending on scene |
| Video streaming: | Multiple configurable streams in H.265, H.264 and M-JPEG
Configurable framerate and bandwidth Bosch Intelligent Streaming |
| Day/night: | Switchable IR cut-filter |
| Minimum illumination: | Colour: 0.14 lux
Monochrome: 0.03 lux Minimum with IR: 0 lux |
| Functionality: | Mirror image, Rotation 90°; Rotation 180°; Rotation 270° including upright mode; Backlight compensation (BLC); Sharpness enhancement; Intelligent defog; Pixel counter; Saturation; Brightness; Video watermarking; Display stamping; Location |
Analytics |
|
| Analysis type: | Intelligent Video Analytics Pro: IVA Pro Buildings |
| Alarm triggers: | Any object; Object in field; Line crossing; Enter / leave field; Loitering; Follow route; Counting; Occupancy; Condition change; Similarity search; Objects stopping or starting to move |
| Object classes: | Person; Vehicle |
| Additional functionalities: | Tamper detection |
Video Management |
|
| On-camera recording: | Micro SDHC; Micro SDXC (a memory
card of Class 6 or higher is recommended for HD recording)
32 GB for Micro SDHC; 2 TB for Micro SDXC card |
| Network video recorders: | Bosch DIVARs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Bosch Video Management System (BVMS), Milestone XProtect |
| Cloud: | Eagle Eye Networks |
General |
|
| Alarm I/O connections: | N/A |
| Dimensions: | Ø123mm x 97mm (Ø4.8 in x 9.5 in) |
| Weight: | 1385g (3.08 lb) |
| Casing: | Colour: RAL9003 signal white
IP66 rating IK10 impact-resistant plastic / metal enclosure |
| Operating temperatures: | -30°C – 50 °C |
| Warranty: | 5-year |
| Firmware support to: | 4 years after EOL |
| Protocols supported: | IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); LLDP; SOAP; CHAP; Digest authentication |
| Conformity: | ONVIF Profile S; ONVIF Profile G; ONVIF Profile T; ONVIF Profile M |
Security |
|
| Encryption: | TLS 1.2; AES 256; AES 128; TLS 1.3
Full end-to-end data encryption with supported VMS |
| Secure element: | RSA 4096 bit; AES/CBC 256 bit |
| Firmware protection: | Signed firmware; Secure boot |
Bosch Security | NBE-3702-AL
