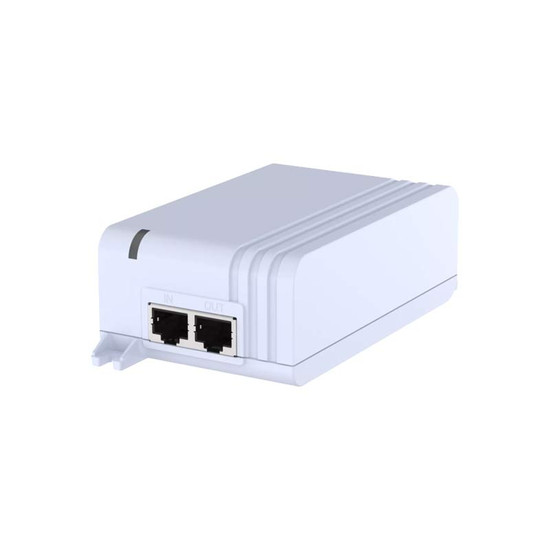

Overview of the AXIS TU8006 1-Port 60w Midspan
The AXIS TU8006 is a single port 60 W midspan, compliant with IEEE 802.3bt and High PoE devices. Power over Ethernet (PoE) offers an easy, fast, and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data into the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure.
Please note: Axis TU6011 Mains Cable is required for power and is sold separately.
Back To TopKey technical features of the AXIS TU8006 1-Port 60w Midspan
Midspan |
|
| Function: | Data and power are fed to a network video product
through an Ethernet cable
Use together with a PoE splitter for a network video product without built-in PoE support |
| Data rate: | 10/100/1000 Mbps |
| Installation and management: | Automatically detects PoE, PoE+ and PoE++ -enabled devices and supplies inline power. |
Data and Power |
|
| Power: | IEEE802.3bt Type 3 Class 6 |
| Input: | AC input voltage: 100 to 240 V AC
AC frequency: 50–60 Hz |
| Output: | 56 V DC (max 60 W) |
| Connectors: | Shielded RJ45, EIA 568A and 568B C14 connector |
| Wiring: | Data provided over pairs 1/2 and 3/6 for 10/100 Ethernet, over all four pairs for Gigabit Ethernet Power provided over data pairs:
1/2 Return and 3/6 + (max 0.535A) 7/8 Return and 4/5 + (max 0.535A) |
General |
|
| Casing: | Plastic
Colour: white |
| Mounting: | Wall mount
Shelf mount DIN rail |
| Displays and indicators: | Port LED |
| Operating conditions: | 60 W: -10 °C to 45 °C (14 °F to 113 °F)
30 W: -20 °C to 55 °C (-4 °F to 131 °F) Humidity 0–90% RH (non-condensing |
| Power consumption: | At 230V AC:
No remote device connected: max 0.15 W 15 W remote device connected: 17.3 W 30 W remote device connected: 32.9 W 60 W remote device connected: 65.4 W |
| Dimensions: | For the overall product dimensions, see the dimension drawing in the datasheet. |
| Weight: | 235 g (0.518 lb) |
| Included accessories: | Midspan, Installation guide |
| Required accessories: | AXIS TU6011 Mains Cable |
| Optional accessories: | AXIS T91A03 DIN Rail Clip A |
| Hardware warranty: | 5-year warranty |
