Axis T91A51 swivel ceiling mount bracket with optional extension poles available

This product is now discontinued, an alternative is the Axis Axis T91B51

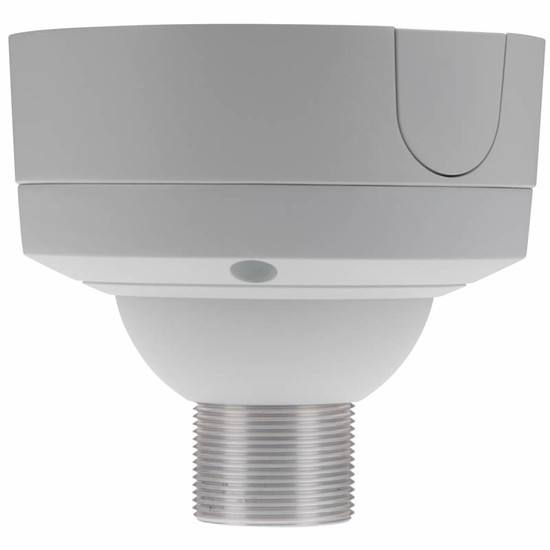

Overview of the 5504-511 Axis T91A51

The Axis T91A51 indoor ceiling mount bracket enables most Axis cameras and housings to be mounted onto a ceiling for optimum area coverage. This bracket can even be installed on sloped ceilings as the ball joint enables the camera to swivel to achieve the correct positioning. This ceiling mounting bracket from Axis is an ideal solution for when the camera needs to be as close to the ceiling as possible. Cables are routed through cable conduit holes for safe and neat cabling and the 1.5 NPS thread provides compatibility for Axis cameras, housings and mounts supporting the same thread.

A choice of extension poles can be connected to the T91A51 to lower the camera from the ceiling if required. 30cm and 100cm are available to buy separately (please select from above drop down menu if required).

Key technical indicators

• Maximum load: 10kg
• Pivot angle: 45°
• Cable routing: cable conduit holes
• Environment: indoor
• Approvals: IEC/EN/UL 60950-1, IEC/EN 62262 IK10, EN 50581
• Weight: 1.2kg
• Dimensions: height 127mm, width 156mm
• Warranty: 3 years

Compatibility

• Axis P55/Q60 Series (requires Axis T94A01D)
• Axis M50 Series (requires Axis T91A05)
• Axis fixed cameras (requires Axis T91A05)
• Axis P33 Series (requires P33 pendant kit)
• Axis M32 Series, Axis P3301/-V, Axis P3304/-V (requires Axis 216FD pendant kit)
• Axis M3006-V
• Axis M3007-P/-PV
• Axis M3024-LVE
• Axis M3025-VE (requires Axis T94F01D)

Typical applications

The Axis T91A51 ceiling mount bracket is ideal for mounting a CCTV camera when an indoor ceiling height is limited, for example a parking garage.

Accessories

Included:

• Installation guide
• Axis T94H01P conduit black box

Optional:

• Axis T91A52 extension pipe 30cm
• Axis T91A52 extension pipe 100cm
• Axis extended warranty
