| 5013-161

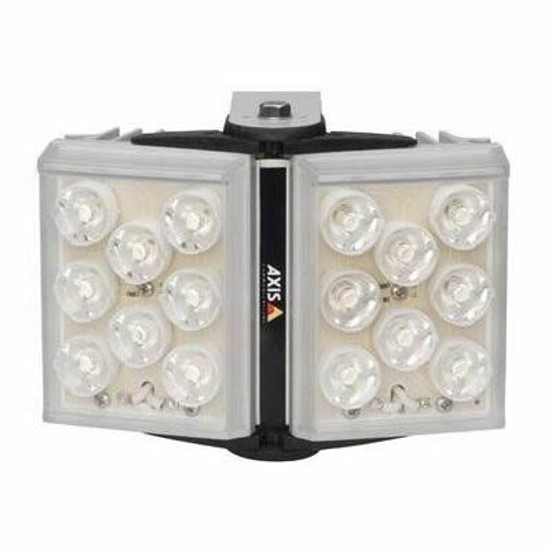

Axis T90A16 vandal resistant, IP66-rated white light LED illuminator, 14 m coverage

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left


This product has now been discontinued. Alternative products are available from Illumination.

Overview of 5013-161 Axis T90A16

The Axis T90A16 is a white light illuminator with the ability to disperse white light at an angle of 50° over a distance of 14 metres (46 ft). This illuminator is suitable for use in situations where 24 hour security is required and light pollution restrictions do not apply.

Unlike infrared illuminators, a white light is the optimal substitute for natural daylight and may also deter trespassers. The Axis T90A16 is also highly energy efficient. Using surface mount technology, a solid mount is provided for LEDs, expanding the product lifespan to up to 10 years.

The LEDs are IP66-rated and vandal resistant, making them impervious to attack from blunt instruments and air rifle shots in addition to dust, rain, and temperatures as low as -50°C.

Key features & benefits of 5013-161 Axis T90A16

  • White light provides excellent substitute for natural light
  • Fully functional in extreme conditions
  • Solid surface mount for LEDs ensures 10 year lifespan
  • IP66-rated, vandal resistant LEDs

Typical applications of 5013-161 Axis T90A16

This product is ideally used in areas requiring 24 hour monitoring without any light pollution restrictions. Examples of such areas include garage forecourts, private properties and gated communities

Accessories for 5013-161 Axis T90A16

Included:

  • U-bracket
  • Power supply with adjustable photocell
Back To Top


Key technical features for 5013-161 Axis T90A16

General
Environment:indoor/outdoor
Power:100-240 V AC (auto-sensing) – adjustable power output for the LED and telemetry control
Dimensions:75mm (W) x 100mm (H) x 54mm (D)
Power Consumption:15 W
Cable length:2.5 m (8 ft)
Angle:50°
Distance:14 m (46 ft.)
Operating temperatures:-50 - 50 °C (-58 - 122 °F)
