| 5030-231

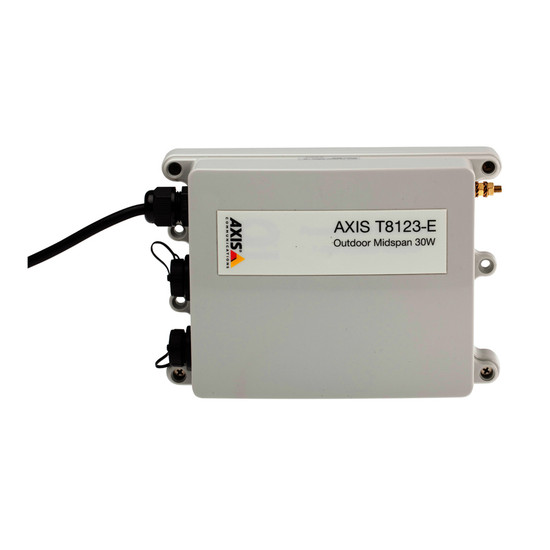

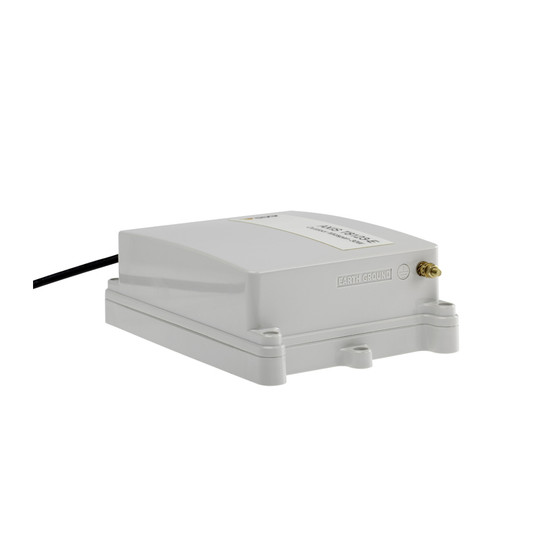

Axis T8123-E outdoor-ready PoE+ midspan 30W 802.3at, 1-port

Free delivery on mainland UK and most EU countries Check delivery charges to where you are.
Hurry! Only left


This product is discontinued, for alternative models please see Power Over Ethernet

Overview of the Axis T8123-E DC 30W Midspan (1-Port)

This outdoor-ready Power-over-Ethernet (PoE) midspan enables a single Axis network device to receive data and up to 30W of power over standard Ethernet cable - removing the need for a local power source. Compatible with both IEEE802.3af and 802.3at power standards, the unit is also IP66-rated for safe and reliable operation in external environments.

The device features data throughput speeds of 10, 100 and 1000MBps, and can operate in temperatures as low as -40°C - making it ideal for use within exposed, outdoor locations. Installation of the midspan is simplified as power is provided over existing Ethernet infrastructures. Additionally, it also features built-in surge protection for both the AC and PoE ports ensuring indoor equipment is protected from outdoor surges.

Please note: for IP cameras without PoE support, a separate splitter is required.

Key features & benefits

  • Capable of delivering up to 30W of power to Axis network devices through the Ethernet connection
  • Compatible with both IEEE802.3at and IEEE802.3af Power-over-Ethernet standards
  • IP66-rated casing enables durable indoor or outdoor use
  • Shielded RJ45 connectors for straightforward installation to mains cable and IP device
  • Able to operate in temperatures ranging from 55°C to -40°C
  • Power, data and video inputs are protected by built-in surge suppression
  • Gigabit network speeds ensure no data bottlenecks
  • Provides safe and reliable power over existing Ethernet infrastructures
Back To Top


Key technical features for the Axis T8123-E

PoE midspan
Number of ports: 1
Data rates: 10/100/1000 Mbps
Power input: Power over Ethernet Plus (PoE+) IEEE 802.3at Type 2 Class 4
Power output: 55 V DC (max 30 W)
Power standards: IEEE 802.3 at
Connectors: shielded RJ45, EIA 568A and 568B
Wiring: data provided over pairs 1/2 and 3/6 for 10/100 Ethernet, over all four pairs for Gigabit Ethernet, power over spare pairs 4/5 (+) and 7/8 (-)
Operating temperatures: -40 °C to 55 °C (-40 °F to 131 °F)
Mounting methods: wall or pole (mount not included)
Dimensions: 95mm (H) x 280mm (W) x 230mm (D)
Weight: 1kg
Warranty: 3 years
Approvals:

RoHS, REACH, WEEE, CE, EN 55022 Class B, EN 55024, EN 61000-4-5, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, CQC, CCC, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, GS, CB, KC, S-mark, IEC/EN 60529 IP66, NEMA 250 Type 4X, ASTM B-117, GR-1089-CORE, ITU-T
