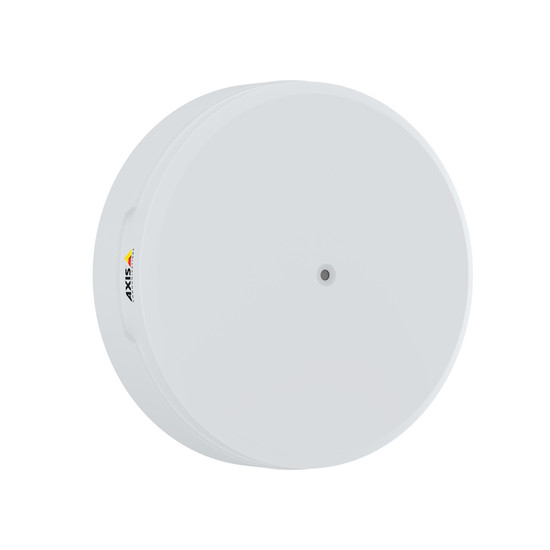

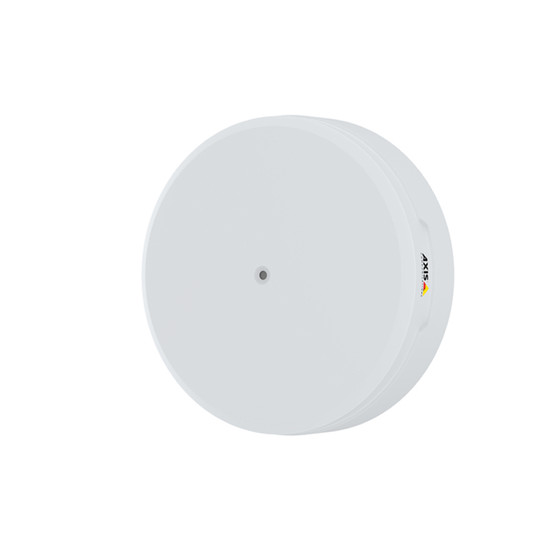

Axis T6112 audio and I/O interface with built-in microphone
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
- Unobtrusive enclosure
- Integrated omnidirectional microphone
- Audio and I/O support for Axis IP cameras
This product is discontinued, for alternative models please see I/O Devices
Overview of the Axis T6112
This compact audio and I/O interface features an omnidirectional microphone and allows two-way audio and I/O connectivity to be used by an Axis IP camera without these functionalities ‘built-in’ (please check datasheet for model compatibility). With the unique feature of portcast technology, this device uses the connected camera's IP address to provide 'seemingly' camera-integrated audio and I/O functionality - enabling audio and video in a single stream over the network.
The addition of two-way audio support provides users with the ability to hear activity or deliver verbal warnings to those within the scene. In addition, external sensors and detectors can be connected via the supervised digital I/O ports to help enhance alarm signalling and will also trigger an alert if connection to the devices is cut.
Installation is straightforward using Power-over-Ethernet (PoE) and integration with an existing video management software (VMS) is seamless. Additionally, the unit’s non-invasive casing can be easily mounted onto walls or ceilings – for unobtrusive surveillance of exposed locations.
Please note: this product does not come with a power supply, please select from the above dropdown menu if required.
Key features & benefits
- Provides audio and I/O support for Axis network cameras that do not have this functionality 'built-in'
- Integrated omnidirectional microphone enables communication between the user and scene
- Portcast technology merges audio and I/O functionality with the camera - delivering audio and video in one stream
- External sensors and relays can be connected to the I/O ports to trigger alarms or actions
- Supervised digital I/O ports can trigger an alert if the connection is lost
- Non-invasive enclosure can be mounted on wall or ceiling - for unobtrusive CCTV surveillance
- PoE support delivers power and network connectivity over a single cable
- Additional IP address (operates as an in-line device) or VMS licences are not required
Accessories
Included:
- Installation guide
- Mounting bracket
- I/O connector
Key technical features of the Axis T6112
|
Audio and I/O interface
|
|
|
Audio
|
|
| Audio streaming: | two-way |
| Audio input/output: | external microphone input or line input, line output |
|
I/O Interfaces
|
|
| I/O functionality: | two configurable supervised inputs/digital outputs, 12 V DC output, max load 50 mA |
|
Microphone
|
|
| Frequency range: | 100 Hz to 10,000 kHz |
| Sensitivity: | -28 dB (relative: 1 V/Pa) |
| Max SPL, peak before clipping: | 119 dB |
| SNR: | 80 dB at 1 kHz, A-weighted |
| Directionality: | omnidirectional |
|
System integration - with supported camera
|
|
| Analytics: | audio detection |
| Event triggers: | analytics, supervised external input |
| Event actions: | external output activation, audio recording to edge storage, play audio clip |
|
Connectors
|
|
| Power-over-Ethernet in: | RJ45 10BASE-T/100BASE-TX |
| Power-over-Ethernet out: | RJ45 10BASE-T/100BASE-TX |
| I/O: | 4-pin 2.5 mm terminal block |
| Audio: | 3.5 mm mic/line in, 3.5 mm line out |
|
General
|
|
| Casing: | polycarbonate casing, encapsulated electronics |
| Mounting: | connected anywhere between switch and camera, max. total distance using a CAT5 cable: 100m |
| Display and indicators: | status LED |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 or 3 (selectable), AXIS T6112 feeds power to the camera |
| Operating conditions: | -40°C to 50°C |
| Dimensions: | 40mm ø 135mm |
| Weight: | 0.23 |
| Approvals: | EMC EN 55032 Class B, EN 55024, EN 61000–6–1, EN 61000–6–2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KC KN32 Class B, KC KN35 Safety IEC/EN/UL 62368-1 Environment IEC 60068–2–1, IEC 60068–2–2, IEC 60068–2–14, IEC 60068–2–78, IEC 60068–2–6, IEC 60068–2–27 IEC/EN 62262 IK08 |
| Security: | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralised certificate management |
| Supported protocols: | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Warranty: | 5-year warranty |
